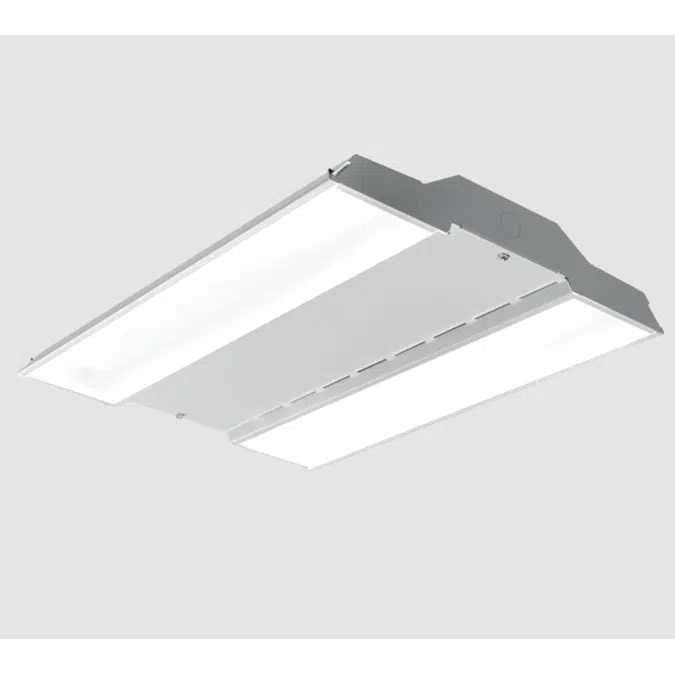

GS SLIM HIGH BAY

FEATURES

Available on QuickShip
Ultra-low 2-9/16" fixture depth
Optimized for single-person installation
Up to 55ºC ambient rating
Multiple shielding and distribution options
High-performance up to 155 lm/W
Micro-prismatic lens reduces glare
Energy-saving alternative designed to replace traditional HID or fluorescent high bays
Non-EM fixtures are shipped in 2-packs to reduce job-site waste
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
DLC Compliant
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Opis

Housing	Die-formed aluminum housing.
Shielding	Clear or micro-prismatic acrylic lens.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	45°C maximum ambient operating temperature standard. 55°C maximum ambient operating temperature when specified with HA option, lumen restrictions apply.

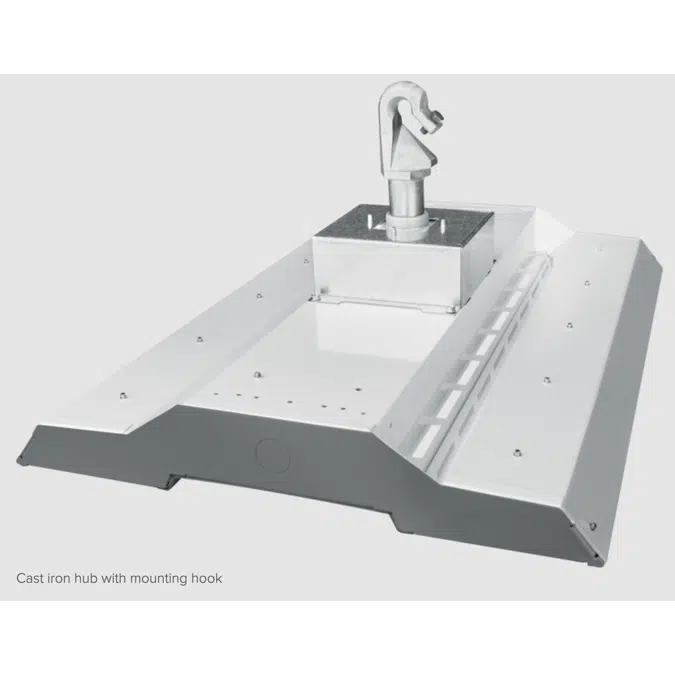

Mounting	Suspended. Surface mount kit available. Indoor applications only. Fixture weight is 6.5lbs for 2′ and 13lbs for 4′ unit, options may increase weight.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
