CENTERLIFT 9600HC
CENTERLIFT 9600HC
CENTERLIFT 9600HC
CENTERLIFT 9600HC
CENTERLIFT 9600HC
    Granberg

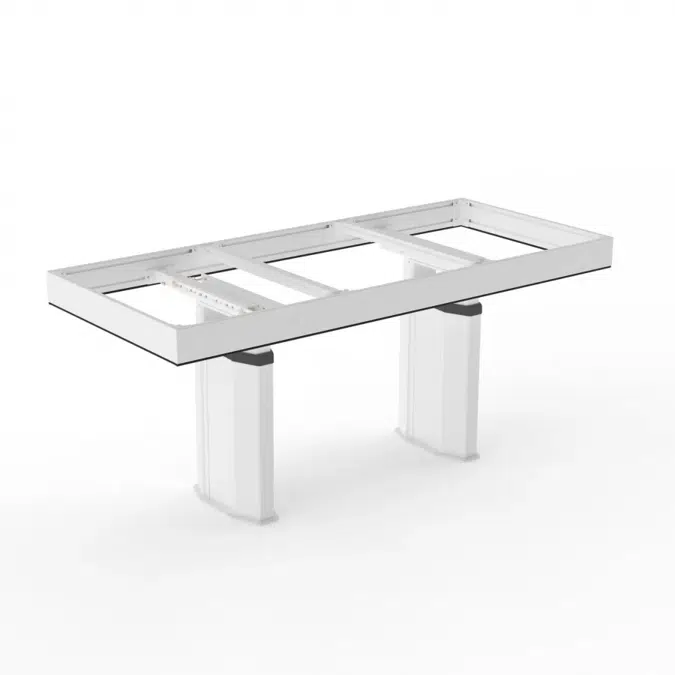

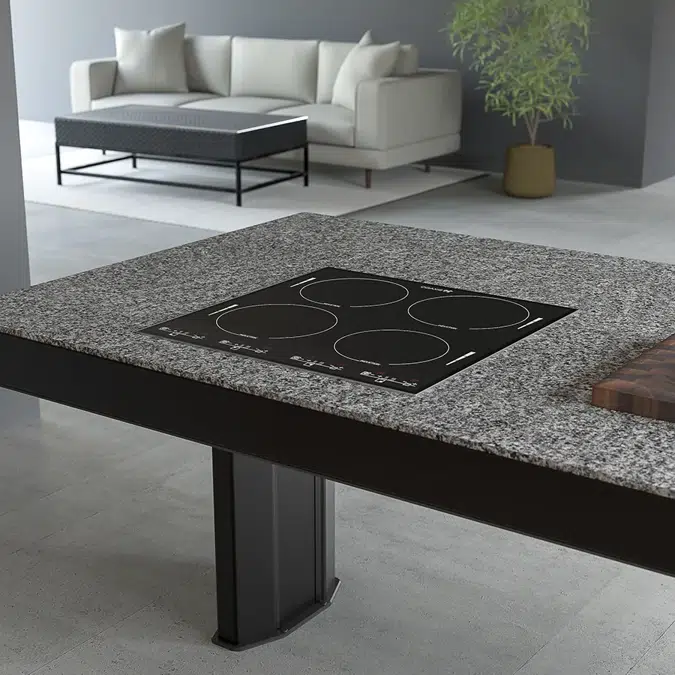

    CENTERLIFT 9600HC

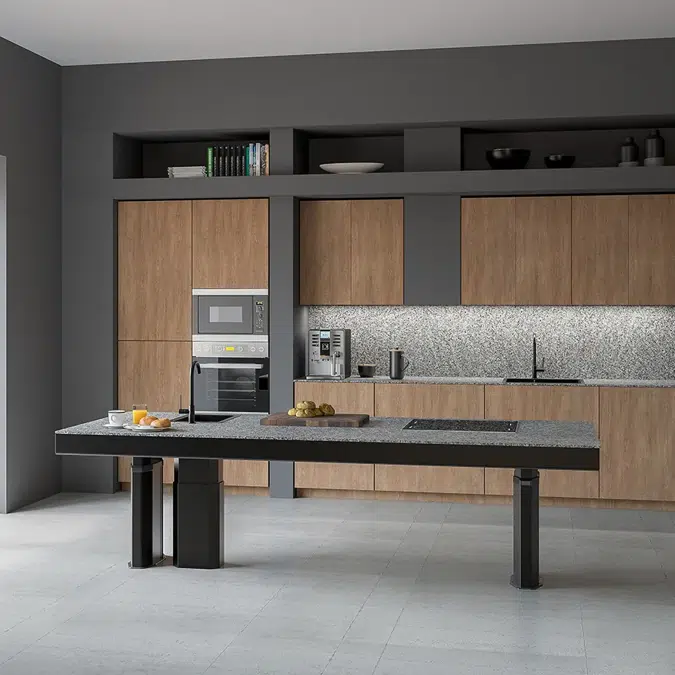

    Both tall and short people work in the kitchen and everyone needs different working heights. Moreover, different kitchen chores require different working heights. CENTERLIFT 9600H creates a kitchen in which everyone can work comfortably while also providing a natural hub in the kitchen where people can gather, on an ordinary weekday or on festive occasions.

    The lifting system can be integrated with kitchens from any kitchen manufacturer.

    Functions and Advantages
    • Motorised kitchen island lift
    • Height-adjustable 700-1100 mm above floor (excl. worktop)
    • 200 kg lifting power
    • The sides are adjustable sideways to suit the sink and hob
    • Integrated safety switch
    Useful information
    • Fittings for worktop enclosed

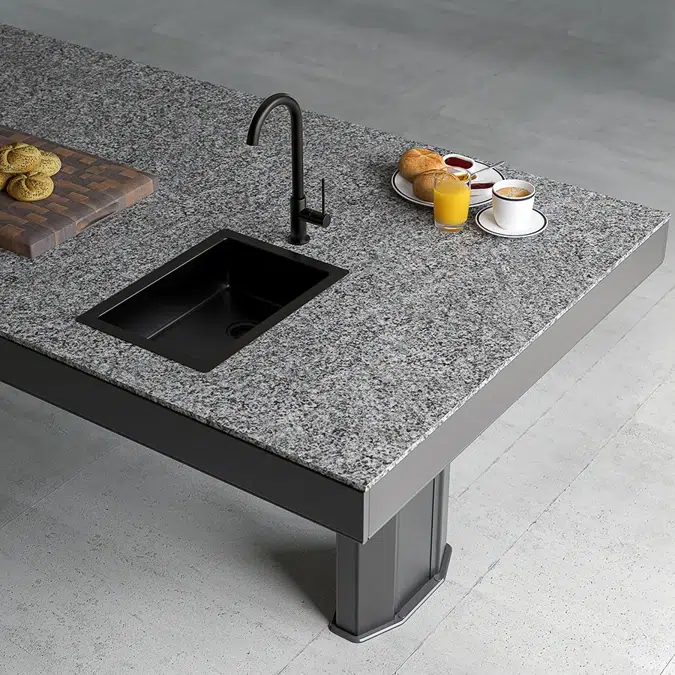

    • Sink bowls with a maximum height of 120 mm can be integrated
    • Electronics and motor system Plug and Play
    • The position of the motors is adjustable to the side (then screwed into the floor)
    Opis
    • Frame depth
      780 mm

      Frame width
      1180 - 2780 mm

      Depth worktop
      800 mm

      Width worktop
      1200 - 2800 mm

      Installation
      Floor mounted

      Height adjustment
      Motorised, steplessly adjustable 400 mm
      (700-1100 mm excl. top board)


      Speed level
      30 mm/sec.

      Operation
      Corded button or radio control


      Safety
      The safety strip is placed under the frame. If anything touches the safety strip, the lifting unit stops


      Electrical connection
      2 x Plugs for 230 V, max 5A

      Plumbing connections
      Connection is made with flexible hoses

      Lifting force
      200 kg

      IP-class
      IP 20

      Front height
      103 mm

      Delivery modules
      Worktop incl. safety switch, motors


      Fittings supplied
      Bracket for fronts and top board

      Material
      Aluminium frame

    Specyfikacja techniczna
    • Nr referencyjnym1142
    • Rodzina produktuAccessible Kitchens
    • Grupa produktuLifting Systems for Kitchen Islands
    • TypObiekt (jeden obiekt)
    • Data publikacji2025-12-08
    • Numer edycji1
    • Głębokość (mm)780
    Dodatkowe informacje
    • Materiał głównyAluminium
    • Materiał dodatkowyStal
    Klasyfikacja
    • Kategoria BIMobjectKuchnia - Kuchnia - pozostałe
    • Klasyfikacja IFCObiekt
