Alcon Lighting

Cylinder LED Pendant Light

Alcon Lighting’s 12303 cylinder LED pendant light delivers precision downlighting for commercial, residential and architectural interiors. The 3-inch cylinder features a sleek, damp-location rated housing with 90 CRI illumination. Color temperature options include a set temperature or glow dim mode, dimming from 3100K to 2000K. Compatible with 3-wire ELV, 2-wire incandescent and 5-wire 0-10V dimmers, this suspended lighting solution provides versatile, high-quality illumination for offices, retail spaces, hospitality interiors and modern residential applications.

Opis

Construction: Spun aluminum housing

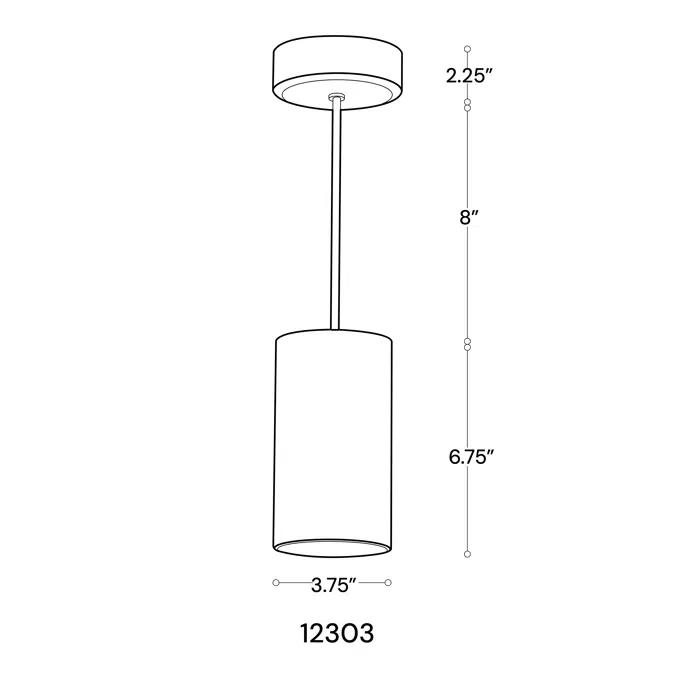

Cylinder: D 3.75", H 6.75"
Canopy: D 4.375", H 2.25"

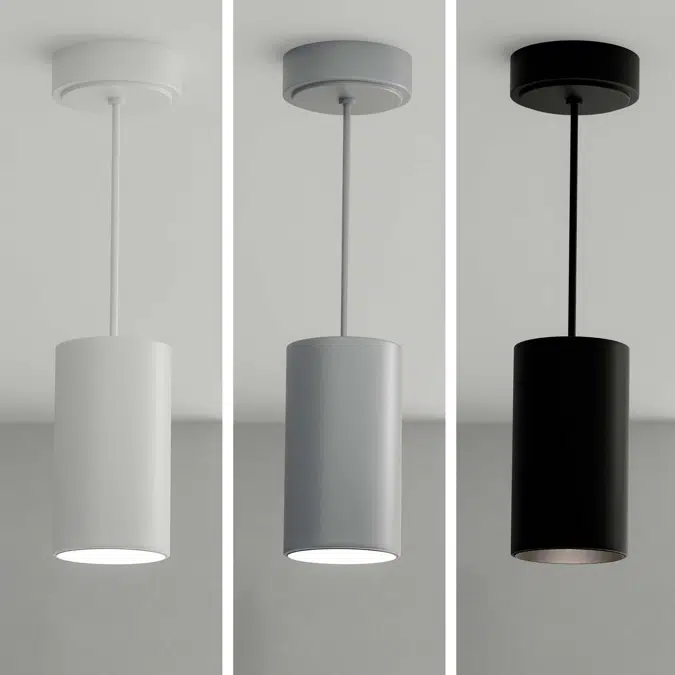

Finish: White, silver, black
Regressed depth: Approx. 1/2"
Beam spread: 70° flood installed, 38° narrow flood, 27° spot included
Mounting: 8' field-adjustable aircraft cable or 12" stem standard, specify in 12" increments up to 84"
Lumens: 1500 lm nominal. Warm Dimming 1300 lm
Wattage: 30W
Color temperature (CCT): Static CCT of 2700K, 3000K, 3500K or 4000K. Warm dimming (2000K–3100K)
Voltage: 120-277V 50/60 Hz
Driver: 120-277V (Universal)
Power factor: >0.9
THD: <20%
Operating temperature: -4°F to 104°F (-20°C to +40°C)
CRI: 90+
Life: 50,000 hours (L70)
Warranty: 5 Years carefree for parts & components (labor not included)
Listings: cULus listed for damp locations, Title 24 JA8-2022, FCC, Assembled in USA

Specyfikacja techniczna

Nr referencyjny12303-cylinder-pendant-light
Rodzina produktuIndoor Lighting
Grupa produktuPendant Lighting
TypObiekt (jeden obiekt)
Data publikacji2025-11-21
Numer edycji1

Linki

Url produktuhttps://alconlighting.com/12303.html
Instrukcja montażuhttps://www.alconlighting.com/media/product_files/alcon_lighting/12303-Pendant-Mount-Instructions.pdf
Opis technicznyhttps://www.alconlighting.com/media/product_files/alcon_lighting/12303-Specification-Sheet.pdf

Klasyfikacja

Kategoria BIMobjectOświetlenie - Oświetlenie sufitowe - wiszące
