Wind-Driven Rain Louver - 6" Deep - 45 Degree Vertical Blade - Extruded Aluminum - ECV-645

Extruded Aluminum Louver
6" Deep - Vertical Blade

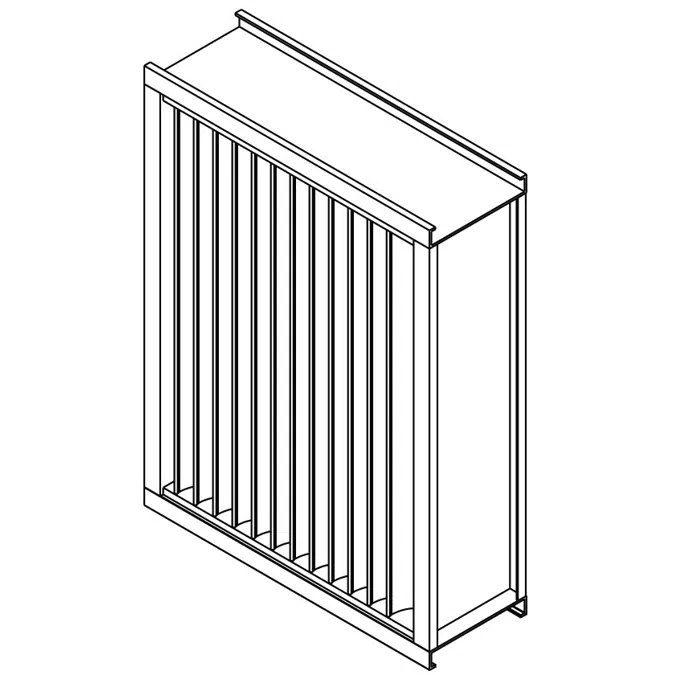

The ECV-645 offers exceptional protection against wind-driven rain under the most severe conditions and is ideally suited for high wind areas or applications that are sensitive to wind-driven rain penetration. The ECV-645 incorporates vertical blades and is available in a wide array of anodized and painted finishes including custom color matching.

Spesifikasjon

Standard Construction
Material: Mill finish 6063-T5 extruded aluminum.
Frames: 6" deep x 0.081" thick (152 x 2) channel.
Blades: 45^o x 0.081" (2) thick vertical style.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Mullion: Visible.
Minimum Size: 12" x 12" (305 x 303)
Maximum Size:
Single Section:
60" x 120" (1524 x 3048) or 120" x 60" (3048 x 1524)
Multiple Section: Unlimited

Ratings
Free Area: 7.4 ft² (0.68 m²)
Performance @ Beginning Point of Water Penetration
Free Area Velocity: 1250 fpm (6.35 m/s)
Air Volume Delivered: 9250 cfm (4.4 m³/s)
Pressure Loss: 0.15 in. wg. (37 Pa)
Velocity @ 0.15 in. wg. Pressure Loss: 1270 fpm (6.4 m/s)
Design Load: 30 psf
AMCA 540 and 550 Listed
AMCA Certification for Water Penetration, Air Performance and Wind-Driven Rain

Tekniske spesifikasjoner

Unik ref.Wind-Driven-Rain-Louver-6-Deep-45-Degree-Vertical-Blade-Extruded-Aluminum-ECV-645
ProduktfamilieHVAC
ProduktgruppeLouvers and Penthouses
TypeObjekt (enkelt objekt)
Utgivelsesdato2024-07-16
Utgavenummer1

Lenker

Produktets nettadressehttps://www.pottorff.com/product/details/218

Klassifisering

BIMobject kategoriVVS - Kanaler
Uniclass 2015 kodePr_30_59_48
Uniclass 2015 beskrivelseLouvres and components
CSI MasterFormat 2014 kode08 91 00
CSI MasterFormat 2014 tittelLouvers
OmniClass-nummer23-33 29 31
OmniClass-tittelLouvre Dampers
