    Elkay

    LZS8WSLP Elkay Enhanced Bottle Filler & Single ADA Cooler Refrigerated Light Gray Granite High Capacity Lead Drop Down Wrapper

    LZS8WSLP Elkay Enhanced ezH2O® Bottle Filling Station & Single ADA CoolerFiltered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallonsper hour) of 50 degrees F drinking water, based on 80 degrees F inlet water and 90 degrees Fambient, per ASHRAE 18 testing. Features shall include Antimicrobial*,Automatic Filter Status Reset, Energy Savings, Filtered, GreenTicker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle FillerSensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No.120.

    Compliance:

    • ADA & ICC A117.1
    • ASME A112.19.3/CSA B45.4
    • CAN/CSA C22.2 No. 120
    • GreenSpec
    • NSF 372 (lead free)
    • NSF 42
    • NSF 53
    • NSF 61
    • UL 399
    • FCC & ISEDNSF 401

    Features:

    • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)

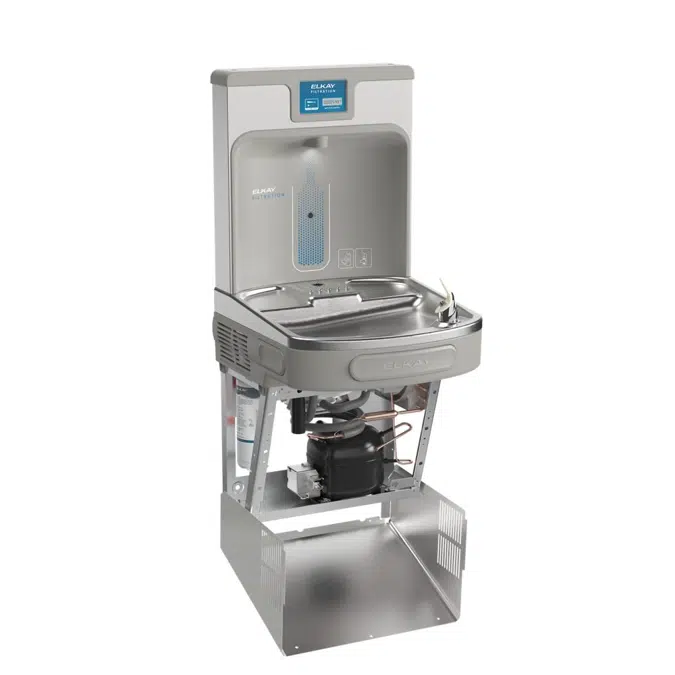

    • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
    • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
    • Visual filter monitor with LED filter status indicator. Fillsafe recognition automatically recognizes new filter and updates LED light back to green
    • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulates, chlorine taste and odor reduction
    • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
    • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
    • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
    • Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways
    • One-box packaging so the cooler and bottle filler ship together

    Keywords: Ezh20 Bottle Filling Station, elkay water bottle filler, water fountain, drinking fountain with bottle filler filter replacement, water fountain filter reset, elkay ezh2o replacement filter, water cooler with bottle filler, elkay ezh20 filter, elkay water filler, elkay drinking fountain pressure adjustment, drinking fountain cartridge

    Spesifikasjon

    Tekniske spesifikasjoner
    • Unik ref.LZS8WSLP
    • ProduktfamilieBOTTLE FILLING STATION
    • ProduktgruppeEZ Family
    • TypeObjekt (enkelt objekt)
    • Utgivelsesdato2022-08-19
    • Utgavenummer3
    • Høyde (tommer)39.46
    • Bredde (tommer)19
    Relatert
    • Produsert iUSA
    • Nettovekt (pund)74
    Klassifisering
    • BIMobject kategoriSanitær - Drikkefontener
