Z1201-H EZCarry® High Performance Adjustable Horizontal Siphon Jet Hub and Spigot Water Closet Carrier System
Z1201-H EZCarry® High Performance Adjustable Horizontal Siphon Jet Hub and Spigot Water Closet Carrier System
Z1201-H EZCarry® High Performance Adjustable Horizontal Siphon Jet Hub and Spigot Water Closet Carrier System
Z1201-H EZCarry® High Performance Adjustable Horizontal Siphon Jet Hub and Spigot Water Closet Carrier System
    Zurn

    Z1201-H EZCarry® High Performance Adjustable Horizontal Siphon Jet Hub and Spigot Water Closet Carrier System

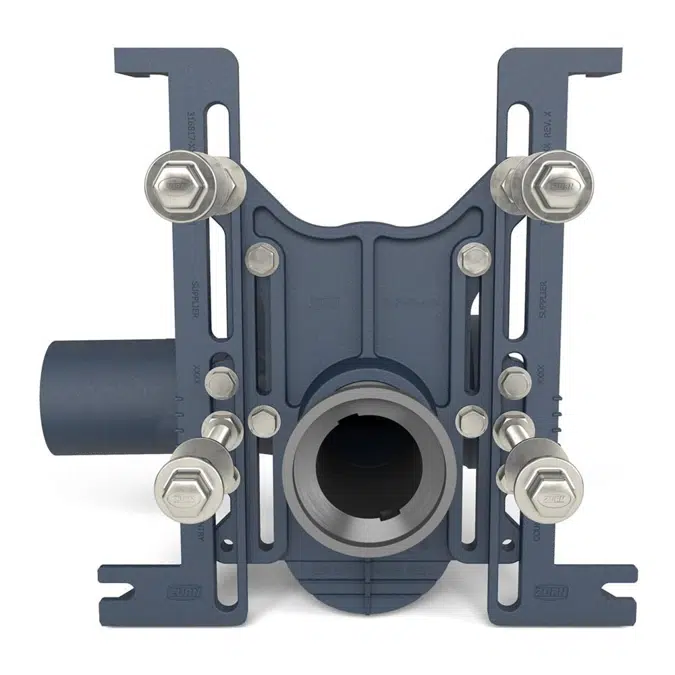

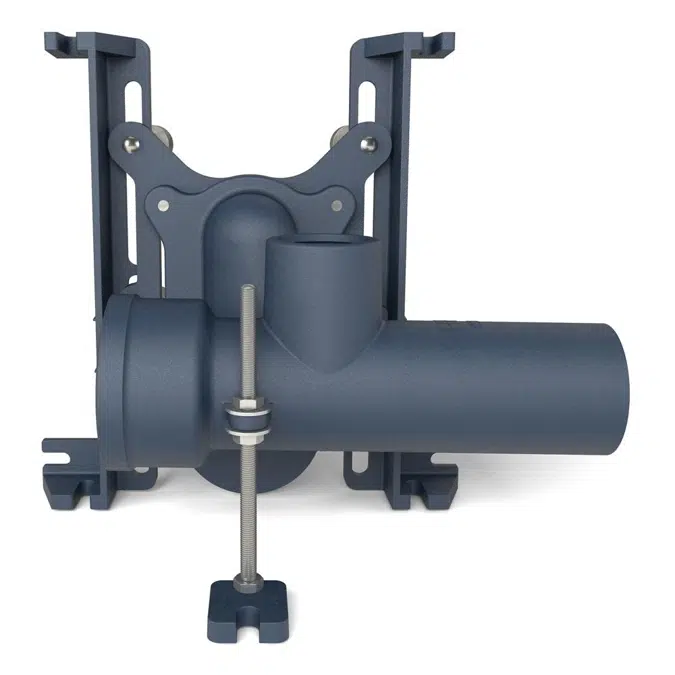

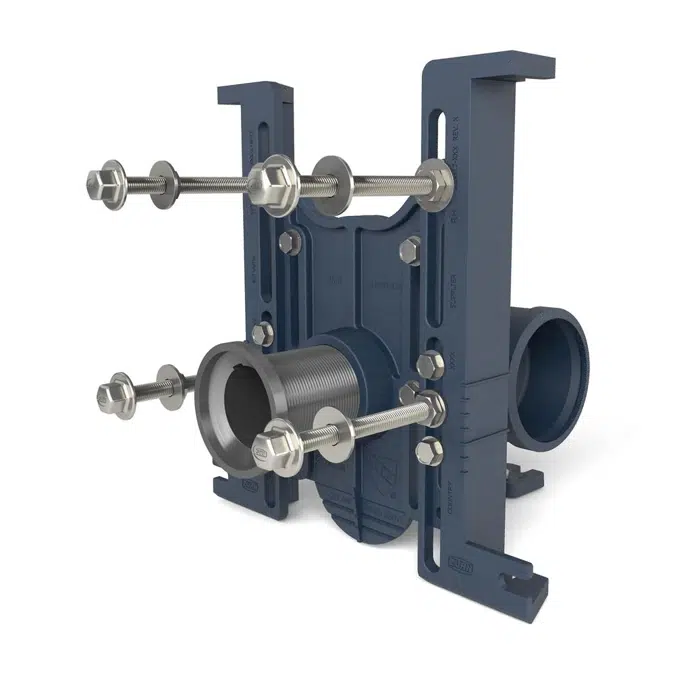

    EZCarry® horizontal siphon jet water closet carrier system with high performance waterway and 4” [102mm] hub and spigot connections. System includes Dura-Coated cast iron main fitting with hydro-mechanically optimized sweep and extended 2” [51mm] vent, adjustable faceplate, QuickFit™ faceplate gasket, floor mounted pre-fab slotted foot supports with top anchoring pre-fab support base, heavy-duty 1/2” [13mm] rear anchor tie down, fixture bolts, trim, stud protectors, bonded “Neo-Seal” gasket, and corrosion resistant, adjustable 3” [76mm] dia. X 6” [152mm] coupling with integral test cap designed to increase flow velocity and line carry. EZCarry® system complies with the requirements of ASME A112.6.1M up to a 500 lbs [227 kg] static load rating.

    Compliance:

    • ASME A112.6.1M

    Features:

    • Propel waste up to three times farther, reducing the possibility of low-flow system clog for overall plumbing system protection
    • Protect facilities from excessive loading with standard system design for loading up to 500 lb.
    • Install faster with labor saving features on a 30% lighter system
    • Reduce maintenance emergencies with carriers designed to optimize waste line carry
    • Maintain a sanitary environment with wall-mounted fixture
    • Test the system and cut the coupling to length from the front with Zurn's patent-pending EZ-SET™ coupling option
    • Reduce adjustment time with factory-assembled trim and universal feet pre-set at 5-1/2" rough-in height

    Additional Model Available

    Z1201-HL4, Z1201-HR4

    Keywords: Horizontal Siphon Jet Hub, Siphon Jet Hub, Water Closet Carrier, EZCarry system, low-flow system clog, plumbing system, sanitary environment, wall-mounted fixture, spigot connections, Dura-Coated cast iron, gasketed faceplate, fixture bolts, trim, stud protectors, Neo-Seal gasket, corrosion resistant, cast iron face plate, support legs, waste fitting, rear anchor assembly, polymer coupling, Facility Sanitary Sewerage, Building Services Piping, Pipe Fitting Gaskets, Neo-Seal Gasket Kit

    Specificatie

    Technische specificatie
    • Unieke ref.zurn-z1201-h
    • ProductfamilieCarriers & Fixture Supports
    • ProductgroepWater Closet & Toilet Carriers
    • TypeObject (enkelvoudig object)
    • Publicatiedatum2018-08-02
    • Editienummer3
    • Hoogte (inch)12
    • Breedte (inch)9
    • Diepte (inch)12
    Gerelateerd
    • HoofdmateriaalCast iron
    • Secundair materiaalGehard staal
    • Ontworpen inVerenigde Staten
    • Nettogewicht (lbs)64
    Classificatie
    • Categorie BIMobjectLoodgieterswerk - Afwatering
    • IFC-classificatieSanitairaansluiting
    • ETIM-codeEC011338
    • ETIM-naamAccessories for double wall/built-in element sanitary
    • Uniclass 2015-codePr_20_85_09_96
    • Uniclass 2015-beschrijvingWall-hung WC support brackets
    • CSI MasterFormat 2014 Code22 42 13.13
    • CSI MasterFormat 2014 TitelCommercial Water Closets
    • OmniClass-nummer23-31 19 19
    • OmniClass-titelWater Closets
