Lead Free* High Capacity Water Pressure Reducing Valves - LF127W
Watts

Lead Free* High Capacity Water Pressure Reducing Valves - LF127W

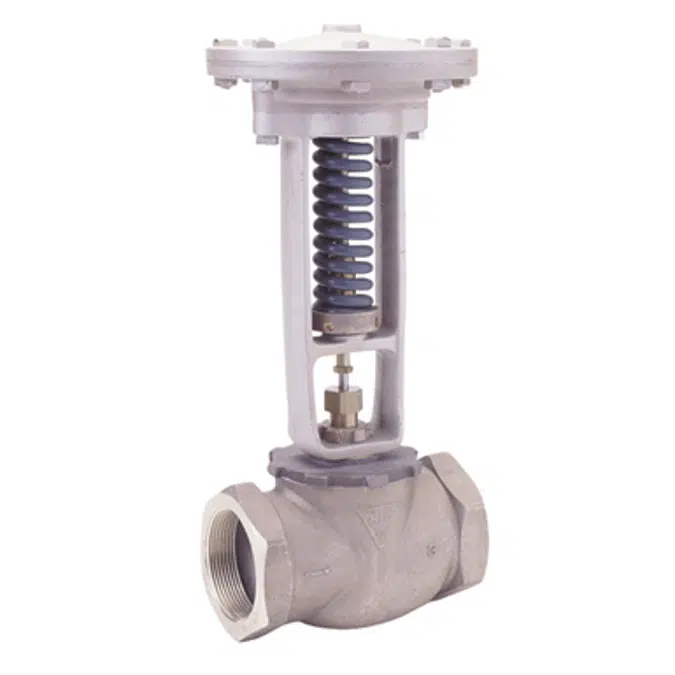

Series LF127W High Capacity Water Pressure Reducing Valves are used in commercial and industrial applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* bronze body construction with NPT threaded inlet and outlet connections, replaceable stainless steel seat and high temperature resisting interchangeable diaphragm chamber. Maximum Working Pressure: 175psi (12.1 bar), Adjustable Reduced Pressure Range: 25 to 100psi (1.7 to 7 bar).
Specificatie
  • Body Material: Lead Free* cast copper silicon alloy
    Connection Size: 3", 4"
    Connection Type: Threaded Connections
    Industry Standards: NSF
    Working Pressure: 175psi (12.1 bar)
    Maximum Working Temperature: 160°F (71°C)Keywords: backflow, double check, lead free, lf, low hazard, qt shutoff, repair kit, rk, test, testable, union, valve repair, water pressure reducing,assembly, backflow, bonnet, bypass, check, cover, kit, releif, repair, rubber, seat, valve, watts, watts regulator, plumbing, draings, valves, pipes, drainage, automatic control valves, control valves, reducing valves, pressure reducing valves, ball valves, control valves, liquid control valves, water safety

Technische specificatie
  • Unieke ref.7873
  • ProductfamilieWater Safety & Flow Control
  • ProductgroepAdjusting/Controlling Valves for Liquid Services
  • TypeObject (enkelvoudig object)
  • Publicatiedatum2015-08-11
  • Editienummer1
Gerelateerd
  • Ontworpen inVerenigde Staten
  • Gefabriceerd inVerenigde Staten
Classificatie
  • Categorie BIMobjectLoodgieterswerk - Kleppen

Beschikbaarheid regio

Noord Amerika
Canada
Verenigde Staten
