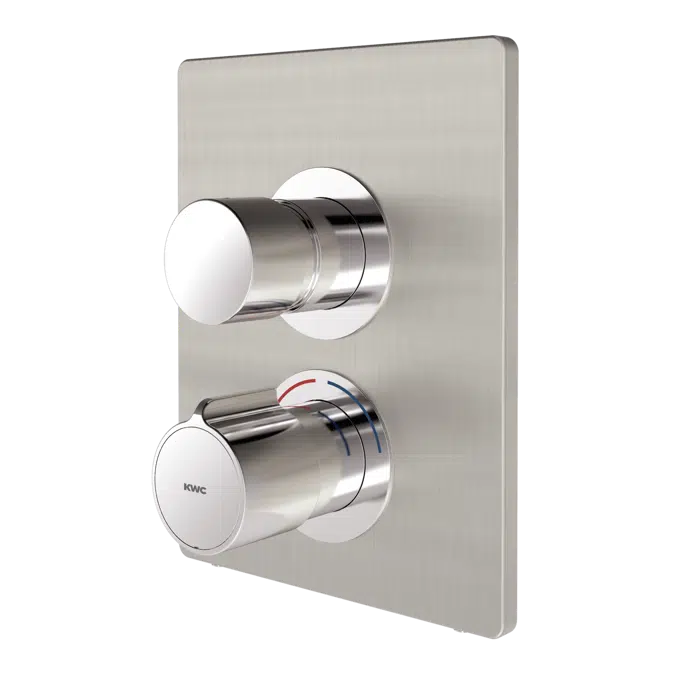

F5S Self-closing thermostatic mixer F5ST2034

F5S-Therm self-closing thermostatic mixer DN 15 as finished installation kit for installation in basic installation kit, for shower facilities. Hydraulically controlled, connects to hot and cold water. Function block with integrated FRAMIC self-closing cartridge and thermostat. FRAMIC self-closing cartridge, hydraulically controlled, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, flow pressure-independent due to medium-separated design. Stepless adjustment of flow duration. Thermostat with metal handle with adjustable and turn-proof temperature stop and option for manual thermal disinfection. All-metal construction, visible parts high-polished, chromium-plated. Holding frame including profile seal, stainless steel cover plate 190 x 245 mm with covered screw fixing, chromium-plated plastic rosettes, backflow preventer and strainers. Depth adjustability 25 mm.

Specificatie

additional connections	no
with backflow preventer	yes
built-in fitting model	Finishing section
calculation flow rate cold water	0.15 l/s
calculation flow rate hot water	0.15 l/s
circulation	no
compatible A3000 open	no
connection with pay water dispenser	not possible

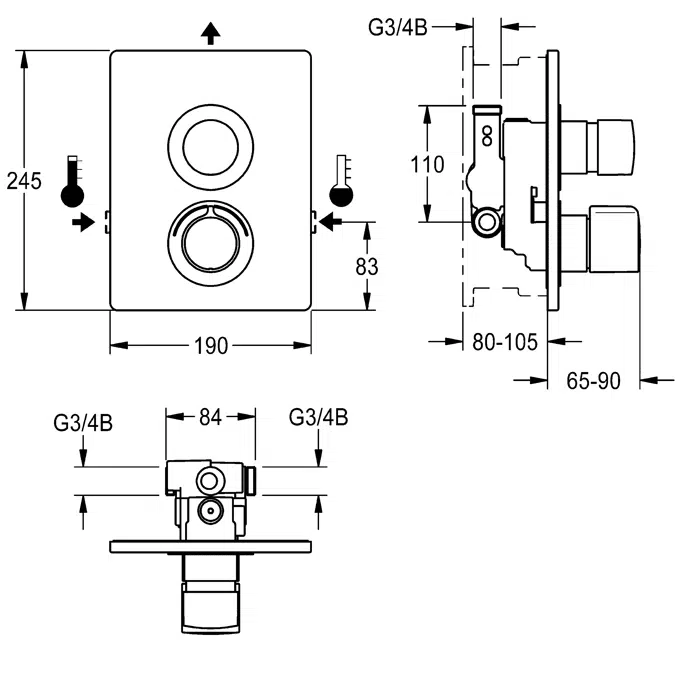

cover plate height	245 mm
cover plate width	190 mm
with filter	yes
adjustable flow time	yes
functional principle	hydraulic self-closing
for hand shower	no
hygiene flushing	no
diameter nominal	DN 15
inlet size	G 3/4 B
locking mechanism	Top section, ceramic
material casing	stainless steel
material fitting	brass-look
maximum flow time	35 Seconds
minimum flow pressure	1 bar
minimum flow time	5 Seconds
type of mixing	with thermostat
with rosettes/cover plate	yes
protective shutdown	no
shower pipe draining	no
sound insulation	no
surface finish casing	satin finished
surface finish fitting	chromed
surface treatment fitting	polished
temperature limit	yes
thermal disinfection	no
type of mounting	in-wall installation with box
type of operation	manual operation
type of shower	in-wall fitting
volume flow rate at 3 bar	0.2 l/s
water connection	threaded connection (external)
position of water connection	from side
accent colour	chrome-look (glossy)
basic colour	stainless steel-look

Technische specificatie

Unieke ref.2030067158
ProductfamilieShowers
ProductgroepSelf closing showers
TypeObject (enkelvoudig object)
Publicatiedatum2025-07-07
Editienummer1
Hoogte (mm)245
Breedte (mm)190

Links

Product-urlhttps://kwc-professional.com/en/and-nbsp_p2030067158

Gerelateerd

HoofdmateriaalRoestvrij staal
Secundair materiaalMessing
Ontworpen inDuitsland
Gefabriceerd inDuitsland
Nettogewicht (kg)4.4

Classificatie

Categorie BIMobjectSanitair - Douches
Uniclass 2015-codePr_40_20_87_75
Uniclass 2015-beschrijvingShower fittings package
