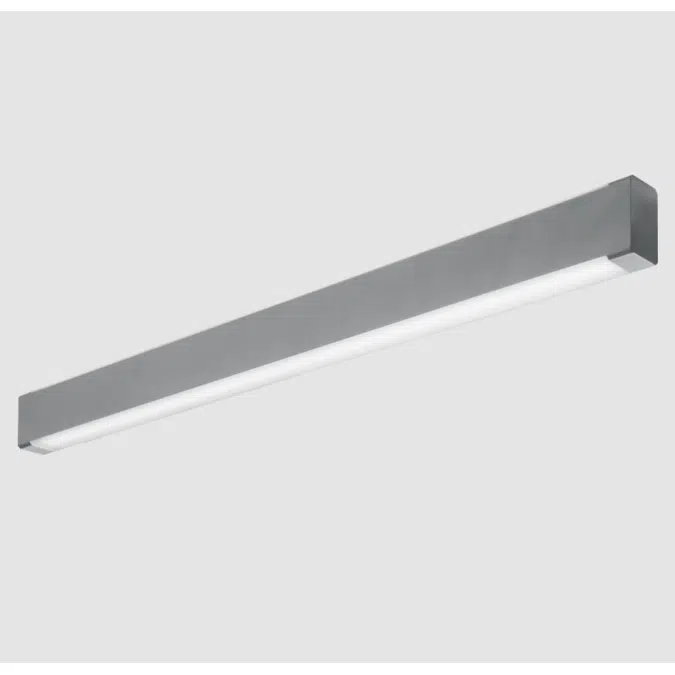

AX2WUD 2″ WALL MOUNT ARCHITECTURAL UP/DOWN

AX2WUD 2″ WALL MOUNT ARCHITECTURAL UP/DOWN

FEATURES

  • Sleek, linear, ADA Compliant design incorporates clean lines and slim styling
  • Slightly wrapped lens creates glowing edge and smooth illumination
  • Attractive source of direct and indirect lighting for use in offices, hallways, conference rooms and medical facilities
  • Suspended and wall mount styles add design flexibility and continuity
  • 4' and 8' lengths available
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
Specificatie
  • Housing

    Extruded aluminum.

    Shielding

    Frosted acrylic lens.

    Finish

    Matte, smooth silver sparkle (ALUM) standard. All other colors default to textured finish. Polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED boards. L70 at 60,000 hours per IES TM-21.

    Mounting

    Wall.

    Listings

    • cCSAus certified as luminaire suitable for dry or damp locations.
    • ADA Compliant
    • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

    Warranty

    5-year limited warranty, see details
Technische specificatie
  • Unieke ref.ax2wud-wallmountarchitecturalupdown
  • ProductfamilieIndoor Luminaires
  • ProductgroepMedical
  • TypeObject (enkelvoudig object)
  • Publicatiedatum2025-06-18
  • Editienummer1
Gerelateerd
  • HoofdmateriaalMetaal
  • Secundair materiaalGlas
  • Ontworpen inVerenigde Staten
  • Gefabriceerd inVerenigde Staten
Classificatie
  • Categorie BIMobjectVerlichting - Plafondmontage
  • IFC-classificatieLight Fixture
  • Uniclass 2015-codeEF_70_80
  • Uniclass 2015-beschrijvingLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitelInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass-nummer23-35 47 11
  • OmniClass-titelLighting Fixtures
