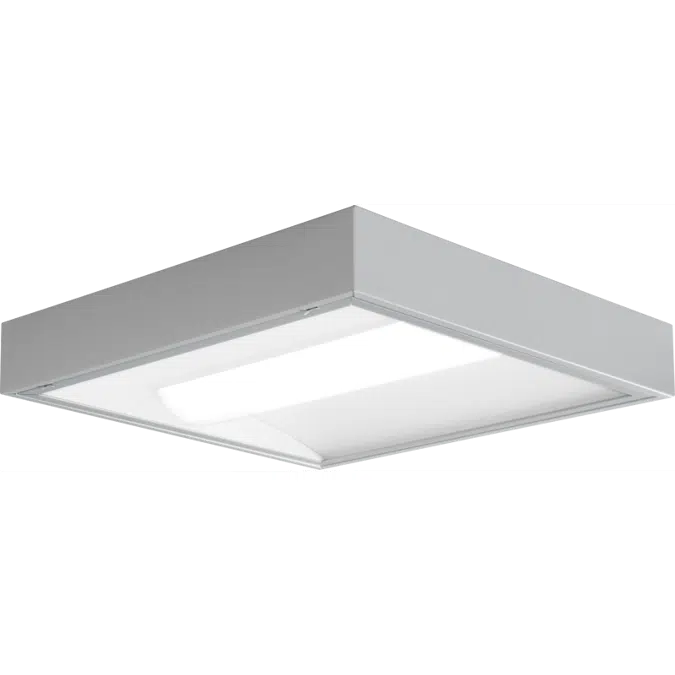

ATS2 Architectural Surface - Curved Deep Center
ATS2 Architectural Surface - Curved Deep Center

    ATS2 Architectural Surface - Curved Deep Center

    Features

    • Backlit curved lens provides uniform illumination for visual comfort
    • Distinct curved deep center detail creates a highly-aesthetic presence
    • Available with decorative inserts to customize center lens
    • Hinged door frame with optical assembly swings down to allow easy access from room-side of fixture
    • Optional gasketed acrylic sani-shield lens helps protect against contaminants
    • HE option delivers superior efficacies up to 155 lm/W
    • Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
    • Diffuse or perforated lens options enhance the space
    • 2x2 and 2x4 sizes available
    • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
    • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
    • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
    • DLC Compliant
    • Build America, Buy America and Buy American Act compliant
    • Wireless in-fixture control solutions available
    • Made Right Here® in the USA
    Specificatie
    • Housing

      20-gauge die-formed, welded C.R.S.

      Door Frame

      Hinged, flat, extruded aluminum door frame with optical assembly.

      Shielding

      Diffuse molded acrylic lens with center detail.

      Finish

      95% reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

      Electrical

      High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 50/60 Hz constant current driver.

      Mounting

      Surface or suspended

      Listings

      • cETLus conforms to UL STD 1598 and UL STD 8750.
      • Certified to CAN/CSA STD C22.2 No. 250.0.
      • Suitable for damp locations.
      • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
      Request certification at hew.com/buy-american.

      Warranty

      5-year limited warranty, see details
    Technische specificatie
    • Unieke ref.ats2_architectural-surface
    • ProductfamilieIndoor Luminaires
    • ProductgroepTroffers
    • TypeObject (enkelvoudig object)
    • Publicatiedatum2025-08-20
    • Editienummer1
    Gerelateerd
    • HoofdmateriaalMetaal
    • Secundair materiaalGlas
    • Ontworpen inVerenigde Staten
    • Gefabriceerd inVerenigde Staten
    Classificatie
    • Categorie BIMobjectVerlichting - Plafondmontage
    • IFC-classificatieLight Fixture
    • Uniclass 2015-codeEF_70_80
    • Uniclass 2015-beschrijvingLighting
    • CSI MasterFormat 2014 Code26 51 13
    • CSI MasterFormat 2014 TitelInterior Lighting Fixtures, Lamps, And Ballasts
    • OmniClass-nummer23-35 47 11
    • OmniClass-titelLighting Fixtures
