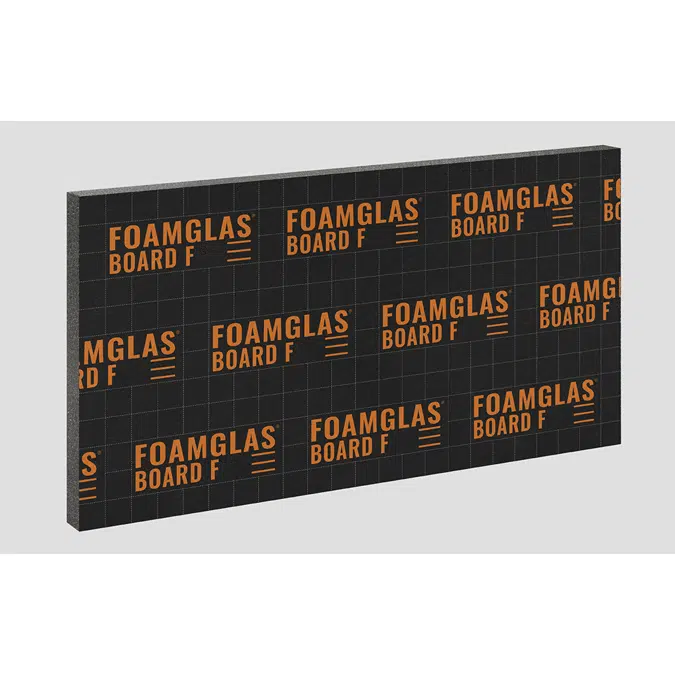

FOAMGLAS® BOARD F-140x600x1200

Offering the highest compressive strength of any FOAMGLAS® product, FOAMGLAS® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high. A typical example would be regular heavy traffic such as trucks and emergency vehicles. It has a thermal conductivity (lambda value) of 0.050 WW/(m·K) and a max compressive strength of 1600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.

Our cellular glass insulation boards measure 1200x600mm, and have a glass fleece facing, to aid adhesion and bonding. Boards are used throughout the entire internal and external building envelope, and are particularly useful upon profiled metal roof decks. The board insulation core comprises of cellular glass and so meets Euroclass A1 standards, only the thin fleece facing adds a combustible element, resulting in the overall board product being rated as E. The boards are popular for larger areas and faster installation.

사양

- Applications = Floors and Foundation Slabs
- Bending Strength = ≥ 550 kPa
- Capillarity = Zero
- Compressive Strength = ≥ 1600 kPa
- Flexural Modulus = 1500 MN/m²
- Forms of Delivery = Packaged in units of 2 to 14 boards per thickness.
- Hygroscopicity = Zero
- Length = 1200mm, ±5mm tolerance
- Melting Point = >1000°C
- Point Load = ≤ 1.0 mm
- Reaction to Fire = Euroclass E (Core is Euroclass A1)
- Service Temperature = -265°C to +430°C
- Specific Heat = 1000 J/(kg·K)
- Tensile Strength = ≥ 200 kPa
- Thermal Conductivity (λ_D) = ≤ 0.050 W/(m·K)
- Thermal Diffusivity = 3.5 x 10-7 m²/sec
- Thermal Expansion Coefficient = 9 x 10-6 K-1
- Thermal Resistance (R_D) = 2.80 m²K/W
- Thickness = 140mm, ±2mm tolerance
- Water Vapour Resistance = μ = ∞
- Width = 600mm, ±2mm tolerance
