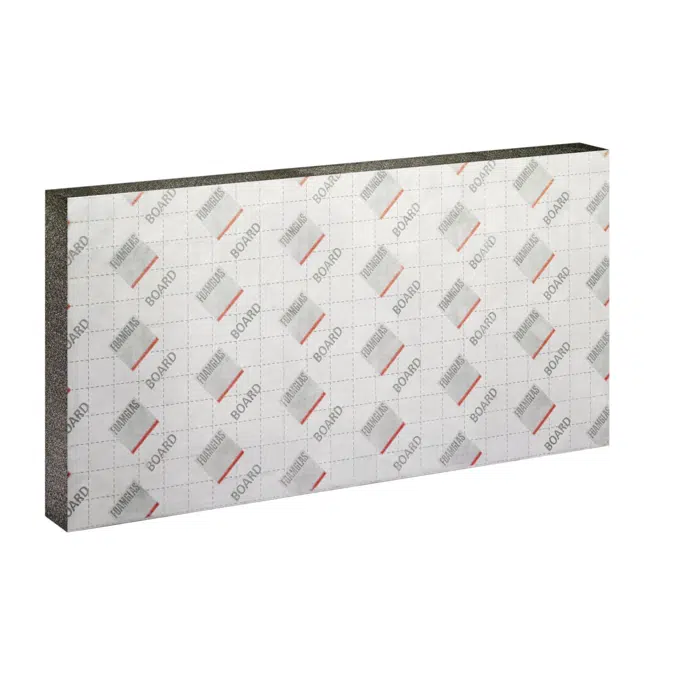

FOAMGLAS® ROOF BOARD G2 T3+-160x600x1200

Faced both sides with a glass fleece to aid cold adhesive bonding, ROOF BOARD G2 is compatible with single-ply membranes and other waterproofing systems where no hot works or naked flames are allowed.

Available in board sizes of 1200x600mm.

Provides all of the benefits of FOAMGLAS® cellular glass insulation - long-lasting thermal performance, excellent compressive strength and non-combustibility. T3+ is extremely popular for applications upon walls, soffits and roofs.

With a thermal conductivity (lambda value) of 0.036 W/(m·K), FOAMGLAS® T3+ is available in thicknesses from 50 mm to 200 mm.

Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.

Voce di capitolato

- Applications = Can be used as a single layer or as a first layer in a two-layer insulation system | Can be used as a top layer in a one or two-layer system to receive a mechanically fixed or adhered waterproofing
- Bending Strength = ≥ 400 kPa
- Capillarity = Zero
- Compressive Creep = (1.5/1/50) 225
- Compressive Strength = ≥ 500 kPa
- Forms of Delivery = Packaged in units of 2 to 12 boards per thickness
- Hygroscopicity = Zero
- Length = 1200mm, ±5mm tolerance
- Melting Point = >1000°C
- Point Load = ≤ 1.5 mm
- Reaction to Fire = Euroclass E (Core is Euroclass A1)
- Service Temperature = -265°C to +430°C
- Specific Heat = 1000 J/(kg·K)
- Tensile Strength = ≥ 150 kPa
- Thermal Conductivity (λ_D) = ≤ 0.036 W/(m·K)
- Thermal Expansion Coefficient = 9 x 10^-6/K
- Thermal Resistance (R_D) = 4.40 m²K/W
- Thickness = 160mm, ±2mm tolerance
- Water Vapour Resistance = μ = ∞
- Width = 600mm, ±2mm tolerance
