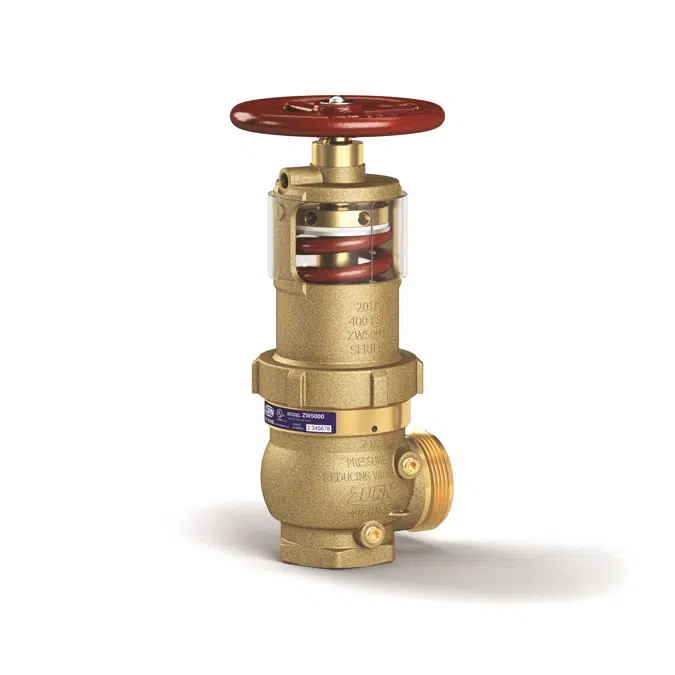

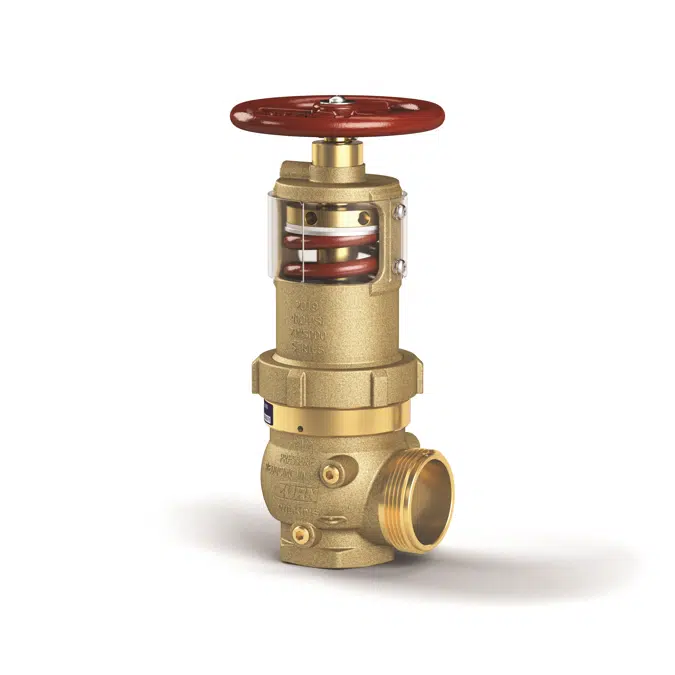

Wilkins ZW5000 Pressure Tru® Field Adjustable Pressure Reducing Hose Valve

The Pressure-Tru® ZW5000 Series Pressure Reducing Valve is listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems. The valve regulates pressure under both FLOW and NO-FLOW conditions. It can be field adjusted with ease thanks to its low torque design – requiring only 9 ft lb of torque to adjust. The compact profile fits in tighter spaces and the larger handwheel ensures trouble-free operation. The ZW5000 Series delivers optimal flow performance, making it ideal for any application, retrofit or new.

Compliance:

• UL® Listed
• C-UL® Listed

Features:

• Sizes: 2 1/2”
• Maximum inlet pressure 400 psi
• End connection (FNPT) ANSI B1.20.1 away for on-the-fly adjustments in cases of emergency
• (Grooved) AWWA C606
• (Male hose) NFPA1963
• Factory or Field Set Maximum inlet pressure 400 psi
• Inlet connection (ZW5000) FNPT or Groove
• Inlet connection (ZW5000F) FNPT
• Outlet connection (ZW5000) Male hose
• Outlet connection (ZW5000F) FNPT
• Factory or Field Set Tapped and plugged inlet and outlet for pressure gauge.
