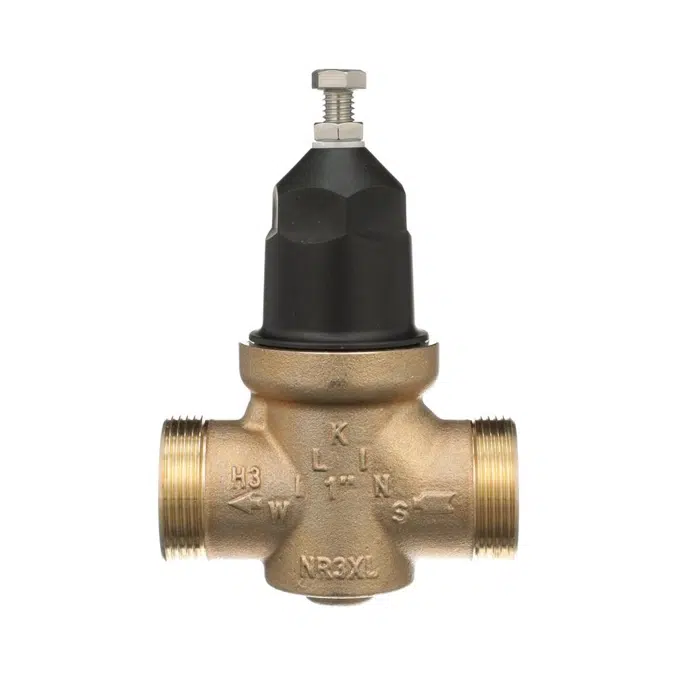

    Wilkins NR3XL Water Pressure Reducing Valve with Integral Inlet Strainer, 1/2" to 2", Lead-Free*

    Ideal for use where Lead-Free* valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes the Model NR3XL most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris. The direct acting integral bypass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Meets the requirements of NSF/ANSI 61* *Product contains weighted average lead content less than 0.25% for wetted surfaces.
    Voce di capitolato
    • The Water Pressure Reducing Valve shall be certified to NSF/ANSI 61 and ASSE® Listed 1003, available with single union, double union and less union end connections. The main body shall be low lead cast bronze (ASTM B 584) alloy. The bell shall be composite plastic. The cartridge shall be acetal and incorporate an integral seat. The seat disc elastomer shall be EPDM. The assembly shall be accessible for maintenance without removing the device from the line. The Water Pressure Reducing Valve shall be a ZURN WILKINS Model NR3XL.
    Specifiche tecniche
    • Rif. Unicozurn-nr3xl
    • Famiglia di prodottoAdjusting/Controlling Valves for Liquid Services
    • Gruppo di famigliaWater Pressure Reducing Valves
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2025-09-02
    • Numero di versione1
    Links
    Relativo a
    • Materiale principaleBronzo
    • Progettato inStati Uniti
    Classificazioni
    • Categoria BIMobjectImpianto idraulico - Valvole
    • Clasificazione IFCValvola
    • Codice Uniclass 2015Pr_65_54_94_72
    • Descrizione Uniclass 2015Reduced pressure zone valves
    • Codice CSI MasterFormat 201440 05 67
    • Titolo CSI MasterFormat 2014Specialized Pressure and Flow-Control Valves
    • Numero OmniClass23-27 31 47
    • Titolo OmniClassPressure Regulating Valves
