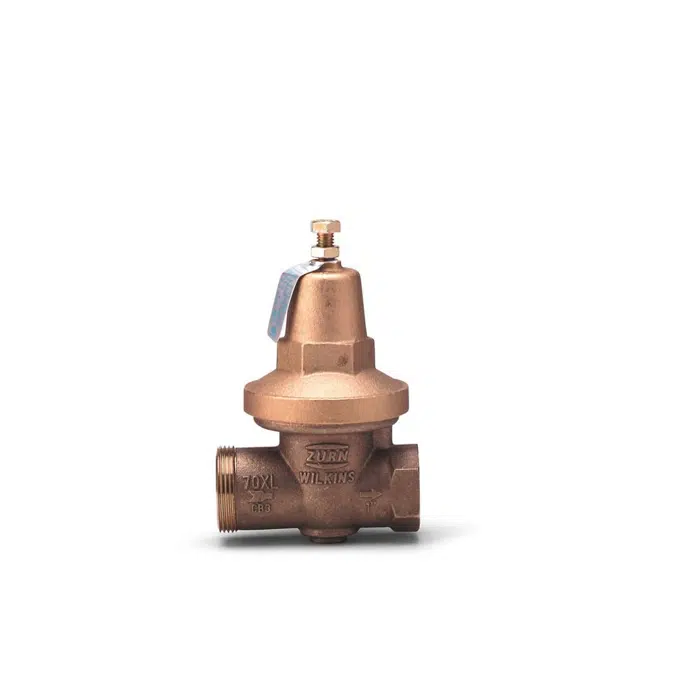

Wilkins 70XL Water Pressure Reducing Valve, 3/4" & 1", Lead Free*

Ideal for use where Lead-Free* valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The unitized replaceable cartridge reduces time involved with cleaning and maintenance. The direct acting integral bypass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Meets the requirements of NSF/ANSI 61 & 372* *Product contains weighted average lead content less than 0.25% for wetted surfaces.

Voce di capitolato

The Pressure Reducing Valve shall be certified to NSF/ANSI 372, of the direct-acting type, and ASSE® 1003 Listed. The integral bypass check valve main body and bell housing shall be cast bronze (ASTM B 584). The pressure reducing valve shall be of the balanced piston design and shall reduce pressure in both flow and no-flow conditions using an adjusting bolt. All internal parts shall be corrosion resistant and included in a replaceable cartridge. The bronze bell housing shall be threaded to the body and shall not require the use of ferrous screws. The Pressure Reducing Valve shall be a ZURN WILKINS Model 70XL.

Specifiche tecniche

Rif. Unicozurn-70xl
Famiglia di prodottoPlumbing
Gruppo di famigliaValves
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-09-02
Numero di versione1

Links

Link al Prodottohttps://www.zurn.com/products/water-control/pressure-reducing-valves/70xl
Istruzioni di installazionehttps://www.zurn.com/Media-Library/web_documents/pdfs/installation/IS70XL-pdf.pdf
Video di istruzionehttp://www.zurn.com/products/water-control/pressure-reducing-valves/70xl/34-70xl#Videos
Certificazione di Prodottohttp://www.zurn.com/products/water-control/pressure-reducing-valves/70xl/34-70xl#Features
Descrizione Tecnicahttps://files.zurn.com/spec-sheets/reg-70xl.pdf

Relativo a

Materiale principaleBronzo
Materiale secondarioAcciaio inossidabile
Progettato inStati Uniti

Classificazioni

Categoria BIMobjectImpianto idraulico - Valvole
Clasificazione IFCValvola
Codice Uniclass 2015Pr_65_54_94_72
Descrizione Uniclass 2015Reduced pressure zone valves
Codice CSI MasterFormat 201440 05 67
Titolo CSI MasterFormat 2014Specialized Pressure and Flow-Control Valves
Numero OmniClass23-27 31 47
Titolo OmniClassPressure Regulating Valves
