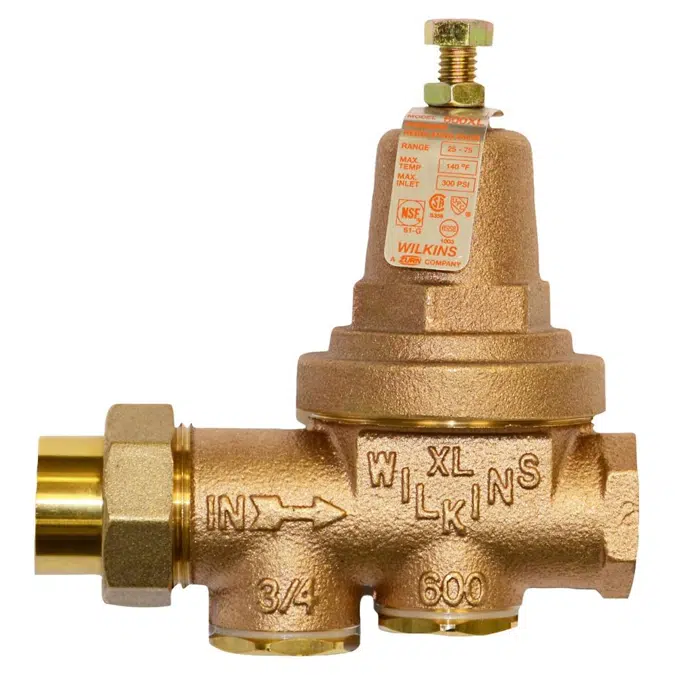

Wilkins 600XL Pressure Reducing Valve

The Pressure Reducing Valve shall be certified to NSF/ANSI/CAN 61, consist of a low lead bronze body and bronze bell housing, shall have separate access covers for the plunger and strainer screen and shall have a bolt to adjust the downstream pressure. The Pressure Reducing Valve shall be of the balanced piston design and shall reduce pressure in both flow and no-flow conditions. The bronze bell housing and access caps shall be threaded to the body and shall not require the use of ferrous screws. The Pressure Reducing Valve shall be a ZURN WILKINS Model 600XL.
Compliance:

• NSFStandard61
• NSFStandard372
• ASSE listed
• CSA B356
• cUPC listed
• IPC listed
• NPCC listed

Features:

• Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
• Maximum working water pressure 300 psi
• Maximum working water temperature 140°F
• Reduced pressure range (standard) 25 psi to 75 psi
• Factory preset 50 psi
• Hydrostatic test pressure 300 psi
• CPVC tailpiece: Max. hot water temp. 140°F @ 100 psi
• Cold water rated temp. 73.4°F @ 400 psi
