PDXT Series Bi-Fold Speedgate

PDXT Series Bi-Fold Speedgate

PDXT Series Bi-Fold Speedgate

PDXT Series Bi-Fold Speedgate

Wallace Perimeter Security

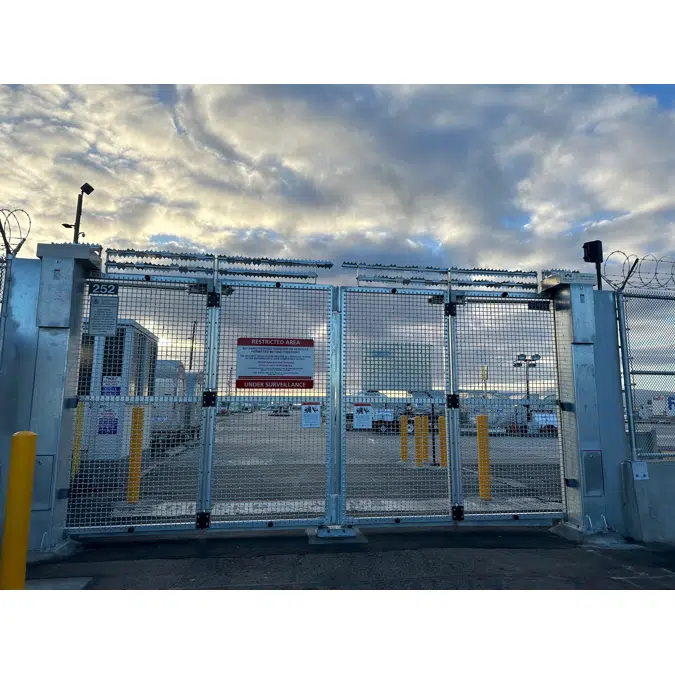

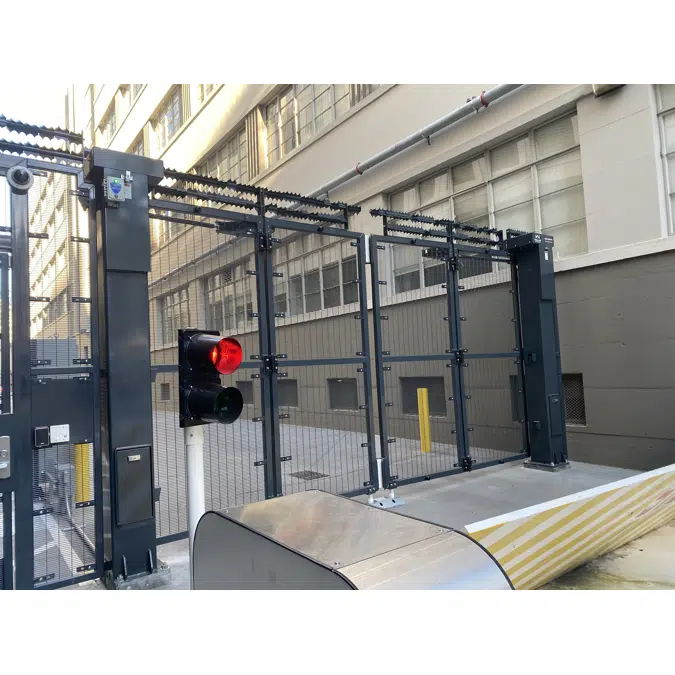

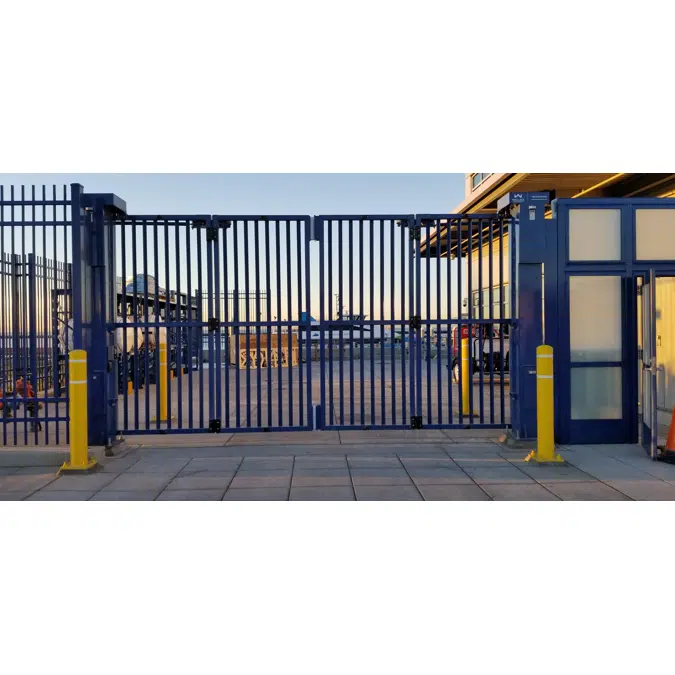

PDXT Series Bi-Fold Speedgate

The most robust and adaptable Bi-Fold Speedgate available. From elegant to bullet proof, the infill can be customized to serve the application. If you have demanding requirements for speed, security and aesthetics, then the PDXT Bi-Fold Speedgate is the perfect choice.

With an open or close cycle-time of less than 7 seconds, the bi-fold SpeedGate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.

Voce di capitolato

Features

Unlimited head room
Drive motor secured inside column
Minimal footprint
Variable frequency drive

Applications

Airports
Seaports
Chemical and petroleum facilities
Water treatment facilities
Public transportation

Options

Tailgate detection and anti-tailgate
Traffic lights (bi-directional)
Uninterruptible power supply (UPS)
Gate control stand
Strobe light
Detection loops
Cold or Hot weather kit
Pedestals

Technical Specifications

Technical Data	PDXT Series Bi-Fold Speedgate Specifications
Max Height	10'
Max Width	23'
Opening Speed	7 seconds
Finish	Hot dip galvanized, Powder coat options
Power Requirements	Voltage 208-240 V, Frequency 60 HZ, Current 20 AMP dedicated circuits, Single phase
Hydraulic Option	Yes
Battery Back-Up	Add on

Listed to UL 325 (class 1, 2, 3 & 4)

Specifiche tecniche

Rif. Unicopdxt-series-bi-fold-speedgate
Famiglia di prodottoGates
Gruppo di famigliaBi Folding Gates
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-11-20
Numero di versione1

Links

Link al Prodottohttps://www.wallaceperimetersecurity.com/gates/folding-gates/pdxt-series?utm_source=bim_Object&utm_medium=product_page
Istruzioni di installazionehttps://www.wallaceperimetersecurity.com/uploads/document/pdxt_series_bi_fold_speedgate_installation_guide.t1745952730.pdf
Video di istruzionehttps://youtu.be/cL_cwoGd7x8
Descrizione Tecnicahttps://www.wallaceperimetersecurity.com/uploads/document/pdxt_bi_fold_speedgate_brochure.1.t1745952647.pdf

Relativo a

Progettato inCanada
Prodotto inCanada

Classificazioni

Categoria BIMobjectPaesaggio ed esterni - Cancelli

Disponibilità Regionale

Nord America
Canada
Stati Uniti
