Industrial Control Damper - Blast Supression - Airfoil Blade - BC-550

Blast Damper
Airfoil Blade

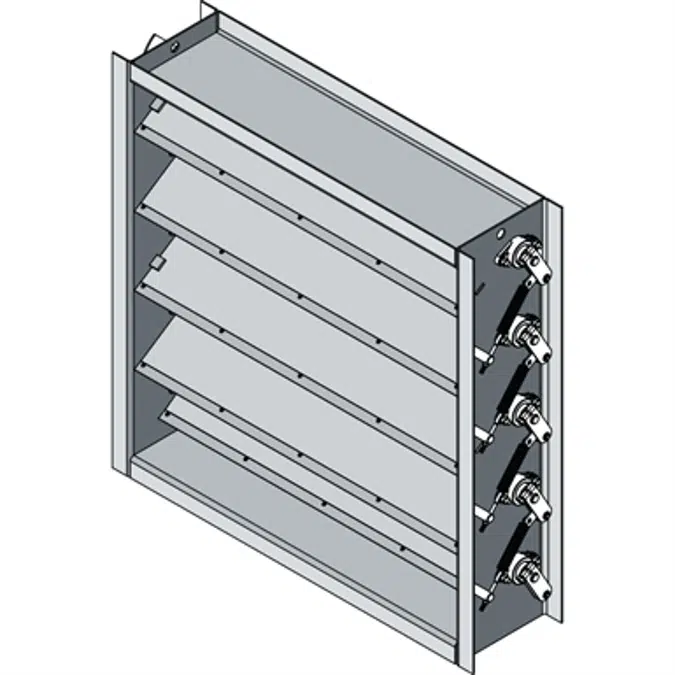

The BC-550 blast suppression damper is designed for protection against blasts and instantaneous pressure changes. It has been independently tested for blast pressures up to 15 psi which covers several Unified Facilities Criteria (UFC) and General Services Administration (GSA) codes.

Voce di capitolato

Standard Construction
Frame: 10" x 2" x 10 gauge (254 x 54 x 3.5) galvanized steel channel.
Blades: 16 gauge (1.5) galvanized double skin airfoil.
Axles: 3/4" (19) solid steel.
Blade Lock: Spring plunger to lock blades in closed position after blast event.
Linkage: 3/16" (5) thick x 3/4" (19) wide steel bars.
Bearings: Relubricatable ball bearing bolted to frame.
Finish: Mill.
Minimum Size: 6" x 6" (152 x 152)
Maximum Size:
Single Section: 36" x 96" (914 x 2438)
Multiple Section: 72" x 96" (1829 x 2438)
Ratings
Maximum Blast Pressure: Up to 15 psi
Maximum Velocity: Up to 4,000 fpm (20.3 m/s)
Temperature:
Minimum: -40^oF (-40^oC)
Maximum: 250^oF (121^oC)

Specifiche tecniche

Rif. UnicoIndustrial-Control-Damper-Blast-Supression-Airfoil-Blade-BC-550
Famiglia di prodottoHVAC
Gruppo di famigliaAir Control Dampers
TipoOggetto (oggetto singolo)
Data di pubblicazione2024-07-16
Numero di versione1

Links

Link al Prodottohttps://www.pottorff.com/product/details/339

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Canalizzazione
Codice Uniclass 2015Pr_65_65_24
Descrizione Uniclass 2015Duct dampers
Codice CSI MasterFormat 201423 33 13.13
Titolo CSI MasterFormat 2014Volume-Control Dampers
Numero OmniClass23-33 29 37
Titolo OmniClassVolume Control Dampers
