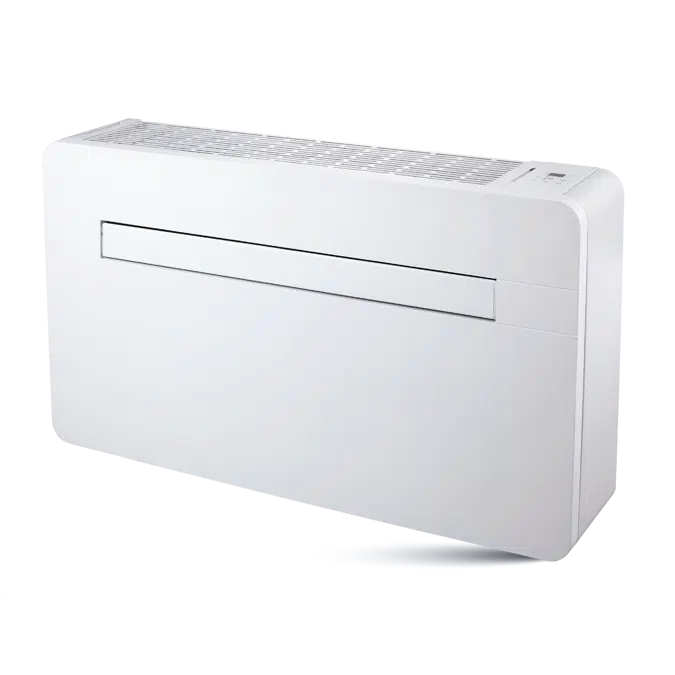

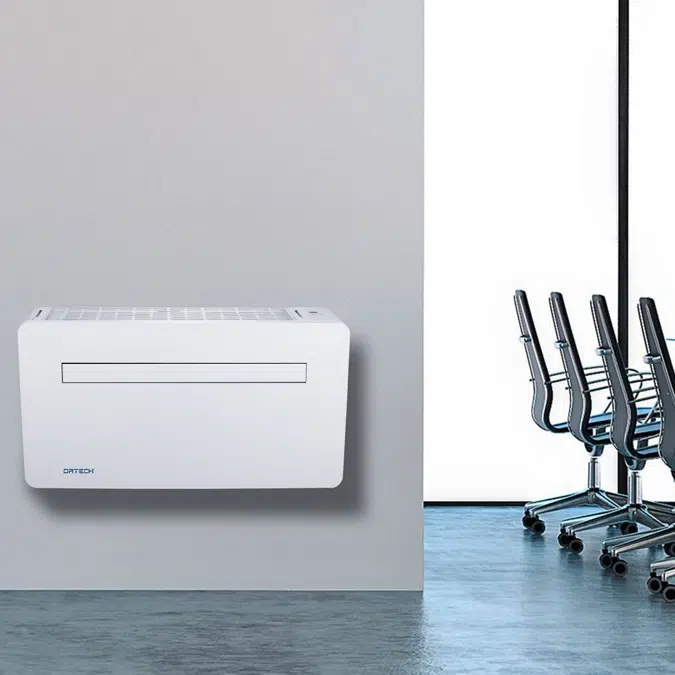

SOLO (1 TON) All-in-One Heat Pump
SOLO (1 TON) All-in-One Heat Pump
SOLO (1 TON) All-in-One Heat Pump
SOLO (1 TON) All-in-One Heat Pump
SOLO (1 TON) All-in-One Heat Pump

    SOLO (1 TON) All-in-One Heat Pump

    All-in-one heat pump delivering compact, high-performance power for ultimate climate control and year-round comfort.

    Description:

    • Sleek, All-in-One Design: Revolutionary heat pump system with no outdoor unit, preserving building aesthetics.
    • Energy Efficient & Quiet: Advanced inverter compressor and variable-speed motor ensure high efficiency and whisper-quiet performance.
    • Effortless Installation & Operation: Perfect for multi-family homes, offices, and hotels with reliable, low-maintenance heating and cooling.
    • No Outdoor Unit: This sleek, all-indoor heat pump eliminates the need for an outdoor unit, making installation easier and more versatile.

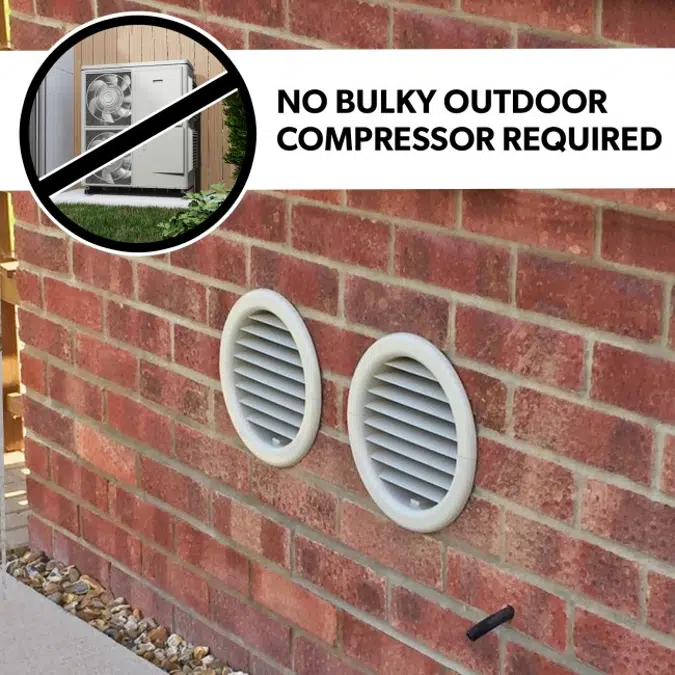

    • Venting Through Two Wall Ducts: Efficiently expels and intakes air through just two small wall ducts, reducing structural impact and maintaining the aesthetics of your building.
    • Dual Functionality (Heating & Cooling): Enjoy year-round comfort with seamless heating and cooling in a single, energy-efficient unit.
    • Drain pan heater: Helps evaporate water in drain pan to reduce chance of freezing.
    • Suitable for both new construction & any type of retrofit requirement
    • EC fan motor

    INVISIBLE OUTSIDE, INCREDIBLE INSIDE








    Keywords: All-in-one heat pump, indoor heat pump no outdoor unit, compact heat pump system, ductless heat pump alternative, invisible HVAC system, indoor climate control unit, high-performance heat pump, energy-efficient heating and cooling, whisper-quiet operation, variable-speed inverter compressor, EC fan motor technology, low-maintenance HVAC solution, sleek all-in-one design, dual functionality heating and cooling, year-round comfort system, easy installation heat pump, retrofit HVAC solution, new construction HVAC system, no outdoor condenser, venting through two wall ducts, space-saving HVAC system, ideal for multi-family homes, heat pump for offices and hotels, drain pan heater anti-freeze protection, compact indoor climate system, aesthetic-friendly HVAC, quiet energy-efficient system, sustainable heating and cooling, modern HVAC solution

    Voce di capitolato
    • EfficiencySEER2: 15.5
      HSPF2: 8.29
      Cooling CapacityRated: 12,030 Btu/h
      (Min-Max: 6,440-12,030 Btu/h)
      Heating CapacityRated: 11,970 Btu/h+3000W(electric heat)
      (Min-Max: 4,370-11,970 Btu/h)
      ElectricalVoltage: 208V-230V/50-60Hz/single phase
      Rated Current (cooling/heating): 6.1A/4.8A
      MCA: 23A
      MOCP: 30A
      Input PowerRated Cooling: 1209W
      Rated Heating: 947W
      SoundIndoor: 46 db(A)
      Outdoor: 50 db(A)
      RefrigerantR32/22.9oz
      Fan DataIndoor Airflow: 215-330 CFM
      Outdoor Airflow: 320-440 CFM
      Power SupplyPower Cord or Hardwired
      CompressorInvertor Technology
      ModesCooling, Heating, Dehumidity, Auto
      Size (inches) WxHxD39.4 x 22.8 x 8.6
      Net Weight117lb
      Operating RangeCooling: 23°F - 109°F
      Heating: 5°F - 75°F
    Specifiche tecniche
    • Rif. Unicosolo-heat-pump
    • Famiglia di prodottoHVAC
    • Gruppo di famigliaHeat Pumps
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2025-09-03
    • Numero di versione1
    Classificazioni
    • Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Pompe di calore
    • Clasificazione IFCBocchettone
    • Codice Uniclass 2015Pr_70_60_37
    • Descrizione Uniclass 2015Heat pumps
    • Codice CSI MasterFormat 201423 81 00
    • Titolo CSI MasterFormat 2014Decentralized Unitary HVAC Equipment
    • Numero OmniClass23-33 17 00
    • Titolo OmniClassHeat Pumps
