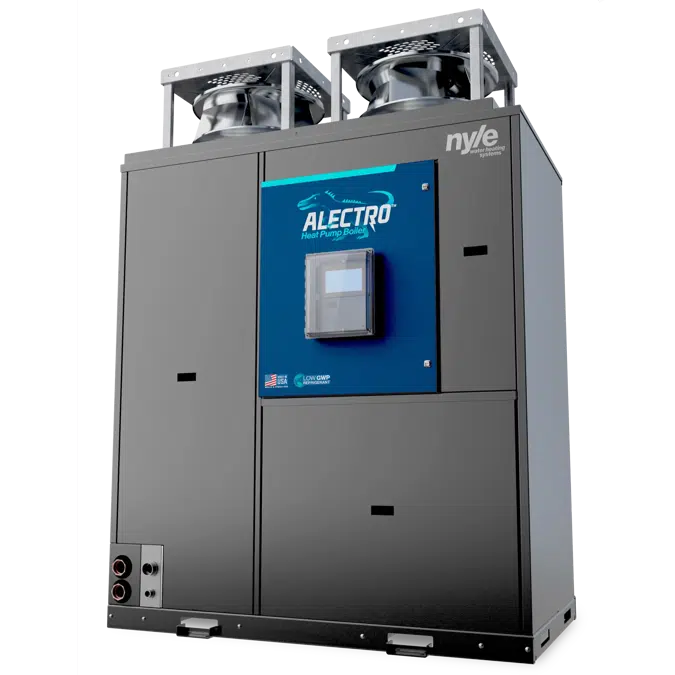

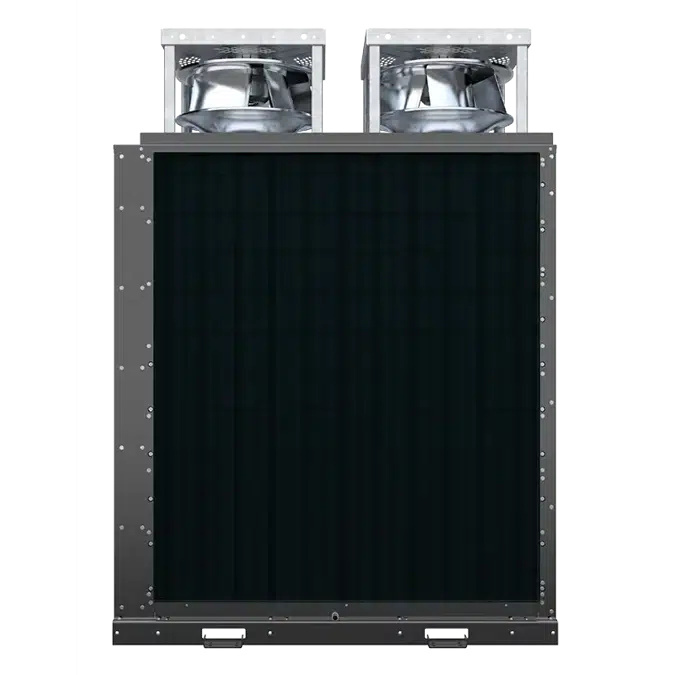

Alectro™ HPB179 Heat Pump Boiler

Direct boiler replacement heat pump for hydronic space heating. Replace your existing boiler without replacing existing infrastructure. A new category of heat pump boilers designed for real-world temperatures.

The Nyle Systems “Alectro” Heat Pump Boiler is a monobloc air source heat pump to serve as a boiler replacement on hydronic systems with high water temperature requirements. It is designed to simplify deployment on a wide variety of commercial hydronic heating systems. This product offers best-in-class performance and reliability for high-temperature water applications.

Key Features

Low GWP Refrigerant
Integral EC circulator and Fans
Build America Buy America compliant
170°F - maximum water temperature at 30°F Ambient
140°F - maximum water temperature at 10°F Ambient
Built-in outdoor reset and fixed temperature demand capability
Fully ductable, high static fans

Voce di capitolato

Water Connections: 2" FPT Copper
Design Water Flow Rate: 50.0 GPM
External Head Allowance: 16.0 ft. hd.
Min. Tank/Cycling Volume (10dT): 385 Gal.
Min. Tank/Cycling Volume (30dT): 192 Gal.
Compressor Type: Reciprocating
Refrigerant: R513a
Factory Charge: 73 lbs.
Outlet Water Temp Range: 100°F - 170°F
Ambient Operating Range: 10°F - 100°F
Minimum Ambient Exposure: -13°F
Maximum Working Pressure: 145 psig
Dimensions: 72" L x 40" D x 101-1/4" H
Design Air Flow Rate: 13,300 CFM
Sound Pressure: 76.5 dBA (Front) / 71.9 dBA (Left) / 72 dBA (Right) / 77.9 dBA (Rear)
External Static Pressure: 3.1 in. wcg
Weight: 2,300 lbs. (Dry) / 2,362 lbs. (Operating)
Salt Spray Resistance Cabinet/Evap: 1000 hrs.
Certifications (Anticipated): AHRI 550, UL60335-1, UL60335-2-40, CSA C22.2 60335-1, CSA 60335-2-40

Specifiche tecniche

Rif. Unicoalectro-heat-pump-boiler
Famiglia di prodottoAir Source
Gruppo di famigliaAlectro
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-08-15
Numero di versione1

Links

Link al Prodottohttps://heatwater.com/alectro
Istruzioni di installazionehttps://heatwater.com/alectro
Certificazione di Prodottohttps://heatwater.com/alectro
Descrizione Tecnicahttps://heatwater.com/alectro

Relativo a

Materiale principaleAcciaio
Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Pompe di calore
Codice ETIMEC012034
Nome ETIMHeat pump (air/water) monobloc type
Codice Uniclass 2015Pr_70_60_37_04
Descrizione Uniclass 2015Air to water heat pumps
Codice CSI MasterFormat 201423 81 43
Titolo CSI MasterFormat 2014Air-Source Unitary Heat Pumps
Numero OmniClass23-33 17 11 11
Titolo OmniClassAir Source Packaged Heat Pumps
