F3E-Mix electronic washbasin mixer F3EM1017

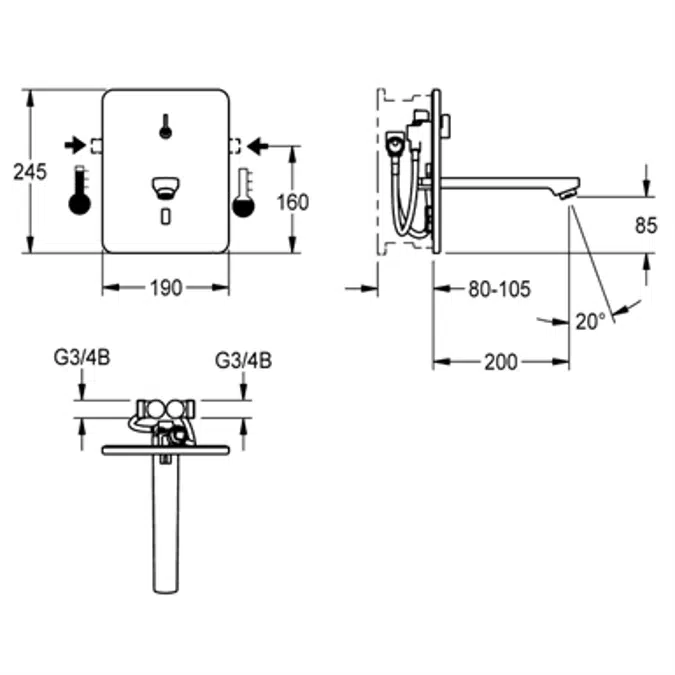

F3E-Mix washbasin mixer DN 15 as finished installation kit for in-wall installation in basic installation kit, for sanitary facilities. Opto-electronically controlled, for connection to hot water and cold water. Connection block with integrated solenoid valve cartridge, mixer shaft and hoses with integrated backflow preventer and strainers. Stainless steel cover plate 190 x 245 mm with covered screw fixing including sensor with control electronics and temperature lever with adjustable, turn-proof temperature stop. With holding frame with profile seal and spout with laminar jet controller with integrated flow regulator 6.0 l/min. Projection 200 mm, depth adjustability 25 mm. Visible parts made of high-polished chromium-plated brass. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional, bidirectional remote control. Separate power supply via power supply unit 6.75 V / 12 V DC.

Voce di capitolato

Type of mounting In-wall installation with box
Type of operation Sensor operation
Power supply connection 6-12-VDC
Diameter nominal DN 15
Calculation flow rate cold water 0.07 liter per second
Calculation flow rate hot water 0.07 liter per second
Functional principle Electronic self-closing
Minimum flow pressure 1.00 bar
Power consumption 1.50000
Volume flow rate at 3 bar 0.10 liter per second
Inlet size G3-8
Type of mixing With mixing
Material casing Stainless steel
Material fitting Brass
Sound insulation No
Spout projection 200.00 mm
Surface finish casing Satin finished
Surface finish fitting Chromed
Type of tap In-wall tap
Depressurised No
Thermal disinfection No
Protective shutdown Yes
Default automatic hygiene flushing 24h after the last activity
Position of power connection Backside
Type of sensor Opto-electronic sensor

Specifiche tecniche

Rif. Unico2030040125
Famiglia di prodottoTaps
Gruppo di famigliaElectronic taps
TipoOggetto (oggetto singolo)
Data di pubblicazione2021-01-07
Numero di versione1
Altezza (mm)245
Larghezza (mm)190

Links

Link al Prodottohttps://kwc-professional.com/en/f3em1017-electronic-wash-basin-mixer_p2030040125
Istruzioni di installazionehttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2030040124/mounting-instruction_2030041984.pdf

Relativo a

Materiale principaleAcciaio inossidabile
Materiale secondarioOttone
Progettato inGermania
Prodotto inGermania
Peso Netto (Kg)2.66

Classificazioni

Categoria BIMobjectArticoli sanitari - Bagno - Rubinetti & Miscelatori
Codice Uniclass 2015Pr_40_20_87_98
Descrizione Uniclass 2015Washbasin taps
