6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate
6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate

    6" LokPlate™ Plastic Downspout Nozzle w/ Self-Locking Escutcheon Plate

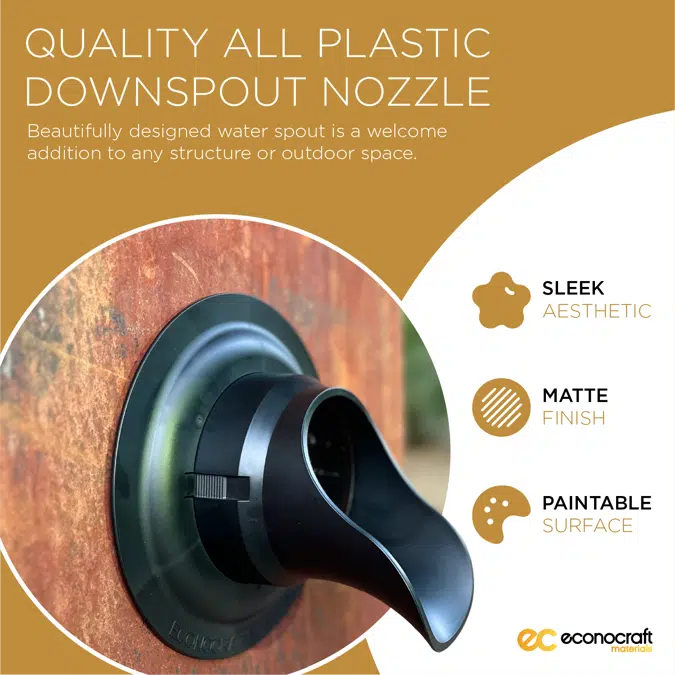

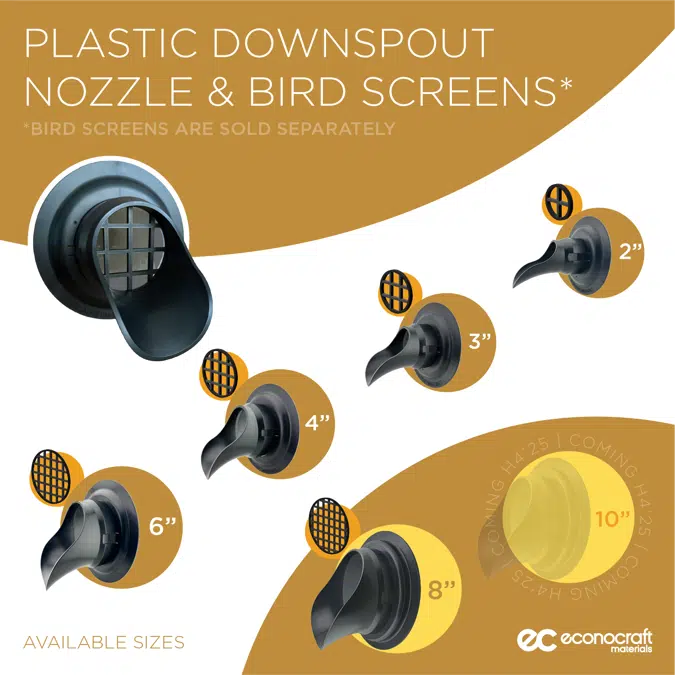

    The LokPlate™ Plastic Downspout Nozzle and included optional-to-install escutcheon plate is designed to prevent staining or erosion of your building's exterior and foundation. The nozzle is designed to fit standard Schedule 40/80 PVC & ABS pipes in sizes 2-Inch, 3-Inch, 4-Inch, 6-Inch, 8-Inch and 10-Inch and offered in 4 colors (Black, Matte Brass, Oil Rubbed Bronze & Tuscan Bronze). This product comes as a two piece set:

    • Downspout nozzle (i.e., cow tongue, scupper, spillover)
    • Round (self-locking) escutcheon plate (i.e., wall flange, beauty ring)

    Key Features -

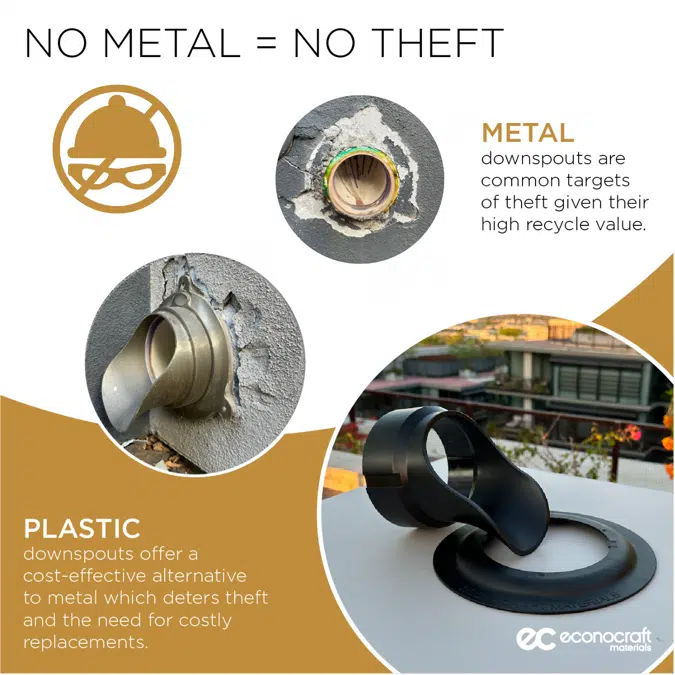

    1. No Metal = No Theft

    Metal downspouts are common targets of theft given their high recycle value. A plastic downspout offers a cost-effective alternative to metal which deters theft and the need for costly replacements.

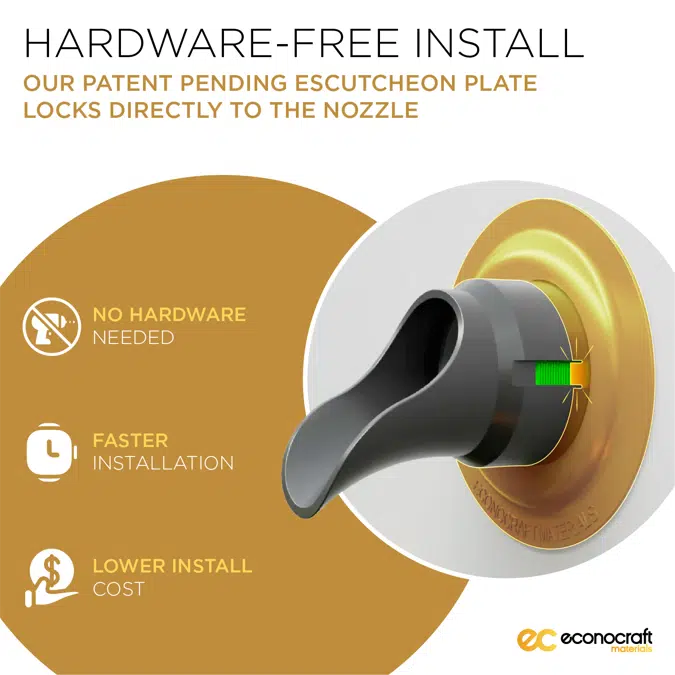

    2. Hardware-Free Install

    With its patent-pending locking mechanism, the included escutcheon plate locks directly to the nozzle without the need for hardware or glue, decreasing your install time/cost and avoiding damage to your building or structure. The optional escutcheon plate also incorporates a raised & hollow center ring for optimal clearance of any debris around the pipe opening. The locking track allows you to support multiple install conditions (e.g., drain pipe is too short, long or even crooked)

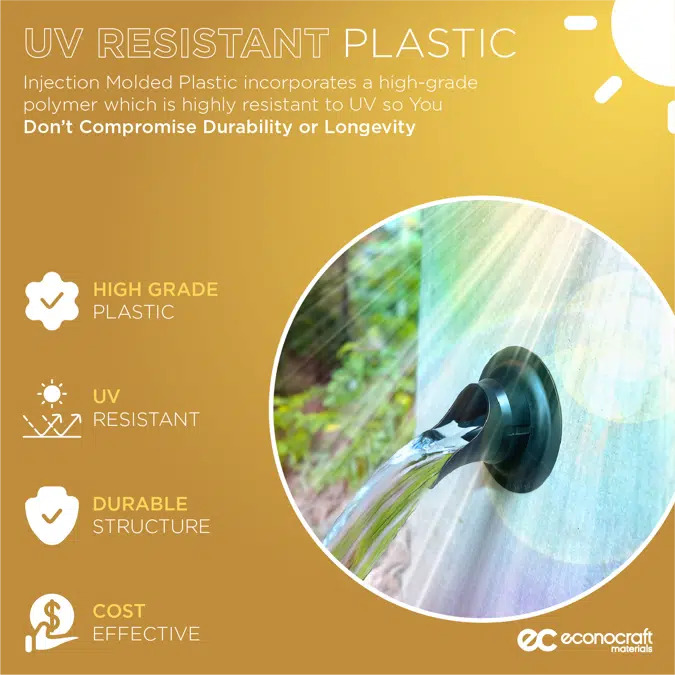

    3. UV-Resistant Plastic

    Both components are made from an injection-molded plastic which incorporates a high-grade polymer which provides enhanced UV resistance properties. Furthermore, the color is integrated directly into the plastic itself (vs. painted on post-production). All this ensures a durable build and long-lasting color so that you aren't compromising on quality.

    Voce di capitolato
    • Specification Details can be found to the 'Links' section below.

    Specifiche tecniche
    • Rif. Unico6-inch-downspout-nozzle
    • Famiglia di prodottoDownspout Nozzle & Bird Screens
    • Gruppo di famigliaLokPlate Plastic Downspout Nozzle
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2025-11-25
    • Numero di versione1

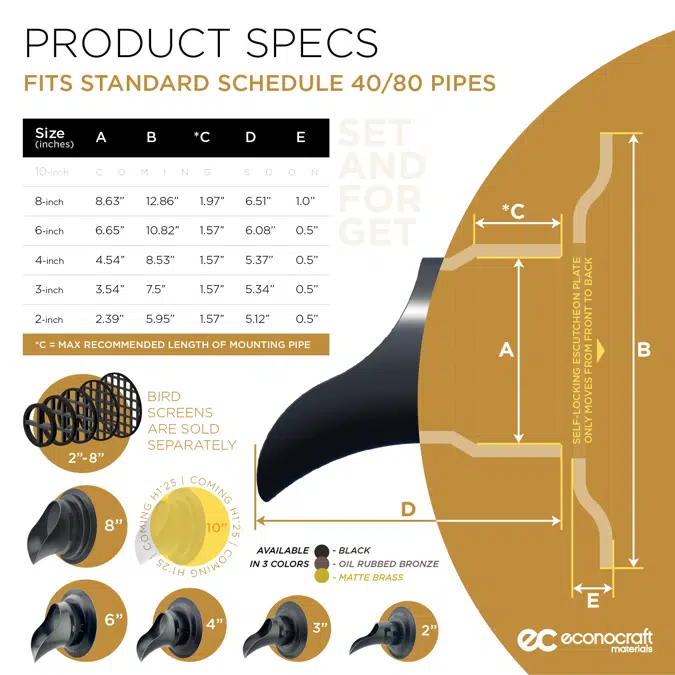

    • Altezza (pollici)10.82
    • Larghezza (pollici)10.82
    • Profondità (pollici)6.08
    Relativo a
    • Materiale principalePlastica
    • Materiale secondarioAcrilato
    • Progettato inStati Uniti
    • Prodotto inCina
    • Peso Netto (Libbre)1.1
    Classificazioni
    • Categoria BIMobjectImpianto idraulico - Scarico
    • Clasificazione IFCTerminale rifiuti
    • Codice ETIMEC010531
    • Nome ETIMRainwater pipe outlet
    • Codice Uniclass 2015Ss_50_30_02
    • Descrizione Uniclass 2015Rainwater drainage systems
    • Codice CSI MasterFormat 201407 71 23
    • Titolo CSI MasterFormat 2014Manufactured Gutters and Downspouts
    • Numero OmniClass23-13 41 39
    • Titolo OmniClassRoof Drains
