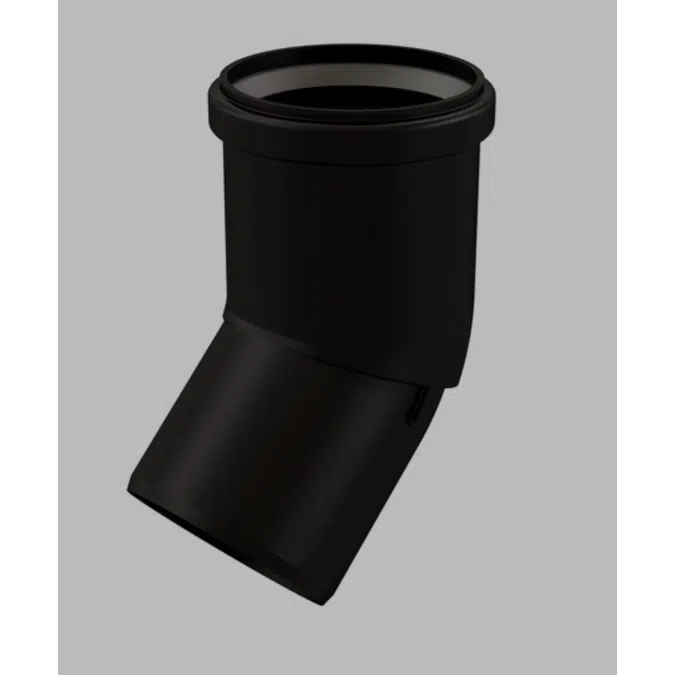

3" x 45 UV Elbow w/Long Socket

Engineered for venting applications, InnoFlue elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system with elbows evaluated to UL1738 and ULCS636. Crafted for durability and optimal performance, InnoFlue elbows come provide a quick solution to tricky vent layouts.

Evaluated to UL1738 and ULCS636 by ICC.
Integrated EPDM gasket assures airtight seal.
Durable and lightweight.
Installs quickly without glues, primers, or solvents.
Suitable for outdoor installation.

Voce di capitolato

SpecificationsGeneralProduct Name3" x 45 UV Elbow w/Long SocketTrade nameInnoFlueGTIN0810017292950Part number250405101580TechnicalColorBlackMaterialPPsSystem typeSingle wallDimensionsLength gross181.61 mm / 7.1 inchHeight95.25 mm / 3.7 inchDiameter flue pipe80 mm / 3 inchWidth140.97 mm / 5.5 inchNet weight0.12 kg / 0.3 lbsLogisticalIntrastat3917400090Base unit packagingUnpackedPackaging / Trade length181.61 mm / 7.1 inchPackaging / Trade height95.25 mm / 3.7 inchNumber per packaging1Gross weight0.113 kg / 0.2 lbsPackaging / Trade width140.97 mm / 5.5 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES

Specifiche tecniche

Rif. Unico3-x45uvelboww-longsocket
Famiglia di prodottoTerminations
Gruppo di famigliaSingle Wall - Small diameter
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-07-10
Numero di versione1

Links

Link al Prodottohttps://www.centrotherm.us.com/products/innoflue-polypropylene-vent-systems/single-wall-small-diameter/terminations/3-x-45-uv-elbow-w_long-socket/

Relativo a

Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Canalizzazione
Clasificazione IFCRaccordo del condotto
Codice ETIMEG015540
Nome ETIMFittings, flanges and connectors
Codice Uniclass 2015Pr_65_65_25
Descrizione Uniclass 2015Ductwork and fittings
Codice CSI MasterFormat 201423 31 13.19
Titolo CSI MasterFormat 2014Metal Duct Fittings
Numero OmniClass23-33 49 00
Titolo OmniClassHVAC Ductwork
