Brava

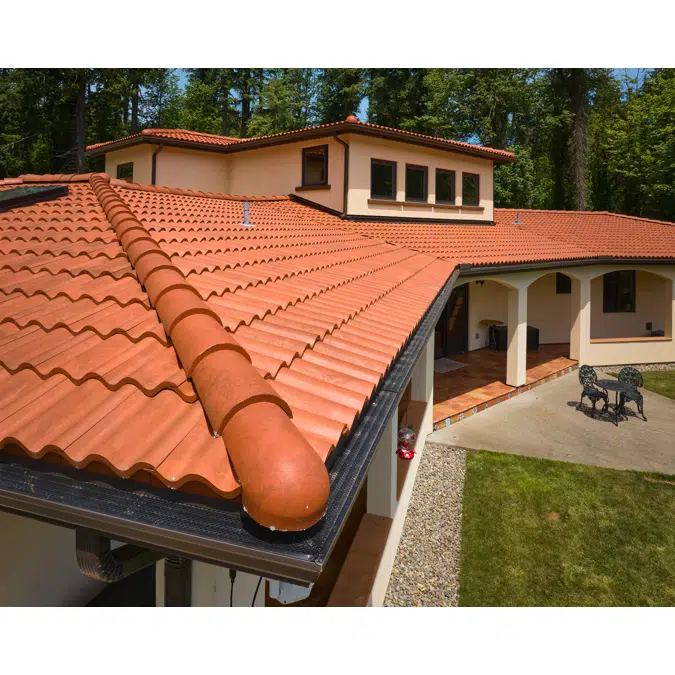

Spanish Barrel Tile Roofing

Warmth and beauty of traditional clay tile, with the benefits of a light-weight synthetic material.

If you're looking for Spanish roof tile alternatives, familiarize yourself with Brava Barrel tile. Our composite roofing tiles are the perfect barrel clay tile alternative. As you know, traditional barrel tile roof squares are extremely heavy and require additional structural support. Our lightweight synthetic roofing material eliminates the need for costly structural support, reduces the installation labor, and decreases your roof maintenance tremendously. Your new synthetic barrel roof will look amazing for a lifetime! Brava Barrel tile is truly a revolutionary roofing product, unrivaled in the composite roofing industry.

Voce di capitolato

Dimensions

Height	16 ½" ± ⅛"
Width	13"
Exposure	13"

Weight

Weight/Piece (lb.)	2.9
Lb./Square	281
Lb./Pallet	1722

Packaging

Pieces/Bundle	10
Bundles/Square	9.7
Bundles/Pallet	57.5
Squares/Pallet	5.92

Testing Class A

Weatherometer	Pass
Fire Resistance	Class A
Smoke Density	Pass
Self Ignition Temperature	Pass
Rate of Burn	Pass
Average Time of Burn	Pass
Average Extent of Burn	Pass
Impact Resistance	Class 4
Wind Resistance	All tiles are manufactured to uphold the highest quality control standards and withstand the harshest of weather conditions. Brava tiles are tested and approved to withstand wind speeds of up to 188MPH with ring shank nails and up to 211MPH with high wind / screw installation.
Wind-driven Rain Resistance	Pass
Uplift Bend	Pass
Temperature-Cycling	Pass
Accelerated Weathering	Pass
Penetration	Pass

Testing Class C

Weatherometer	Pass
Fire Resistance	Class C
Smoke Density	Pass
Self Ignition Temperature	Pass
Rate of Burn	Pass
Average Time of Burn	Pass
Average Extent of Burn	Pass
Impact Resistance	Class 4
Wind Resistance	All tiles are manufactured to uphold the highest quality control standards and withstand the harshest of weather conditions. Brava tiles are tested and approved to withstand wind speeds of up to 188MPH with ring shank nails and up to 211MPH with high wind / screw installation.
Wind-driven Rain Resistance	Pass
Uplift Bend	Pass
Temperature-Cycling	Pass
Accelerated Weathering	Pass
Penetration	Pass

Code Compliance

Miami-Dade Approved	Yes
Florida Building Code Approval (FBC)	Yes
Title 24 / Cool Roof Approval	Terra Cotta, French Clay, Weathered, Lake Forest colors only
International Building Code (IBC) Compliant	Yes
International Residential Code (IRC) Compliant	Yes

Specifiche tecniche

Rif. Unicospanish-barrel-tile-roofing
Famiglia di prodottoRoofing Products
Gruppo di famigliaSpanish Barrel Tile
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-10-30
Numero di versione1

Links

Link al Prodottohttps://www.bravarooftile.com/roof-tiles/barrel-tile/
Istruzioni di installazionehttps://www.bravarooftile.com/resources/brava-spanish-roof-tile-installation-pdf/
Video di istruzionehttps://youtu.be/Q_tz1TLmPKs
Descrizione Tecnicahttps://www.bravarooftile.com/resources/brava-spanish-tile-spec-sheet-product-comparison-pdf/

Relativo a

Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectEdilizia - Coperture, tetti e tegole
Clasificazione IFCTetto
Codice ETIMEG020300
Nome ETIMBuilding - Roofing materials
Codice Uniclass 2015EF_30_10
Descrizione Uniclass 2015Roofs
Codice CSI MasterFormat 201407 32 00
Titolo CSI MasterFormat 2014Roof Tiles
Numero OmniClass23-13 39 17
Titolo OmniClassRoof Tiles
