Brava

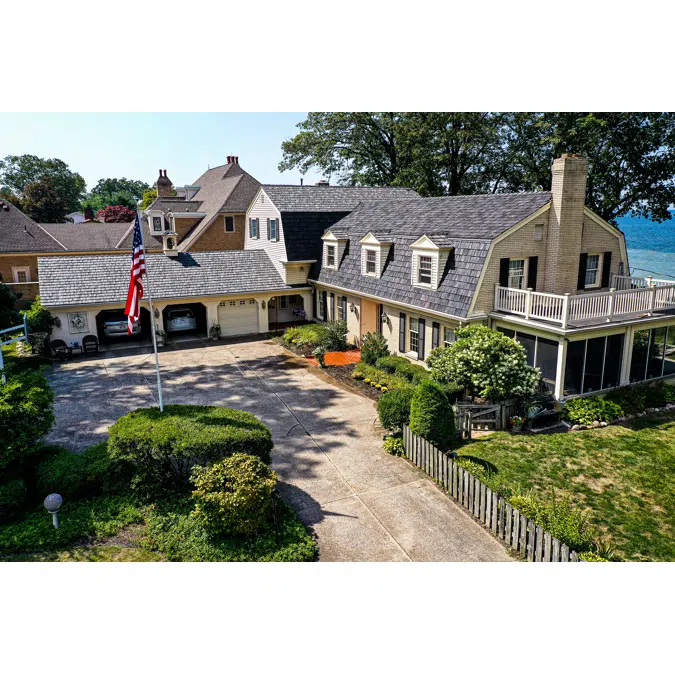

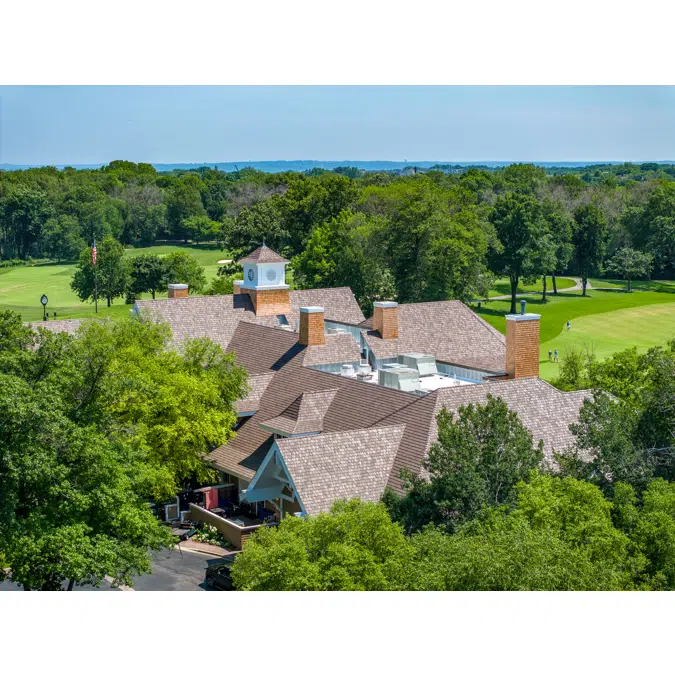

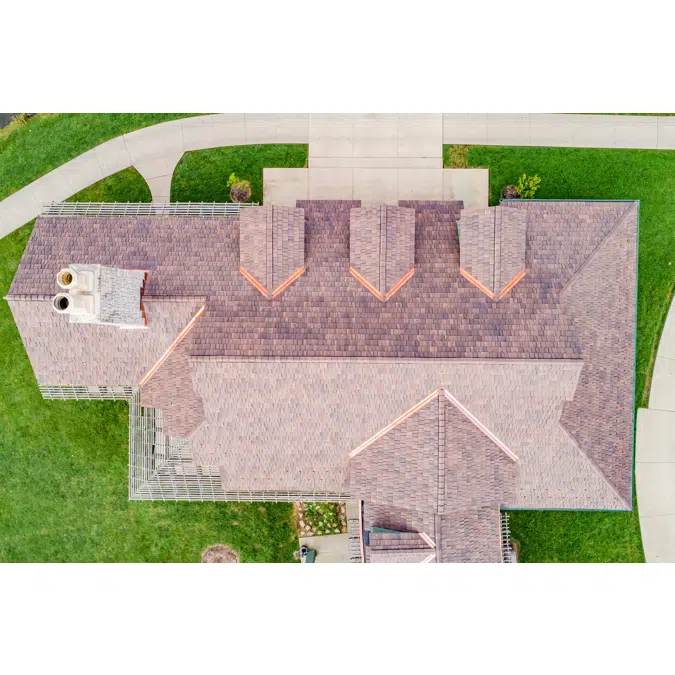

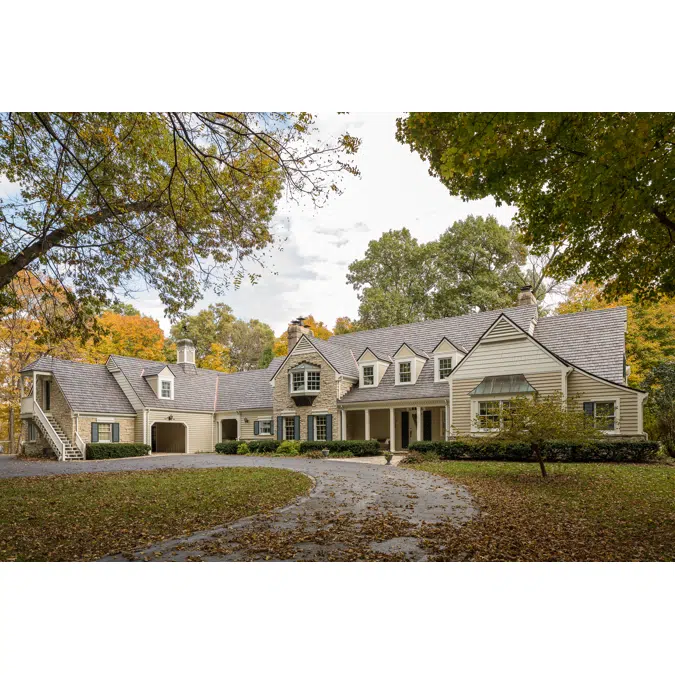

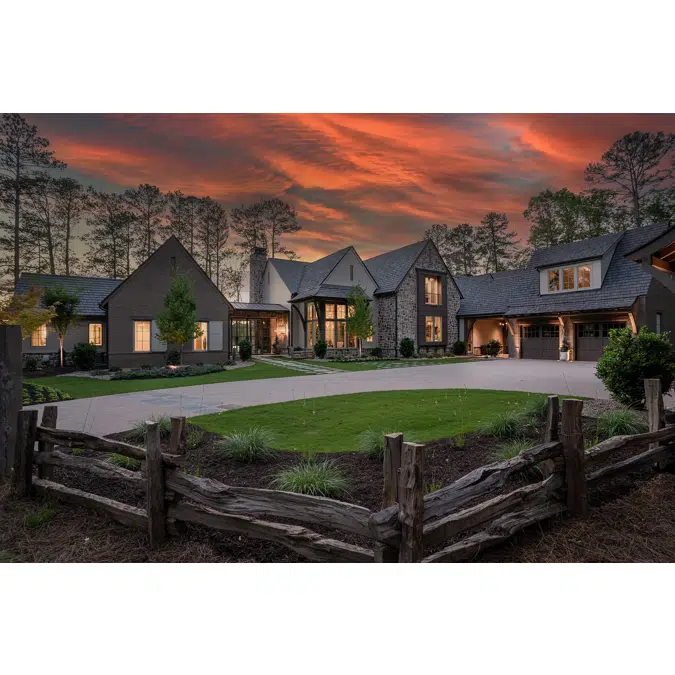

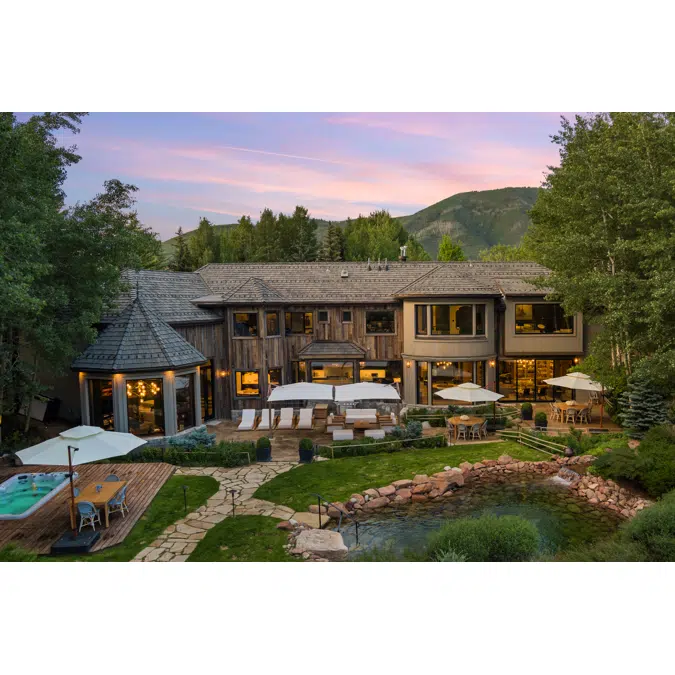

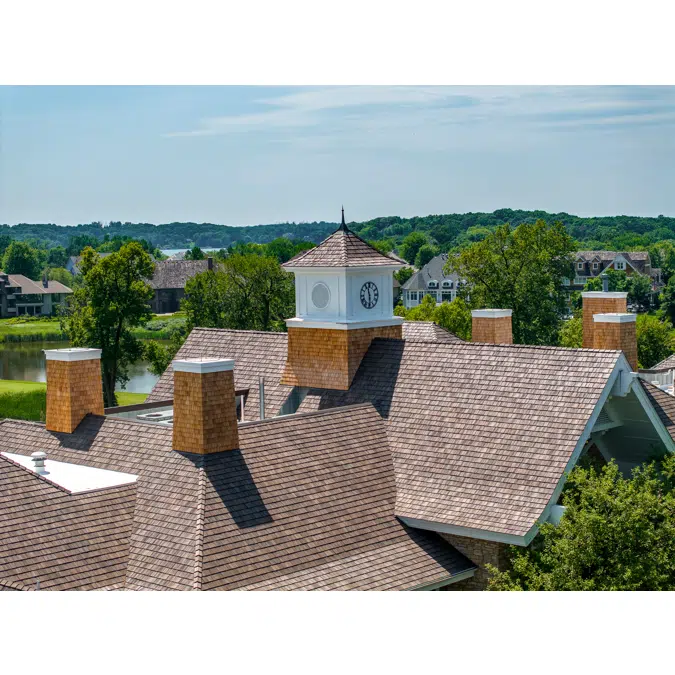

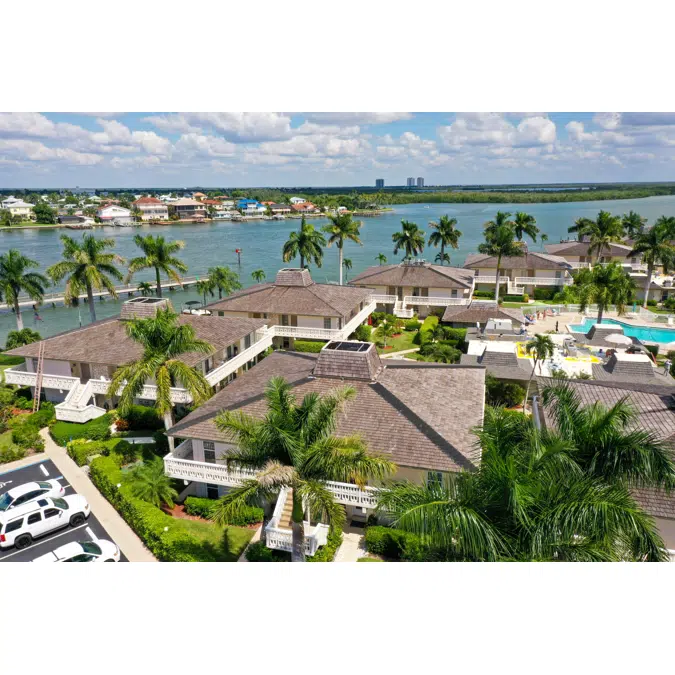

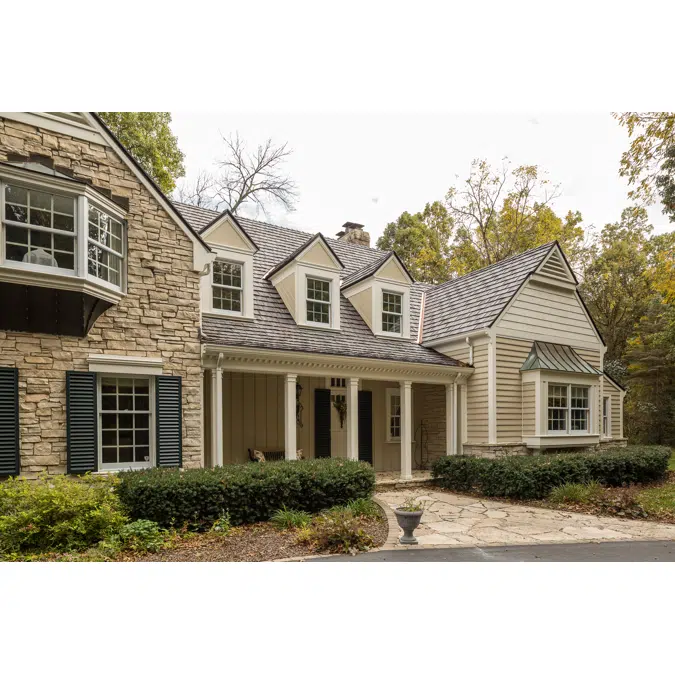

Cedar Shake Roofing

Realistic, true to life look of hand-split cedar shake, with the long-lasting durability of composite material.

When searching for a cedar shake roof alternative, Brava’s synthetic shake roofing tiles should be at the top of your list. Our polymer shingles have all of the true to life natural beauty and rustic split textures of real cedar, combined with the incredible benefits of a composite roofing material. When it comes to quality and craftsmanship, no one does it better. We manufacture the best composite shake shingles available. (Title 24 options available)

Voce di capitolato

Dimensions

Length	22"
Width	5", 7", 12"
Thickness	1"
Maximum Exposure	10"
Minimum Keyway	3/16" (3/8" Recommended)
Minimum Sidelap	1-1/2"

Weight

Weight/Piece (lb.)	1.2 (5”); 1.6 (7”); 2.8 (12”)
Lb./Square	321
Lb./Bundle	22.4
Lb./Pallet	1835

Packaging

Pieces/Bundle	12 (4 each size)
Bundles/Square	14.3
Bundles/Pallet	84
Squares/Pallet	5.86

Testing Class A

Weatherometer	Pass
Fire Resistance	Class A
Impact Resistance	Class 4
Wind Resistance	All tiles are manufactured to uphold the highest quality control standards and withstand the harshest of weather conditions. Brava tiles are tested and approved to withstand wind speeds of up to 188MPH with ring shank nails and up to 211MPH with high wind / screw installation.
Uplift Bend	Pass
Temperature-Cycling	Pass
Penetration	Pass

Testing Class C

Weatherometer	Pass
Fire Resistance	Class C
Impact Resistance	Class 4
Wind Resistance	All tiles are manufactured to uphold the highest quality control standards and withstand the harshest of weather conditions. Brava tiles are tested and approved to withstand wind speeds of up to 188MPH with ring shank nails and up to 211MPH with high wind / screw installation.
Uplift Bend	Pass
Temperature-Cycling	Pass
Penetration	Pass

Code Compliance

Miami-Dade Approved	Yes
Florida Building Code Approval (FBC)	Yes
TDI Approval	Yes
Title 24 / Cool Roof Approval	Terra Cotta, French Clay, Weathered, Lake Forest colors only
International Building Code (IBC) Compliant	Yes
International Residential Code (IRC) Compliant	Yes

Tile, Roofing

Specifiche tecniche

Rif. Unicocedar-shake-roofing
Famiglia di prodottoRoofing Products
Gruppo di famigliaCedar Shake
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-10-30
Numero di versione1
Altezza (pollici)22
Larghezza (pollici)12
Profondità (pollici)1

Links

Link al Prodottohttps://www.bravarooftile.com/roof-tiles/cedar-shake-roof/
Istruzioni di installazionehttps://www.bravarooftile.com/resources/22-brava-shake-roof-tile-installation/
Video di istruzionehttps://youtu.be/_3Df6JYsufs
Descrizione Tecnicahttps://www.bravarooftile.com/resources/22-brava-shake-spec-sheet-product-comparison-pdf/

Relativo a

Materiale principaleRecycled Polyethylene
Materiale secondarioHigh-density polyethylene (HDPE)
Progettato inStati Uniti
Prodotto inStati Uniti
Peso Netto (Libbre)3.21

Classificazioni

Categoria BIMobjectEdilizia - Coperture, tetti e tegole
Clasificazione IFCTetto
Codice ETIMEG020300
Nome ETIMBuilding - Roofing materials
Codice Uniclass 2015Pr_25_93_72_96
Descrizione Uniclass 2015Wood shakes
Codice CSI MasterFormat 201407 31 00
Titolo CSI MasterFormat 2014Shingles and Shakes
Numero OmniClass23-13 39 21
Titolo OmniClassShake Roofing
