RGBW Color-Changing LED Directional Landscape Path Light

Alcon Lighting

RGBW Color-Changing LED Directional Landscape Path Light

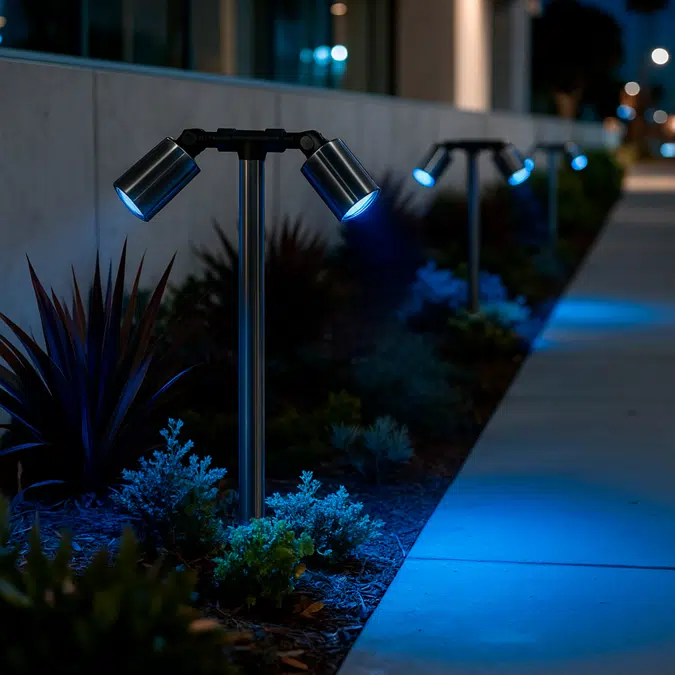

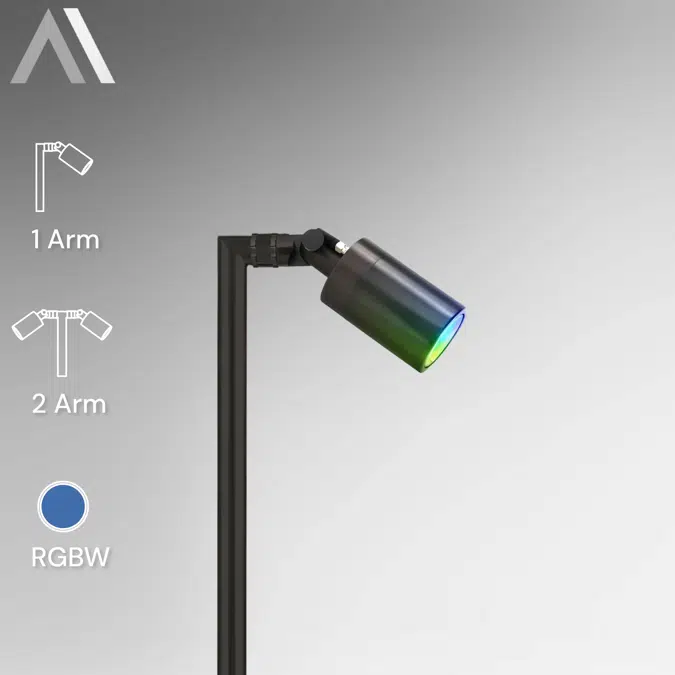

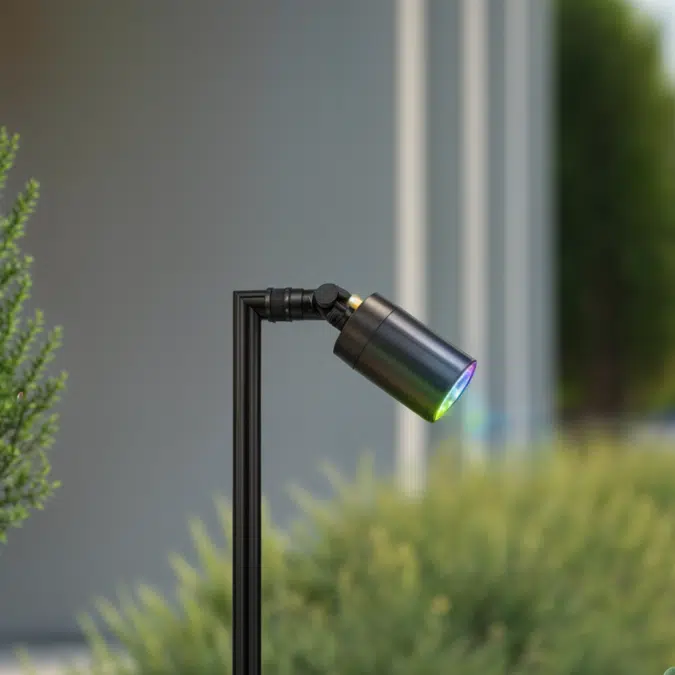

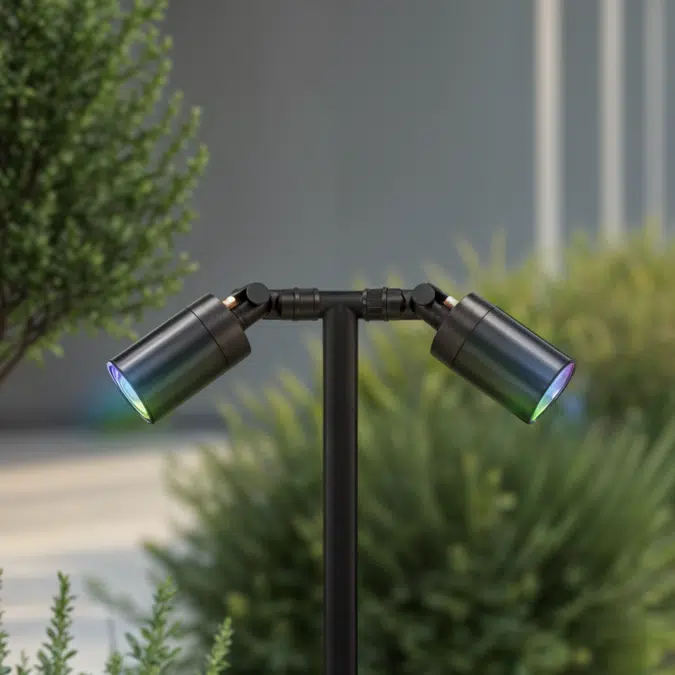

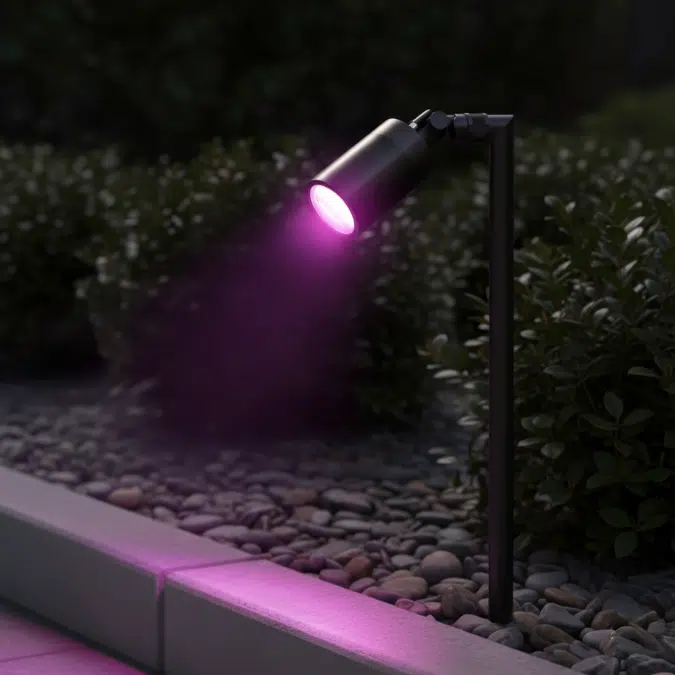

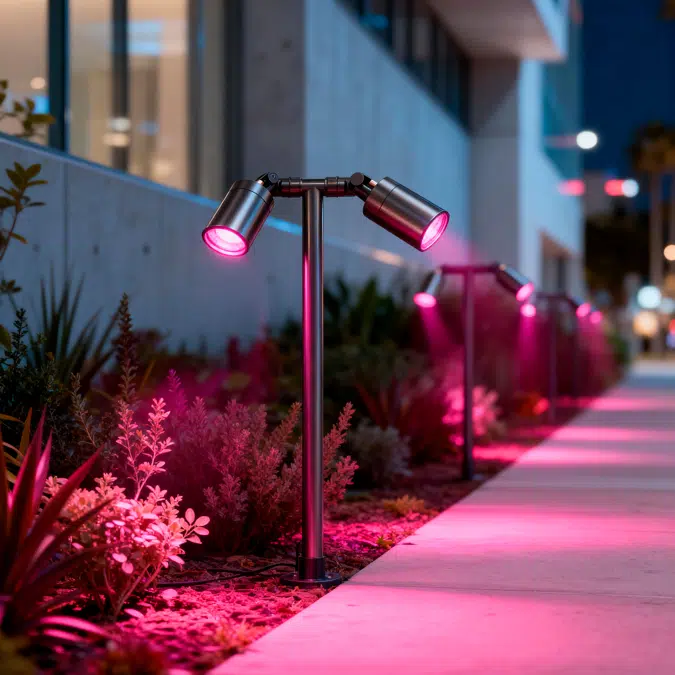

Alcon Lighting’s 9170 RGBW color-changing LED landscape uplight delivers dynamic outdoor lighting with Bluetooth and smart home control via Alexa and Google Home. The corrosion-resistant brass housing, available in gun metal or antique bronze, can be specified with a medium or long shroud to reduce glare and refine light control. A clear glass lens with double silicone gasket ensures durable, weatherproof performance. The replaceable one to six-watt RGB LED module produces 15 to 450 lumens with a standard 38º beam angle, plus optional 15º and 60º optics. This RGBW landscape uplight offers preset color temperatures of 2700K, 3000K, 4000K and 5000K, along with unlimited color wheel options, dimming control and scene programming for up to eight synchronized colors, including music-sync functionality for immersive outdoor lighting experiences.

Voce di capitolato

Construction: Corrosion-resistant cast brass
Finish: Gunmetal

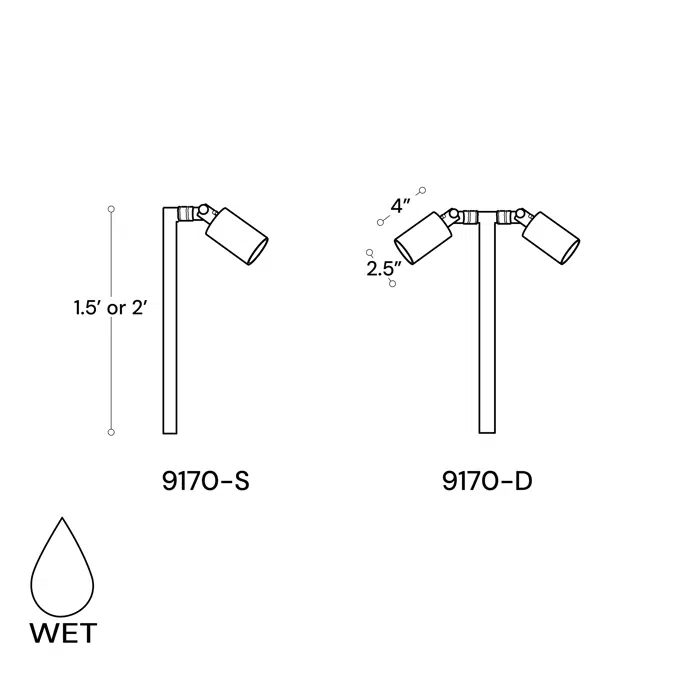

Mounting: 18" single-head post, 18" double-head post, 24" singe-head post, 24" double-head post
Lens: Clear flat (no shroud), clear convex glass (medium/large shroud)
Gasket: Silicone double gasketed for water-tight sealing.
Knuckle: Swivel cast brass with thumb screw and ½" NPT threaded male hub on bottom.
Cord: 10'
Voltage: 12-15V
Lumens: 15-450 lm (RGB+CCT) from 1-6 Watts
Beam spread: 38º (standard), 15º and 60º options included
Color temperature (CCT): 2700K, 3000K, 4000K, 5000K CCT selection with unlimited RGB color wheel options & quick presets; create customizable scenes with up to 8 colors; compatibility with Amazon’s Alexa and Google Home; lights can follow music collected by a phone microphone.
RGBW smartphone app: Bluetooth App for iOS and Android
CRI: 85+
Optional features: Wireless Bluetooth Mesh gateway, Bluetooth range extender
Operating temperature: -40°F to 124°F
Warranty: Five years carefree for parts & components (labor not included)

Specifiche tecniche

Rif. Unico9170-directional-landscape-path-light
Famiglia di prodottoOutdoor Lighting
Gruppo di famigliaLandscape Lighting
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-11-21
Numero di versione1

Links

Link al Prodottohttps://www.alconlighting.com/catalogsearch/result/?q=9170
Istruzioni di installazionehttps://www.alconlighting.com/specsheets/alcon/9170_Tuya%20Smart%20RGBW%20App%20Installation.pdf
Descrizione Tecnicahttps://www.alconlighting.com/specsheets/alcon/9170_specification-sheet.pdf
