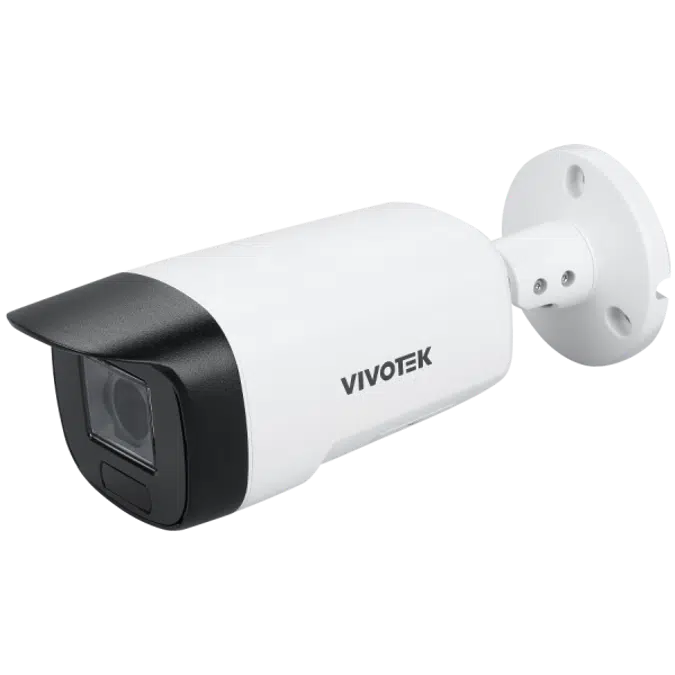

Objets BIM - Téléchargement gratuit ! IB9389-EHV-V3 5MP Bullet Camera

System Information
- CPU: Multimedia SoC (System-on-Chip)
- Flash: 8 GB
- RAM: 2 GB
Camera Specifications
- Image Sensor: 1/2.8" Progressive CMOS
- Max. Resolution: 2560x1920 (5MP)
- Lens Type: Fixed-focal
- Focal Length: f = 2.8 mm
- Aperture: F2.0
- Iris Type: Fixed iris
- Field of View:
  - Horizontal: 103.4°
  - Vertical: 75.3°
  - Diagonal: 135.2°
- Shutter Time: 1/5 sec. to 1/32,000 sec.
- WDR Technology: WDR Pro
- Day/Night: Yes
- Removable IR-cut filter: Yes
- Illuminators: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
- Minimum Illumination:
  - Color: 0.055 lux @ F2.0
  - B/W: 0.005 lux @ F2.0
  - 0 lux with IR illumination on
- Tilt Range: 80°
- Rotation Range: 350°
- Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
- Built-in Installation Aids: Pixel calculator
Video
- Compression: H.265, H.264, MJPEG
- Maximum Frame Rate: 30 fps @ 2560x1920 (5MP)
- Maximum Streams: 3 video streams (Up to 8 configurable profiles)
- Main Stream:
  - 30fps @2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  - 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  - 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
- 2nd Stream:
  - 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  - 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  - 60 fps @ 1280x720, 640x360 (16:9)
- 3rd Stream:
  - 30fps @ 1280x960, 800x600, 640x480 (4:3)
  - 30 fps @ 1280x720, 640x360 (16:9)
  - 60 fps @ 1280x720, 640x360 (16:9)
- S/N Ratio: 55 dB
- Dynamic Range: 120 dB
- Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings:
  - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  - Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
  - Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
  - Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  - Focus: zoom, focus
  - Privacy mask
  - pixel calculator
  - Scheduled profile settings
- Display Mode: HDMI output (type D; 1080p/720p @30/25fps(60/50Hz))
Audio
- Audio Capability: Two-way audio (Full duplex)
- Compression: G.711, G.726, MPEG-2 AAC-LC
- Interface:
  - Built-in microphone
  - External microphone Input
  - External line output
- Effective Range: 5 meters
Network
- Users: Live viewing for up to 10 clients
- Security: Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)
- Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
- Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF: Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
- Compute Capability: SoC with built-in hardware deep learning accelerator
- Vision Object Analytics:
  - Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
  - Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
  - Re-Search Extraction: Path Extraction
- Application:
  - Deep Learning VCA (Smart Motion Detection, Smart VCA)
  - Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter)
  - Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
  - Application available with license: Running detection, Parking Violation Detection, Restricted Zone Detection
- RealSight Engine: Smart IR III, Deblur, WDR, White Balance, Exposure Control
Solution Integration
- VADP Package: Trend Micro (Default, 3-year free trial)
- Video Motion Detection: Motion Detection (Five-window video motion detection)
Alarm and Event
- Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Event Action: Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
- File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
- Connectors:
  - RJ-45 cable connector for 10/100 Mbps Network/PoE connection
  - Audio line input
  - Audio line output
  - Digital input: 1
  - Digital output: 1
- LED Indicator: System power and status indicator
- Power Input: IEEE 802.3af PoE Class 3
- Power Consumption: Max. 12.4W/ 9.6W (IR on/off)
- Dimensions: ø 92 x 258.5 mm
- Weight: 1.03 kg
Certifications
- EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
- Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471), UKCA (BS EN IEC 62368-1)
- Environment: IK10 (IEC 62262), IP66, IP67 (IEC 60529), IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
- Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Working Temperature:
  - -35°C ~ 60°C (-31°F ~ 140°F) (IR off)
  - -35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity
- 98% RH (non-condensing)
System Requirements
- Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
- Web Browser: Chrome 58.0 or above
- Other Players: VLC: 1.1.11 or above
Included Accessories
- Packing Contents: Quick installation guide, alignment sticker, screw pack, cable gland
DORI (EN 62676-4 Standard)
- Detection (25PPM/ 8PPF): 60.4 m (198.1 ft)
- Observation (63PPM/ 19PPF): 24.1 m (79.2 ft)
- Recognition (125PPM/ 38PPF): 12 m (39.5 ft)
- Identification (250PPM/ 76PPF): 6.0 m (19.6 ft)
