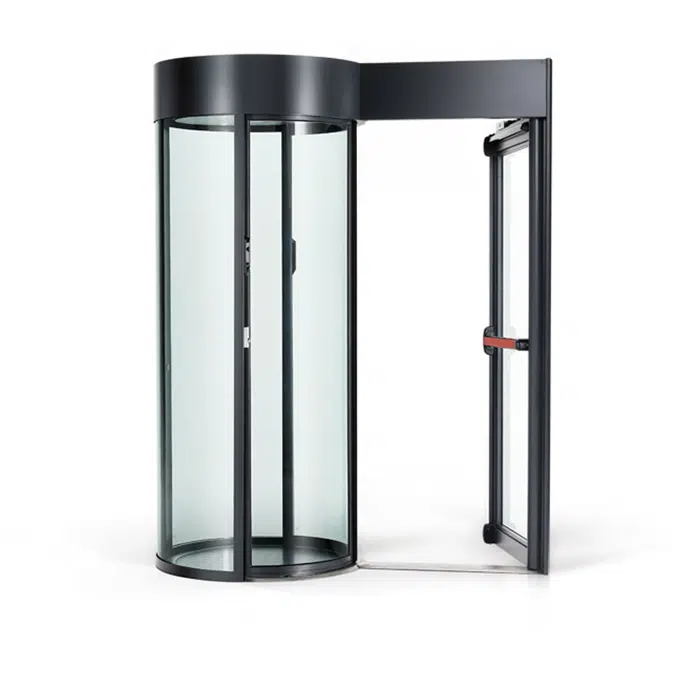

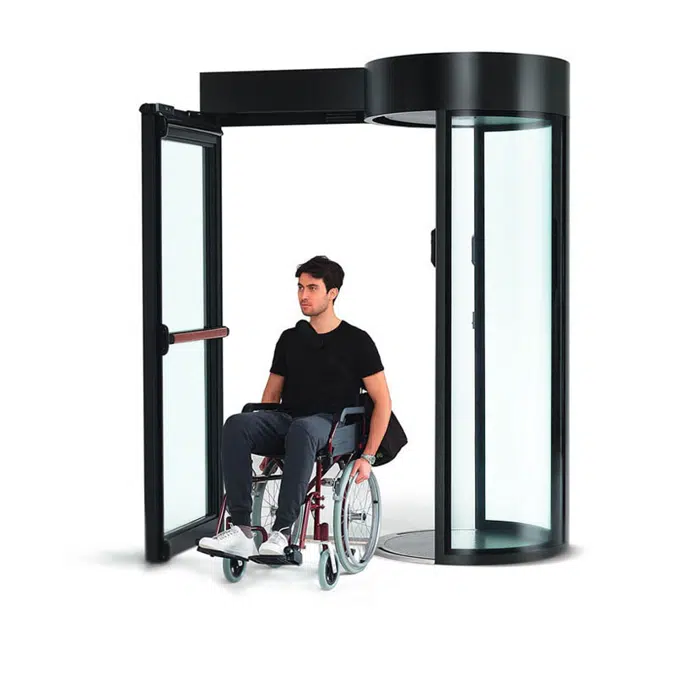

Alluser C5 – Cylindrical Security Portal with Dual Access

Dimensions:
Overall Width: 1250 mm
Cabin Diameter: 820 mm
Clear Entrance (automatic door): 590 mm
Clear Entrance (swing door): 805 mm
Combined Passage Width: 1210 mm
Internal Height: 2048 mm
External Height: 2320 mm R version

Standard features:
RAL powder-coated outer finish (pearl colours optional)
LED lighting system (3000 K, 50,000-hour lifespan)
Infrared presence and safety sensors
Automatic curved sliding door and swing door, fail secure
Emergency unlocking system (via swing door/manual release)
LED traffic lights on both secure and non-secure sides
Alluser interlocking motherboard with APS software

Glazing options:
P2A standard glass (EN 356)
P4A / P6B anti-vandal glass (EN 356)

Available Options:
APD: Anti-Piggybacking Device (ultrasonic sensor system)
Brushed or polished stainless steel / aluminium finishes
Web LAN control module
Additional control panel and service mode key switch
Pressure mat, 2-zone contact mat, reed tamper sensor
Rescue push-button (to safely reopen last door)

Available versions:
C5-R: Raised base version with 12 mm guide rail for surface mounting
C5-K: Modular kit version for on-site assembly

Typical applications:
Corridors and data centers
Airports and embassies
Banks and museums
Government buildings and sensitive infrastructures
High-security entry points with inclusive access requirements
