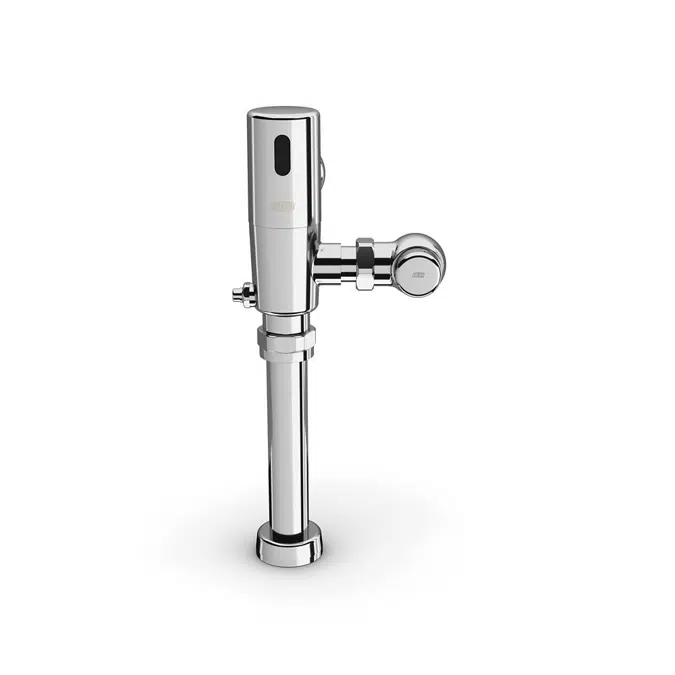

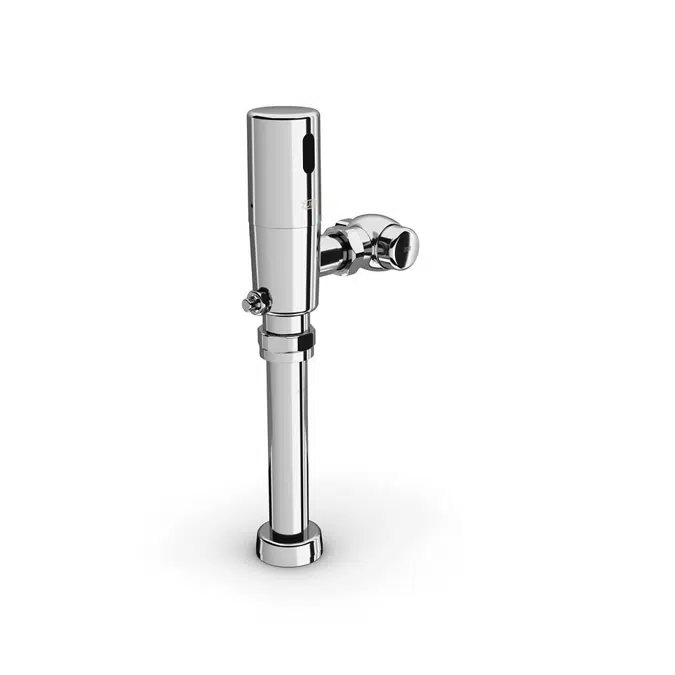

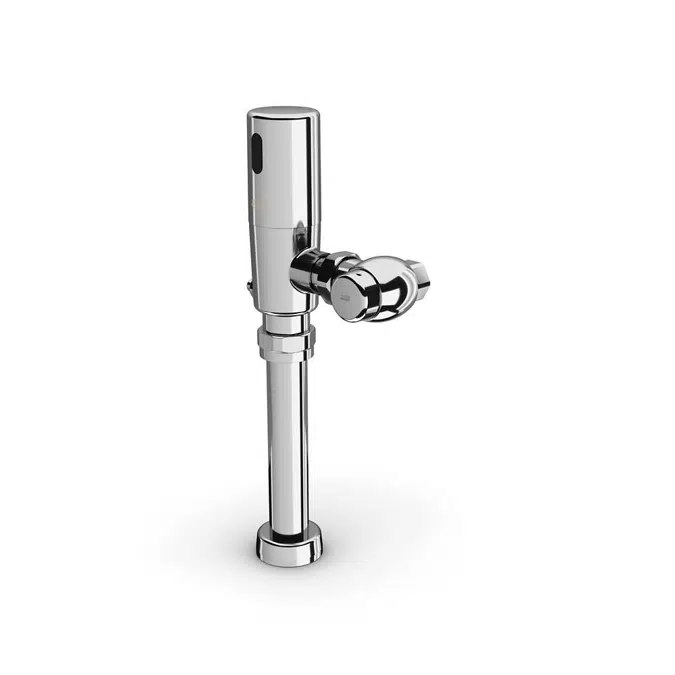

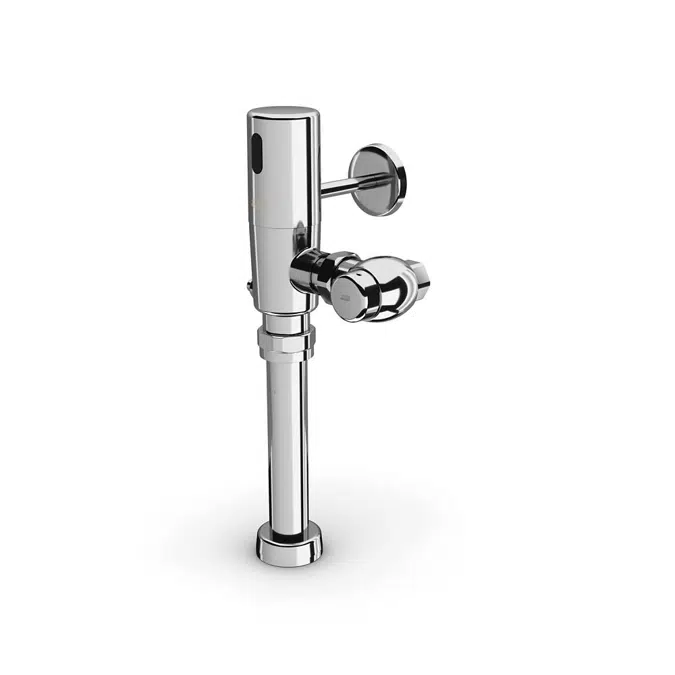

    ZTR6200 Sensor Flush Valve for Water Closets

    Exposed chrome plated flushometer valve with a polished robust metal cap design.

    Compliance:

    • ADA Compliant
    • ASSE 1037 / ASME A112.1037 / CSA B125.37
    • ASSE 1037
    • CSA B125.37
    • IAPMO R&T
    • cUPC

    Features:

    • Filtered Piston Kit Chloramine resistant
    • Proprietary DR resistant low lead brass alloy
    • Actuator Sensor powered by 4 "AA" batteries 3 year battery life on 48,000 activations per year

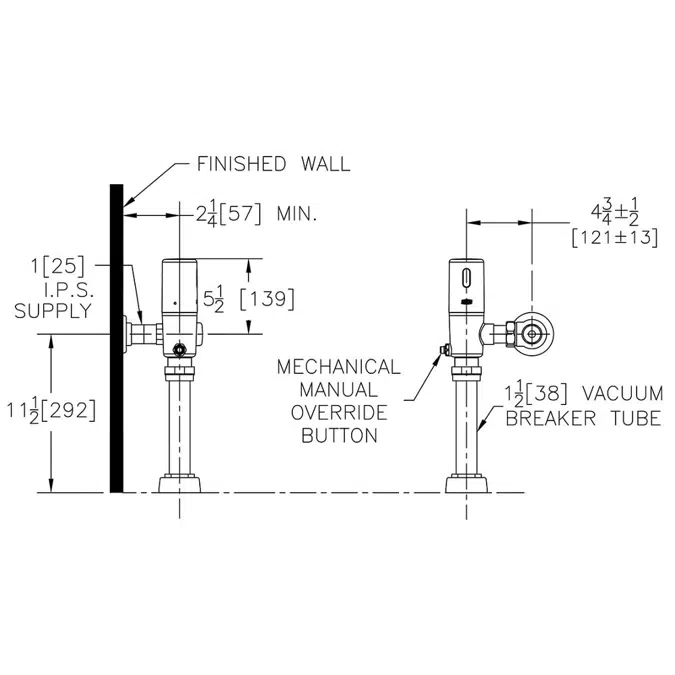

    • Mechanical Manual Override Button
    • Control Stop Internal siphon-guard protection Vandal resistant stop cap Sweat solder kit Cast wall flange with set screw
    • Vacuum Breaker High back pressure One piece hex coupling nut
    • Internal seals Chloramine resistant
    • Adjustable tailpiece
    • Spud coupling and flange for top spud connection

    Keywords: Zurn Flush Valve Zurn ZTR Water Closets Dual Flush Top Mount, zurn piston flush valve, zurn flush valve, Kitchen faucet, Kitchen Goosneck Faucet

    Technical specification
    • Unique ref.zurn-ztr6200
    • Product familyFinish Plumbing - Flush Valves
    • Product groupZTR Series
    • TypeObject (single object)
    • Date of publishing2025-03-26
    • Edition number1
    • Height (inches)17
    • Width (inches)9
    • Depth (inches)5
    Related
    • Material mainBrass
    • Designed inUnited States
    • Weight Net (Lbs)8
    Classification
    • BIMobject CategoryPlumbing - Valves
