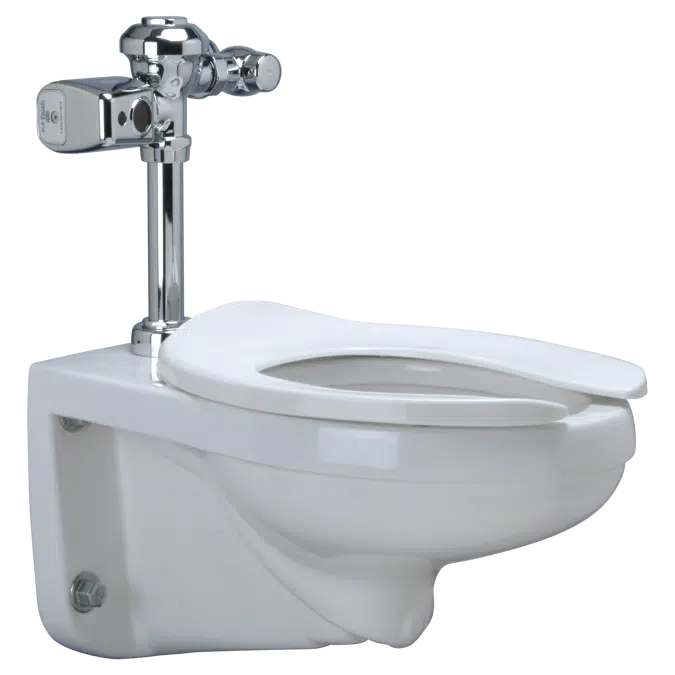

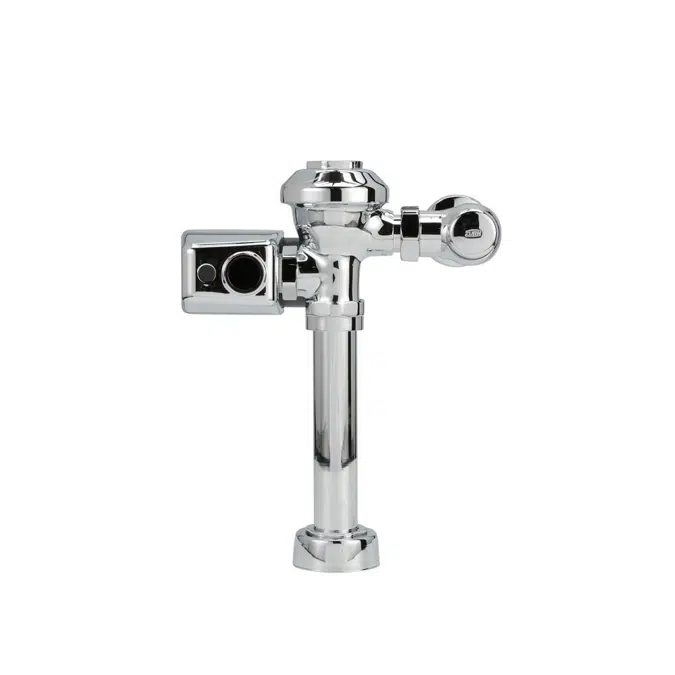

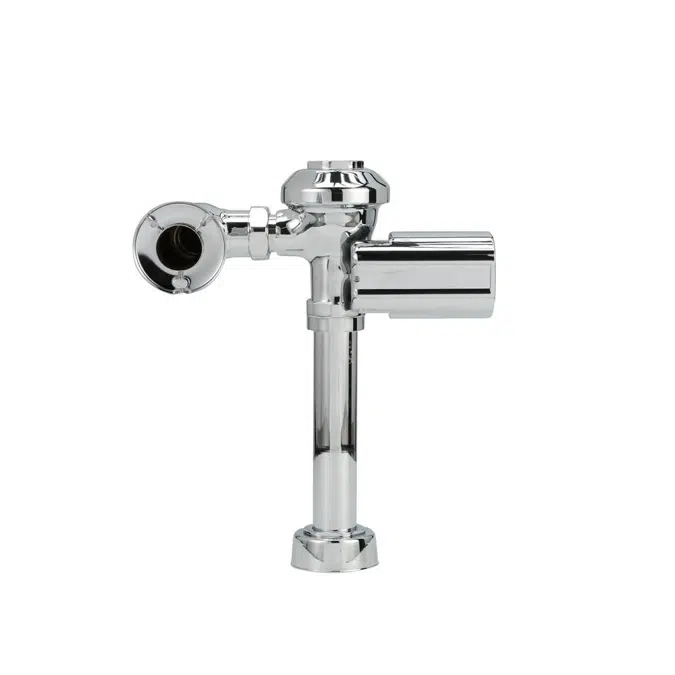

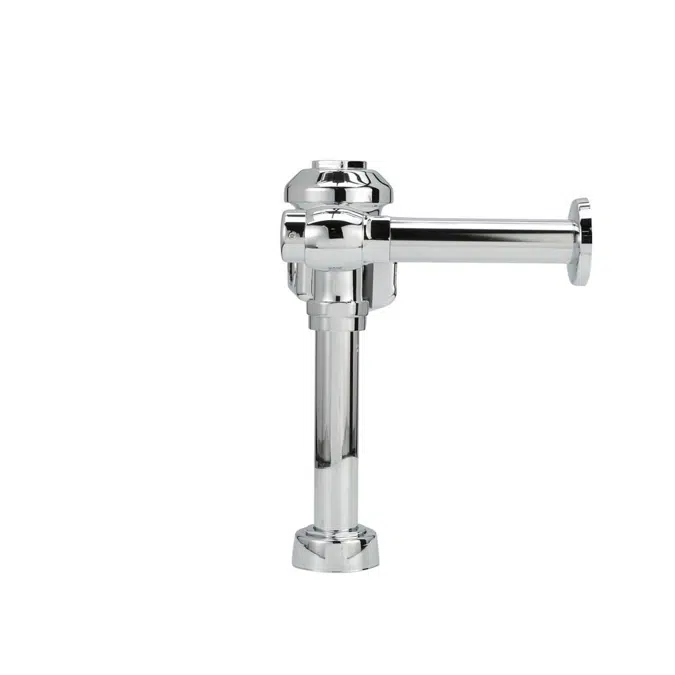

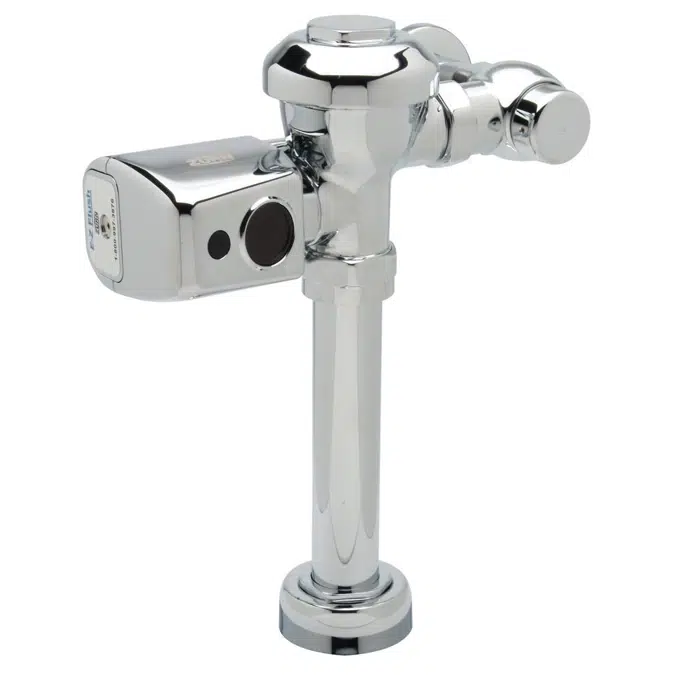

ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
    Zurn

    ZER6000AV-CPM AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets

    Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with Zurn's AquaVantage TPE, chloramine resistant, dual seal diaphragm with a clog resistant, triple filtered by-pass. The unit features a 6VDC motor actuator with automatic infrared sensor, user-in view L.E.D., low battery indicator light, switchable 24 hour auto-flush and three second delay flush to deter false flushing, 10 degree angled sensor for optimum user detection, courtesy flush button, high impact resistant polycarbonate housing, impact resistant glass lens and chrome plated metal cover. The unit comes complete with 4 "C" size batteries, wrench for installation and allen key for the battery compartment. The E-Z Flush electronics are ultra energy efficient for optimal battery life. This unit incorporates a high back pressure vacuum breaker, one piece hex coupling nut, adjustable tailpiece, spud coupling and flange for top spud connection. Control stop has internal siphon-guard protection, vandal resistant stop cap, sweat solder kit, and a cast wall flange with set screw. Internal seals are made of chloramine resistant materials.
    Specification

    • Using an RFA Family with Type Catalog:

      Please download and save the type catalog, TXT, in the same location as the RFA family. In a Revit project or template, select the Insert tab from the Library panel, Load Family. Navigate to the location of the RFA and TXT files and select the family RFA to load.

    Technical specification
    • Unique ref.zurn-zer6000av-cpm
    • Product familyFinish Plumbing - Flush Valves
    • Product groupAquaVantage®
    • TypeObject (single object)
    • Date of publishing2014-09-29
    • Edition number1
    Links
    Related
    • Material mainBrass
    • Designed inUnited States
    Classification
    • BIMobject CategoryPlumbing - Valves
