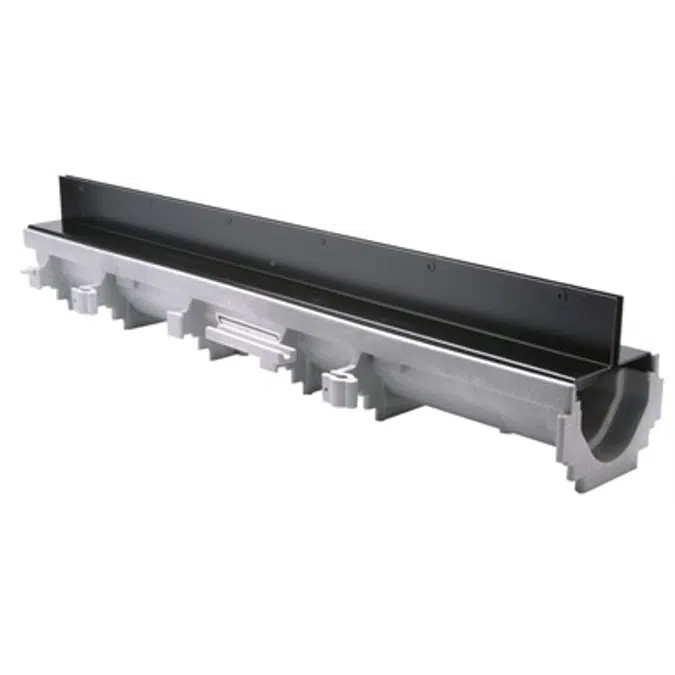

Z886-PVS Reveal Perma-Trench® Linear Trench Drain System

The Zurn Z886-PVS Channels is 80” long, with 0.375 wide slot and have a 4” throat. Modular channel sections shall be made of 0% water absorbent High Density Polyethylene (HDPE). Shall have a positive mechanical connection between channel sections that will not separate during the installation and shall mechanically lock into the concrete surround a minimum of every 10”. Channels weigh less than 2.31 lbs. per linear foot, have a smooth, 1.5 radiused self-cleaning bottom with a Manning’s coefficient of 0.009 and 0.75% or neutral 0% built in slope. Channels shall have rebar clips standard to secure trench in its final location. Shall be provided with standard PVS non-removable grates. Zurn 0.375 wide reveal and 2.75 tall fabricated Steel Paver Slot grate with Ductile Iron reinforcing conforming to ASTM specification A536-84, Grade 80-55-06. is rated class B per the DIN EN1433 top load classifications. Supplied in 40” nominal lengths with 0.75 bearing depth. Grate has an open area of 4.5 sq. in per ft.

FEATURES AND BENEFITS

*  Saves labor up to 75% - Lightweight durable Polyethylene Construction

*  Integral rebar clips for elevation set

*  Longer, lightweight sections

*  Mechanical interlocking connections

Additional model(s) available

Z886-PVSS-OFFSET
