Z1305 Ecolotrol® Wall Hydrant Encased, Non-Freeze
Zurn

Z1305 Ecolotrol® Wall Hydrant Encased, Non-Freeze

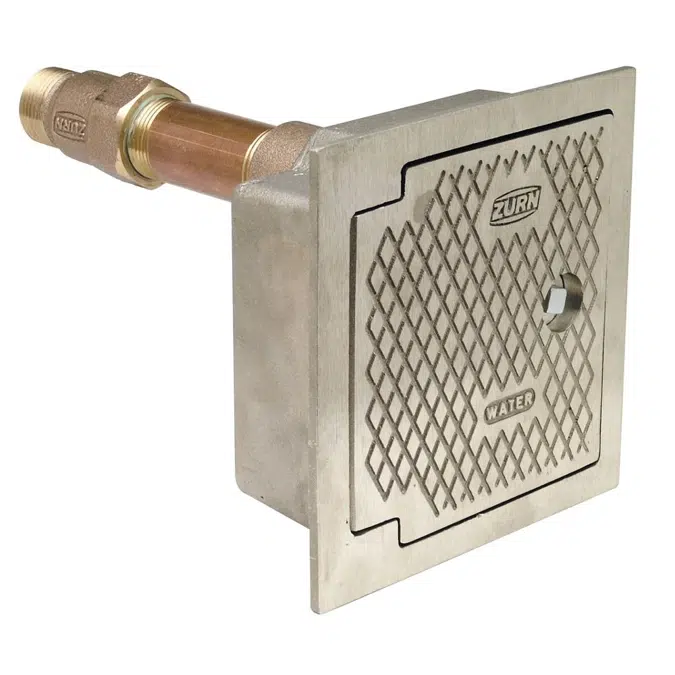

ZURN Z1305 Encased, non-freeze, flush wall hydrant with bronze casing, all bronze interior parts, non-turning operating rod with free floating compression closure valve, replaceable bronze seat and seat washer, and combination 3/4" female or 1" male straight IP inlet. Nickel bronze box and hinged cover with operating key lock and "WATER" cast on cover.

Compliance:

  • City of Los Angeles Approved
  • Massachusetts MA approved

Keywords: Wall Hydrant Encased, Ecolotrol Wall Hydrant, non-freeze flush wall hydrant, wall hydrant for flush installation, Zurn Z1305 wall hydrant, Ecolotrol non-freeze hydrant, Zurn encased flush hydrant, bronze wall hydrant,58868, Z1305, Z-1305,1305,305

Specification

  • Using an RFA Family with Type Catalog:

    Please download and save the type catalog, TXT, in the same location as the RFA family. In a Revit project or template, select the Insert tab from the Library panel, Load Family. Navigate to the location of the RFA and TXT files and select the family RFA to load.

Technical specification
  • Unique ref.zurn-z1305
  • Product familyHydrants & Water Hammer Arrestors
  • Product groupEncased Wall
  • TypeObject (single object)
  • Date of publishing2018-05-08
  • Edition number1
  • Height (inches)7
  • Width (inches)8
  • Depth (inches)7
Links
Related
  • Material mainBronze
  • Designed inUnited States
  • Weight Net (Lbs)11
Classification
  • BIMobject CategorySanitary - Taps & Mixers
  • UNSPSC nameHydrants
  • UNSPSC code40141726
  • CSI MasterFormat 2014 Code40 05 81
  • CSI MasterFormat 2014 TitleHydrants and Hose Bibbs for Process Service
