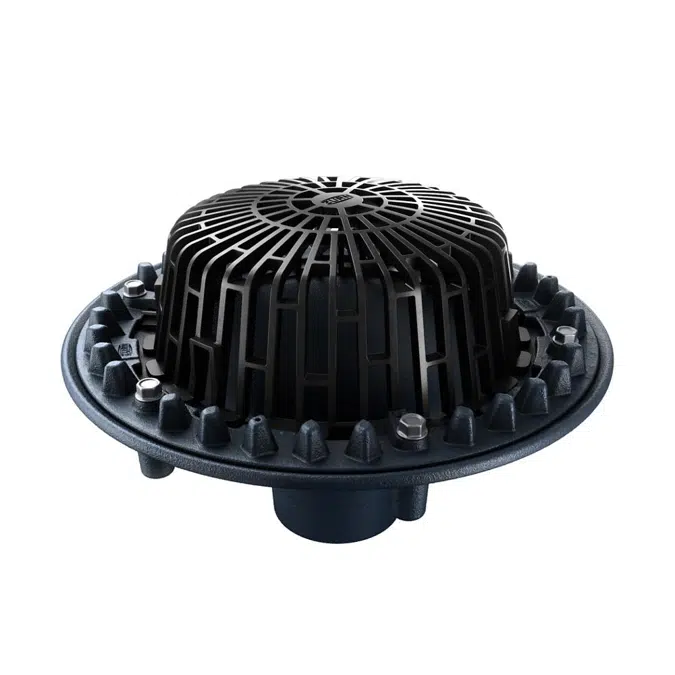

Z100F FloForce® High Performance Roof Drain

Z100F FloForce® High efficient flow performing roof drain. Roof drain engineered to evacuate water off of roof structure by incorporating a smooth funnel shaped interior surface, providing a seamless transition to outlet connection, and eliminating internal obstructions. Complete with Dura-Coated cast iron body with combination membrane flashing clamp/gravel guard and low silhouette Poly-Dome. Flashing clamp/gravel guard provided to prevent debris from entering the drain while allowing water to immediately pass through at zero head level. Poly-dome designed to maximize effective open area and promote efficient flow.

Compliance:

City of Los Angeles Approved, Massachusetts Approved, ASME A112.6.4/CSA B79.4, cUPC Listed, IPC, NPCC

Features:

• Parabolic design creates laminar flow and evacuates water off the roof at lower head depths to create safer environment
• Improved flow performance provides a more efficient system
• Unique dome and gravel guard design increase open area to maximize water drainage while limiting debris
• Lean body and ladder pattern inhibit obstructions to slow things down
• Optimized body with partially recessed installation depth, sculpted waterfall shape, circular-cut edge, and bosses moved outside of flow path
• Teardrop-shaped gravel guard - smooth V-notch openings more than tripled the quantity of openings compared to a traditional design
• Greater open area per inch of dome height, with staggered horizontal ribs which reduce isolated flow restrictions • Greater open area per inch of dome height
