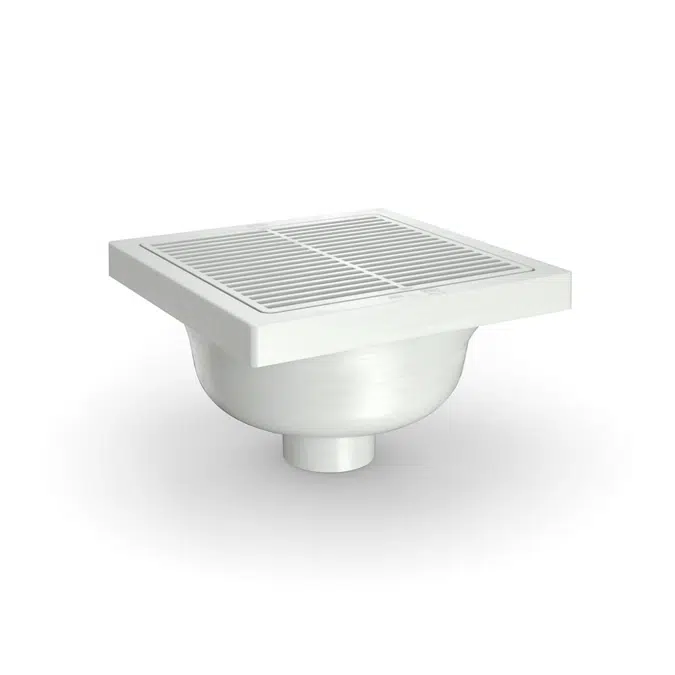

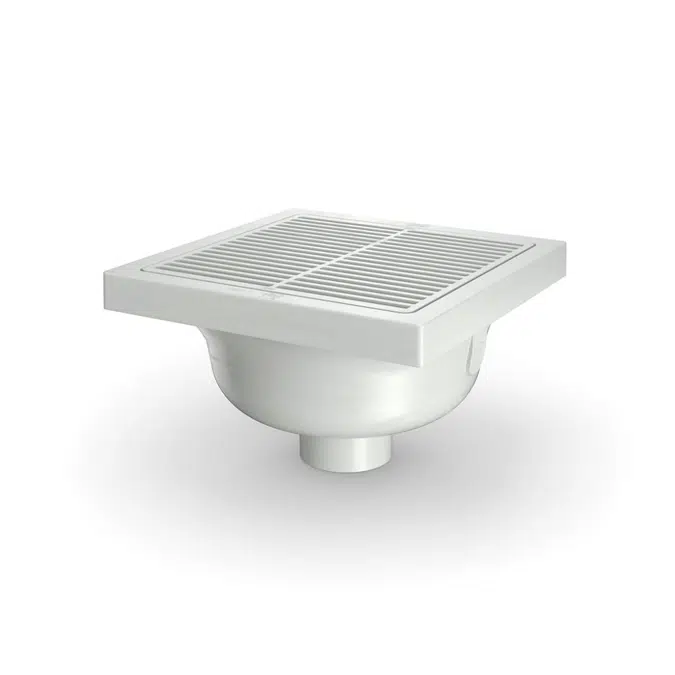

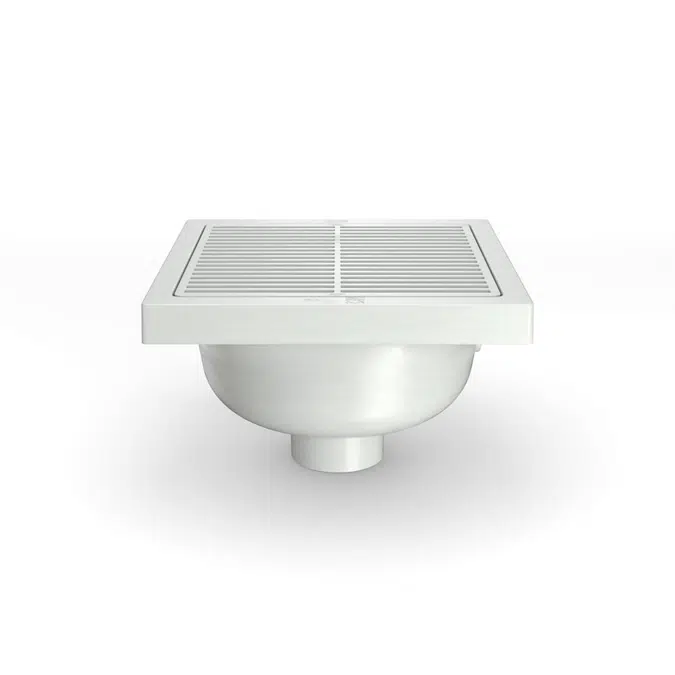

FS12 Square Polymer Floor Sink

Sanitary PVC floor sink with 14” [305 mm] square top x 6-3/8 [162 mm] deep sump with smooth internal surface, and Sani-Loc dome
strainer, designed in accordance to ASME A112.6.7 & CSA B45.5/IAPMO Z124 standards. All full grates are rated medium-duty unless
otherwise noted.

Compliance:

• Massachusetts MA approved
• ASME A112.6.7
• CSA B45.5 / IAPMO Z124
• UPC
• IPC
• NPCC

Features:

• Dome strainer comes secured to prevent debris from clogging pipe lines and prevents misplacement
• Full grates are rated medium-duty load rating, available in full or half grates with nickel or stainless steel veneers available
• Optional plastic sediment bucket is designed to fit with the dome strainer in place adding extra drain line protection
• Patent Pending 1-1/2" lip allows for installation 1" above finished floor to protect against indirect waste if required by code
• Ergonomic design and smooth edges allows for easy debris removal and cleaning
• Patent Pending design for jobsite flexibility and intuitive installation
• Nickel and Stainless steel grates are designed for flush to finished floor installation
• ASME A112.6.7 and CSA B45.5/IAPMO Z124 certified

keywords: polymer floor sink, high capacity floor drain, condensate lines, ice machine drain, 3 compartment sink drain, floor sink, plastic floor sink, deep sump drain, sump drain, medium duty drain, PVC floor sink, floor sink, receptor, polymer receptor, square floor sink, round floor sink, square plastic drain, round plastic drain

Additional Models Available

FS12-6-PV2, FS12-6-PV3, FS12-6-PV4
