Z899-EL Elevator Drain 100 GPM Threshold
Z899-EL Elevator Drain 100 GPM Threshold
    Zurn

    Z899-EL Elevator Drain 100 GPM Threshold

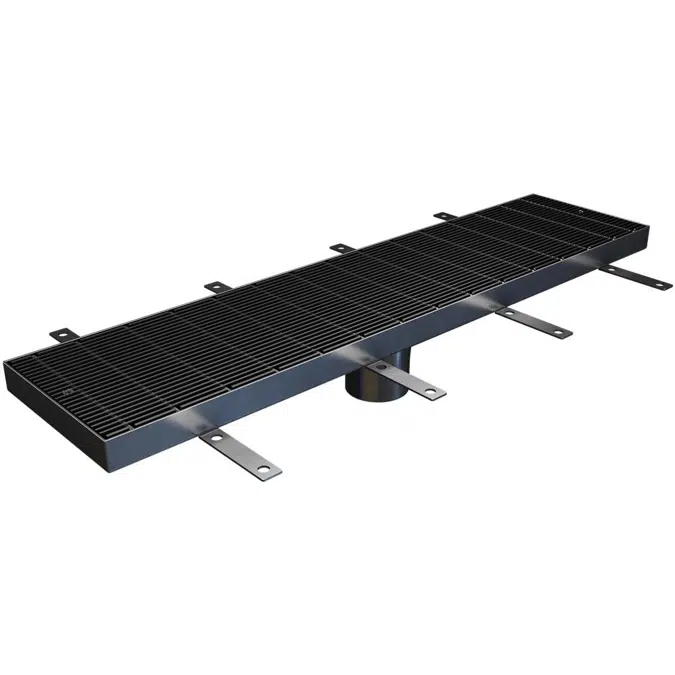

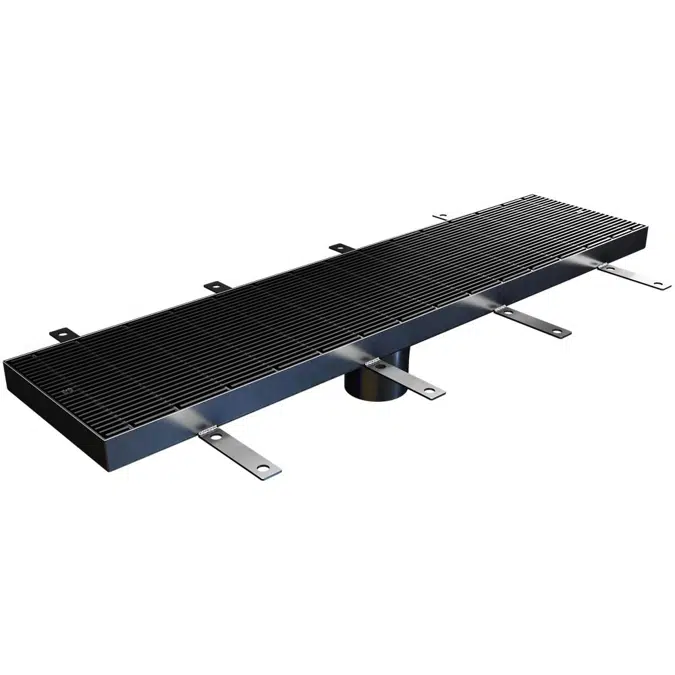

    Zurn Z899-EL stainless steel channel made of #12 gauge fabricated stainless steel conforming to ASTM A-240 (type 304) with outlet and anchor straps. FSAE/OEE trench drain is engineered to enhance flow through the system through use of flow directing ribbing structure. Standard grate to be stainless steel wire grate (-SWG) conforming to ASTM A-240 (type 304), with vandal proof grate lock downs, meets ADA and heel-proof requirements, and is rated as Class A per DIN EN1433 load classification, in addition to being tested to 2500 lbs per ASME A112.6.3. Optional fabricated stainless steel grate (-FS) available, conforming to ASTM A-240 (type 304), with vandal proof grate lock downs, meets ADA and heel-proof requirements, and is rated as Class A per DIN EN1433 load classification, in addition to being tested to 2500 lbs per ASME A112.6.3.
    Features
    • Evacuates water at 100 GPM
    • Made to Order in 8", 10", 12" Nominal Widths
    • Shallow drain body for use in shallow, post-tension concrete decks
    • Custom designs available for architectural aesthetics
    • Building code compliant
    • Stainless steel construction
    • System designed to comply with SFFC Code, Section 511.1 for a 100 GPM flow rate
    • Replaces Z895-94 and Z899
    • Patent Number: U.S. 9,777,489
    keywords: Z899-EL
    Technical specification
    • Unique ref.Z899-EL
    • Product familyLinear Trench Drain Systems
    • Product groupElevator & Threshold
    • TypeObject (single object)
    • Date of publishing2026-01-23
    • Edition number1
    Links
    Related
    • Designed inUnited States
    Classification
    • BIMobject CategoryPlumbing - Drainage
