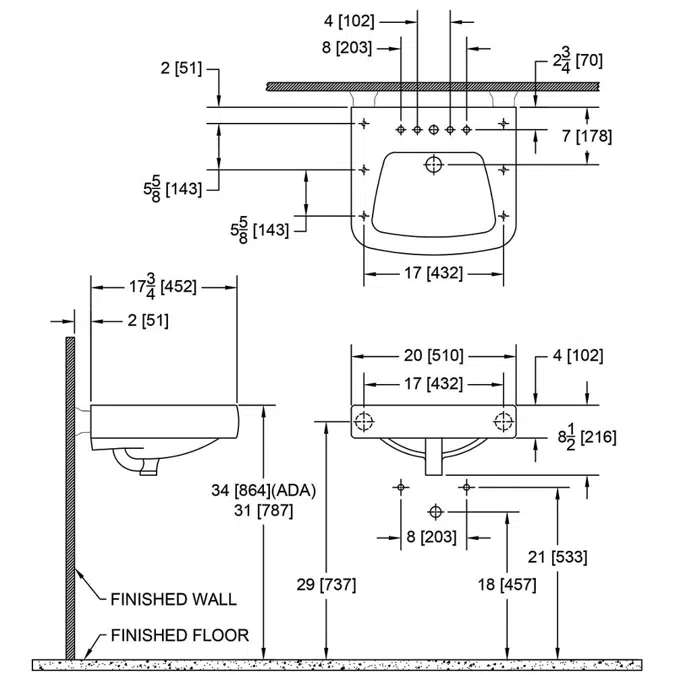

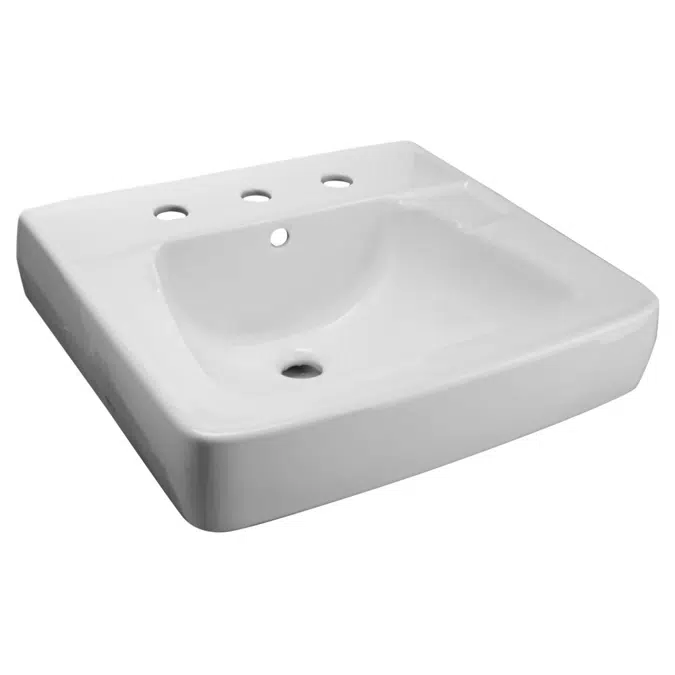

Z5310 Wall Hung Lavatory Series

20" [508 mm] x 18" [457 mm] vitreous chinawall hung lavatory with rear overflow and 8" [203 mm] center faucet holes. Provided with holes for concealed or exposed arm carrier systems.

Compliance:

• ASME A112.19.2/CSA B45.1
• CSA B45.1

Features:

• 20" [508 mm] x 18" [457 mm]
• Vitreous china
• Faucet holes for single, 4" [102 mm] or 8" [203 mm] centers
• Available with right or left side soap hole punching (Single or 4” centers only)
• Rear overflow
• Wall hung lavatory for use with concealed or exposed arm carrier systems
• Waste: 1-1/4" [32 mm] O.D.
• Depth: 6-3/4" [171 mm]
• Shipping Weight: 35 lbs [16 kg]
