FD2321-ST Low Profile Finished Area Floor Drain with Square Top
Zurn

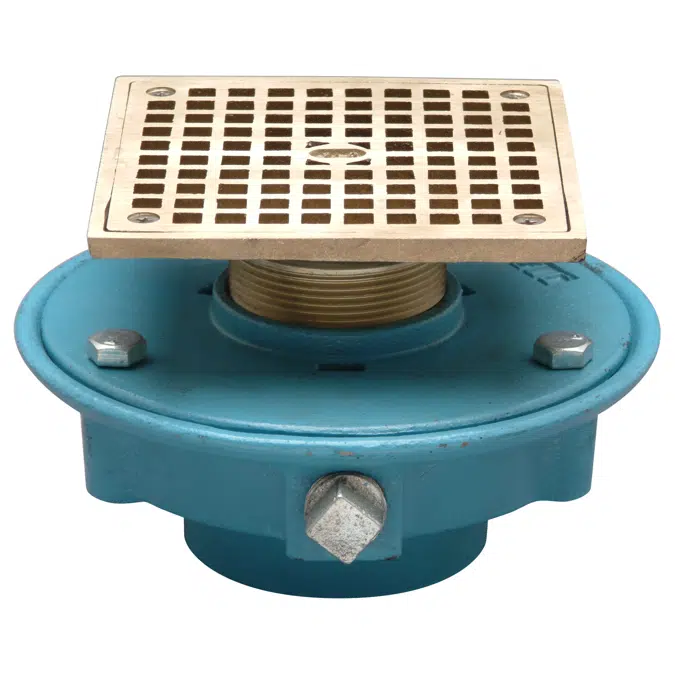

FD2321-ST Low Profile Finished Area Floor Drain with Square Top

FD2321-ST low profile finished area floor drain with square top is recommended for finished floor areas where a membrane is generally used. This drain is designed for foot traffic and light cart applications. Complete with cast iron body, clamping collar and adjustable nickel bronze strainer assembly.

  • Recommended in finished floor areas where a membrane is generally used
  • Designed for foot traffic and light cart applications
  • Dura-Coated cast iron body, clamping collar, and nickel bronze strainer
  • 1/2" trap primer connection provided with plug
Specification
  • Low profile finished area floor drain with square top is recommended for finished floor areas where a membrane is generally used. This drain is designed for foot traffic and light cart applications. Complete with cast iron body, clamping collar and adjustable nickel bronze strainer assembly, 1/2" trap primer connection provided with plug.

Technical specification
  • Unique ref.FD2321-ST
  • Product familyDeck Waste Water Drains
  • Product groupFloor Drains
  • TypeObject (single object)
  • Date of publishing2023-07-18
  • Edition number1
  • Width (inches)7
  • Depth (inches)7
Related
  • Material mainCast iron
  • Material secondaryNickel
  • Designed inUnited States
Classification
  • BIMobject CategoryPlumbing - Drainage
  • Uniclass 2015 CodeSs_30_75
  • Uniclass 2015 DescriptionRoof, floor and paving drainage systems
  • CSI MasterFormat 2014 Code22 14 26.16
  • CSI MasterFormat 2014 TitleFacility Area Drains
  • OmniClass Number23-31 27 00
  • OmniClass TitleFloor Drains
