Entrance grating A33x11, Adjustable legs 135-185 mm

Entrance grating A33x11, Adjustable legs 135-185 mm

Entrance grating A33x11, Adjustable legs 135-185 mm

Entrance grating A33x11, Adjustable legs 135-185 mm

Entrance grating A33x11, Adjustable legs 135-185 mm

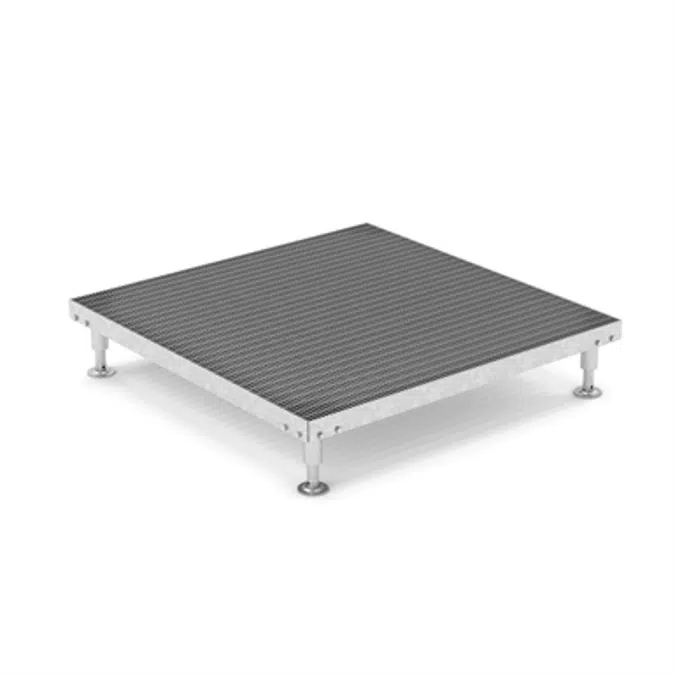

A smaller, freestanding entrance grating with adjustable legs, as well as some of our associated and stocked frames. Suitable for entrances with a slight height difference between ground and entrance floor. The entrance grating is constructed from flat bars running in both directions. Choose from a number of different stocked formats.

Specification

Entrance grating type A
Mesh width: 33x11 mm, surrounded by a 50 mm deep edge bar
Grating height: 25 mm
Grating incl. 4 adjustable support legs 135-185 mm
Weight: 40 kg/m2
All material is hot-dip galvanised

Technical specification

Unique ref.entrance_grating_a33x11_legs_135-185
Product familyFlooring
Product groupEntrence Grating
TypeObject (single object)
Date of publishing2018-04-26
Edition number1

Links

Product urlhttps://www.weland.com/en/products/gratings/entrance/
Product certificationhttps://www.weland.com/wp-content/uploads/2020/09/byggvarudeklaration-en-gb.pdf
Technical descriptionhttps://www.weland.com/en/products/gratings/planning-and-design/

Related

Material mainGalvanized steel
Designed inSweden
Manufactured inSweden

Classification

BIMobject CategoryFlooring - Entrance Flooring
IFC classificationFurnishing Element
CSI MasterFormat 2014 Code12 48 23
CSI MasterFormat 2014 TitleEntrance Floor Grids

Region availability

Europe
Denmark
Finland
Germany
Iceland
Norway
Sweden
