Lead Free* Temperature and Pressure Relief Valves - LF10L

Lead Free* Temperature and Pressure Relief Valves - LF10L

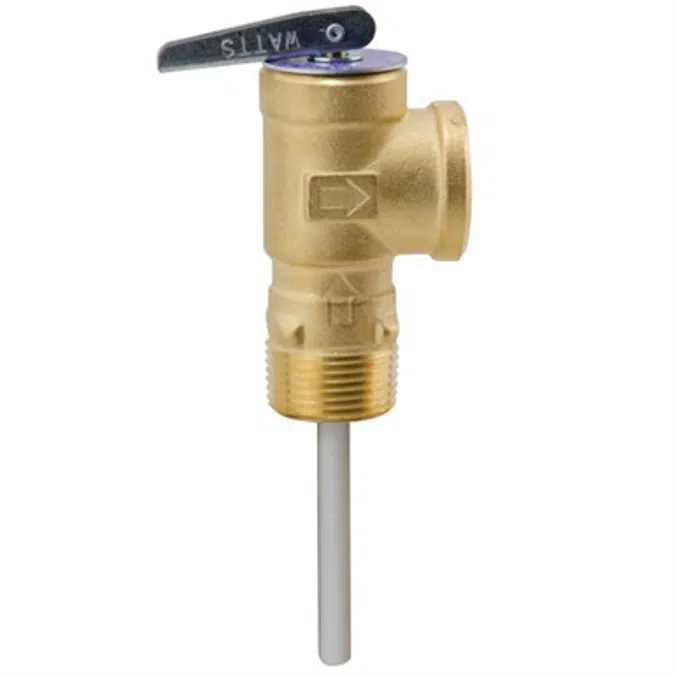

Model LF10L Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Model LF10L is ASME rated and CSA listed. Temperature Relief: 210°F (99°C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

Specification

Body Material: Lead Free* copper alloy body
Connection Size: 1/2", 3/4"
Connection Type: Threaded connections
Industry Standards: A.S.M.E. Rated**, CSA Listed
Working Pressure: Standard settings 75, 100, 125, 150psi (5.3, 7.0, 8.8, 10.6 bar).
Maximum Working Temperature: 210°F (99°C).

Technical specification

Unique ref.7659
Product familyWater Safety & Flow Control
Product groupValves for Liquid Services
TypeObject (single object)
Date of publishing2015-08-11
Edition number1

Links

Product urlhttp://www.watts.com/pages/_products_details.asp?pid=7659
Product certificationhttp://www.watts.com/pages/_products_details.asp?pid=7659#approvals

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Valves

Region availability

North America
Canada
United States
