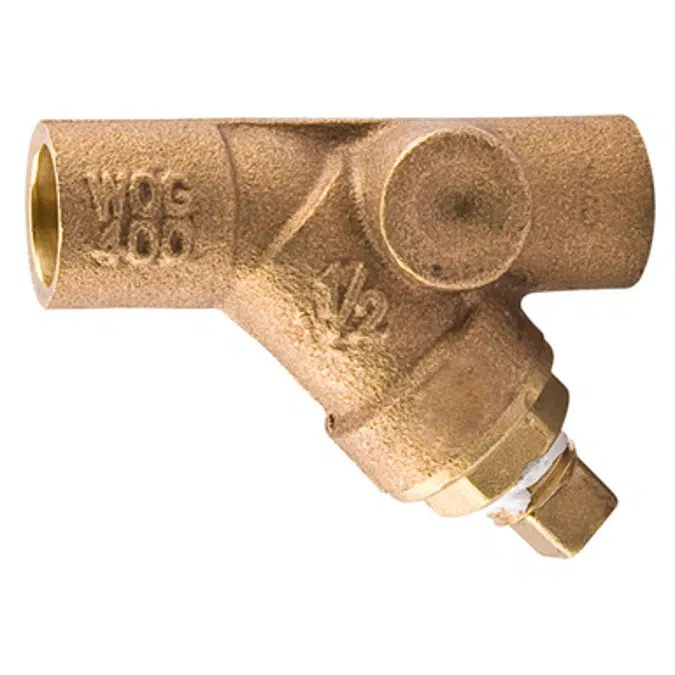

Lead Free* Brass, Wye-Pattern Strainers with Tapped Retainer Cap - LF777SI, LFS777SI

Lead Free* Brass, Wye-Pattern Strainers with Tapped Retainer Cap - LF777SI, LFS777SI

Series LF777SI, LFS777SI Lead Free* Brass Wye-Pattern Strainers feature a wye-pattern, Lead Free* brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in. (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - Maximum Pressure (non shock): 400psi (27.6 bar) @ 210°F (99°C) WOG, 125psi (8.6 bar) @ 353°F (178.3°C) WSP. Model LFS777SI - Maximum Pressure (non shock): 400psi (27.6 bar) @ 150°F (66°C) 15psi (103 kPa) @ 250°F (121°C) WSP.

Specification

Body Material: Lead Free* cast copper silicon alloy
Connection Size: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Connection Type: Threaded and Solder Connections
Industry Standards: NSF 61 Annex G certified
Working Pressure: 3/8"–2"
Maximum Working Temperature: 353ºF (178ºC)

Technical specification

Unique ref.6840
Product familyWater Safety & Flow Control
Product groupValves for Liquid Services
TypeObject (single object)
Date of publishing2015-08-11
Edition number1

Links

Product urlhttp://www.watts.com/pages/_products_details.asp?pid=6840
Product certificationhttp://www.watts.com/pages/_products_details.asp?pid=6840#approvals

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Valves

Region availability

North America
Canada
United States
