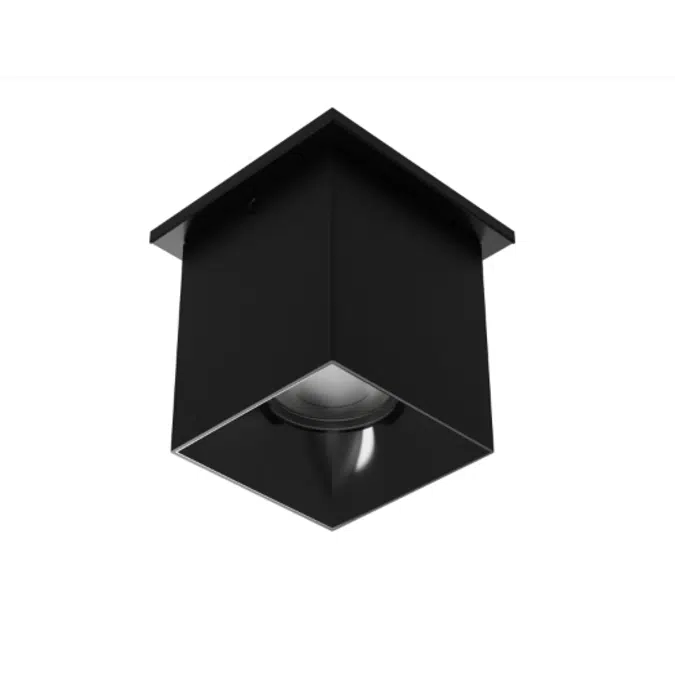

Zoron – 5CCT Square Ceiling Mount

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek)

Zoron – 5CCT Square Ceiling Mount

Features

Delivered Lumens: Up to 1320lm
CBCP: Up to 3585
CCT: 2700K/3000K/3500K/4000K/5000K
CRI: 90
Power: 15W
Input: 120-277 VAC, 50/60Hz
ELV Dimming: 100-5%
0-10V Dimming: 100-5%
TRIAC Dimming: 100-5%
Rated Life: 50000 Hours
Construction: Die-cast aluminum
5-CCT Switchable between 2700K and 5000K
Suitable for indoor or outdoor use
Low glare regressed trim with 25°+ shielding angle
Interchangeable trim available in 7 finishes
ELV/ TRIAC/0-10V Dimming Control
Universal Input 120-277VAC
Driver concealed within the fixture

Specification

Specifications

Order Number: C4ST-NCS-BKBK

Model	Beam	Color Temp & CRI	Lumens	CBCP	Finish
C4ST	N - 25°	CS - 2700K/3000K/3500K/4000K/5000K - 90	1185	3485	BKBK - Black/Black
	F - 45°				BKCH - Black/Chrome
					BKGL - Black/Gold
					BKHZ - Black/Haze
					BKWT - Black/White
					PBK - Arc Black
					PWT - Arc White
					WTBK - White/Black
					WTCH - White/Chrome
					WTGL - White/Gold
					WTHZ - White/Haze
					WTWT - White/White

Technical specification

Unique ref.zoron-square-ceiling-mount
Product familyZoron Cube Architectural
Product groupCeiling Mounted
TypeObject (single object)
Date of publishing2026-04-11
Edition number1

Links

Product urlhttps://waclighting.com/product/zoron-5cct-3/
Installation instructionshttps://waclighting.com/storage/waclighting-images/inst_sheet/Zoron_CeilingMount_INSSHT.pdf
Technical descriptionhttps://waclighting.com/storage/waclighting-images/specsheet_pdf/C4ST_SPSHT.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryLighting - Ceiling Mounted
Uniclass 2015 CodeEF_70_80
Uniclass 2015 DescriptionLighting
CSI MasterFormat 2014 Code26 50 00
CSI MasterFormat 2014 TitleLighting
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures
