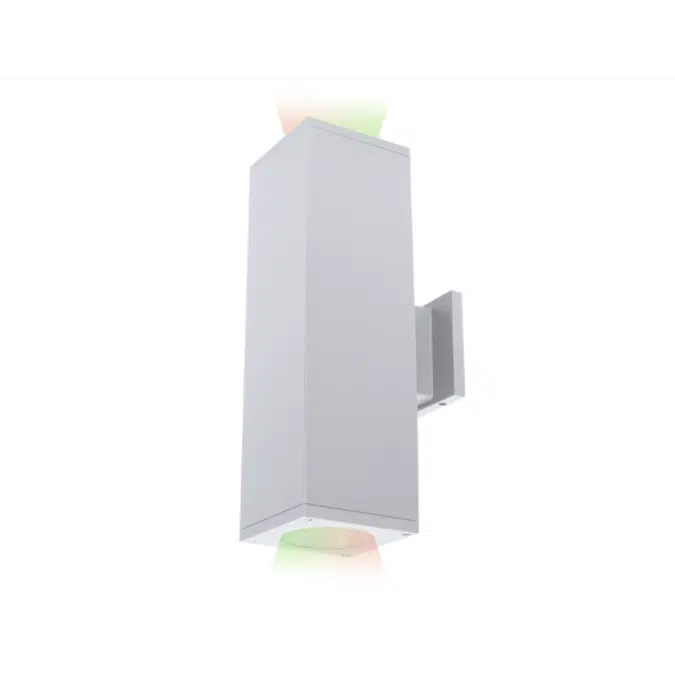

Cube Architectural - 5" Color Changing Double Wall Mount

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek)

Cube Architectural - 5" Color Changing Double Wall Mount

Features

Delivered Lumens: Up to 1515lm
CBCP: Up to 7555
CCT: R, G, B, 1800K - 6500K
CRI: 90
Power: 40W
Input: 120-277 VAC, 50/60Hz
DMX Dimming: 100-1%
Rated Life: 50000 Hours
Construction: Die-cast Aluminum
High performance exterior rated LED wall mounted light
Full color gamut control through gradients of saturated colors from 1-100%
Tunable White (CCT) Range: 1800-6500K
DMX512-A control with commissioning via RDM
Fixture can be installed up or downward to alter light distribution
Driver concealed within the fixture
Can be mounted on wall in all orientations

Specification

Specifications

Order Number: Option Not Available

Model & size	Beam	light direction	Color Temp & CRI	Lumens	CBCP	Finish
DC-WD05 - 5"	S - 18°	A - Away fr wall	CC - R, G, B, 1800K - 6500K - 90			BK - BLACK
	N - 30°	B - Twrds wall				BZ - BRONZE
	F - 50°	C - One Side Ea.				GH - GRAPHITE
	F - 90°	S - Str Up/Down				WT - WHITE

Technical specification

Unique ref.cube-architectural-5-color-changing-double-wall-mount
Product familyCube Architectural
Product groupWall Mounted
TypeObject (single object)
Date of publishing2026-04-11
Edition number1

Links

Product urlhttps://waclighting.com/product/cube-architectural-18/
Installation instructionshttps://waclighting.com/storage/waclighting-images/inst_sheet/DC-WD05-CC_INSSHT.pdf
Technical descriptionhttps://waclighting.com/storage/waclighting-images/specsheet_pdf/DC-WD05-CC_SPSHT.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryLighting - Wall Mounted
Uniclass 2015 CodeEF_70_80
Uniclass 2015 DescriptionLighting
CSI MasterFormat 2014 Code26 50 00
CSI MasterFormat 2014 TitleLighting
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures
