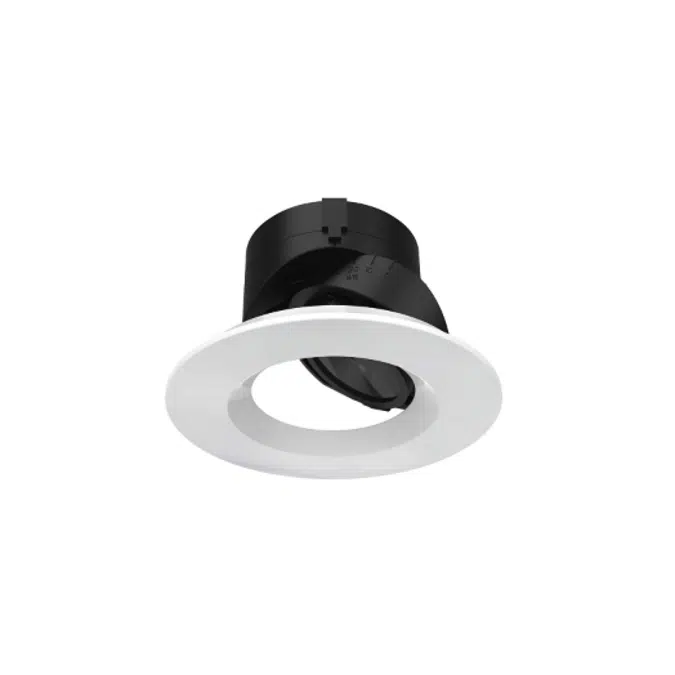

Aether 2" Round Adjustable Trim Downlight

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek)

Aether 2" Round Adjustable Trim Downlight

Features

Delivered Lumens: Up to 1390lm
CBCP: Up to 8810
CCT: 2700K, 3000K, 3500K, 4000K
CRI: Up to 90
Power: 9W, 15W
Rated Life: 50000 Hours
Construction: Die-cast aluminum trim with die-cast aluminum heat sink
Shallow housing under 2in depth
Single spot light source

Specification

Specifications

Order Number: R2ARAT-S827-BK

Model	Beam	Color Temp & CRI	Lumens	CBCP	Finish
R2ARAT	S - 15°, 16° (L)	827 - 2700K - 85	835	8045	BK - Black
	N - 26°, 28° (L)	830 - 3000K - 85			BKWT - Black/White
	F - 40°	835 - 3500K - 85			HZWT - Haze/White
		840 - 4000K - 85			LBK - Lensed Black
		927 - 2700K - 90			LBKWT - Lensed Black/White
		930 - 3000K - 90			LHZWT - Lensed Haze/White
					LWT - Lensed White
					WT - White

Technical specification

Unique ref.aether-2-round-adjustable-trim
Product familyAether 2"
Product groupCeiling Mounted
TypeObject (single object)
Date of publishing2026-04-14
Edition number1

Links

Product urlhttps://waclighting.com/product/aether-2-3/
Technical descriptionhttps://waclighting.com/storage/waclighting-images/specsheet_pdf/R2ARAT_SPSHT.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryLighting - Ceiling Mounted
Uniclass 2015 CodeEF_70_80
Uniclass 2015 DescriptionLighting
CSI MasterFormat 2014 Code26 50 00
CSI MasterFormat 2014 TitleLighting
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures

Region availability

North America
Anguilla
Antigua and Barbuda
Aruba
Barbados
Belize
Bermuda
British Virgin Islands
Canada
Caribbean Netherlands
Cayman Islands
Collectivity of Saint Martin
Costa Rica
Cuba
Curaçao
Dominica
Dominican Republic
El Salvador
Greenland
Grenada
Guadeloupe
Guatemala
Haiti
Honduras
Jamaica
Martinique
Mexico
Montserrat
Nicaragua
Panama
Puerto Rico
Saint Kitts and Nevis
Saint Lucia
Saint Pierre and Miquelon
Saint Vincent and the Grenadines
Saint-Barthélemy
Sint Maarten
The Bahamas
Trinidad and Tobago
Turks and Caicos Islands
U.S. Virgin Islands
United States

Similar products

Image for Tube - 5" Single & Double Wall Light - 3000K

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek) Tube - 5" Single & Double Wall Light - 3000K

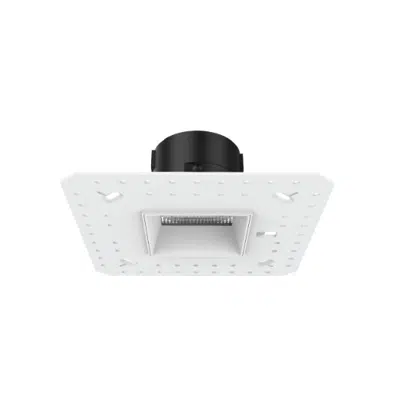

Image for Aether 2" Square Downlight Trimless Downlight

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek) Aether 2" Square Downlight Trimless Downlight

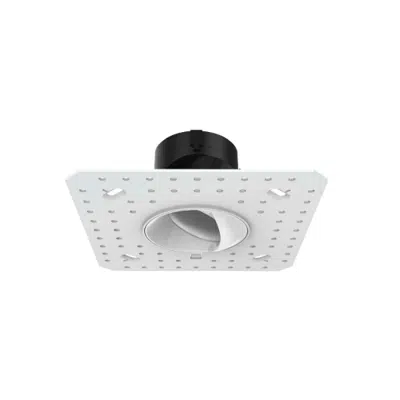

Image for Aether 2" Round Wall Wash Trimless Downlight

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek) Aether 2" Round Wall Wash Trimless Downlight

Image for Tube Architectural - 8" Double Wall Mount

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek) Tube Architectural - 8" Double Wall Mount

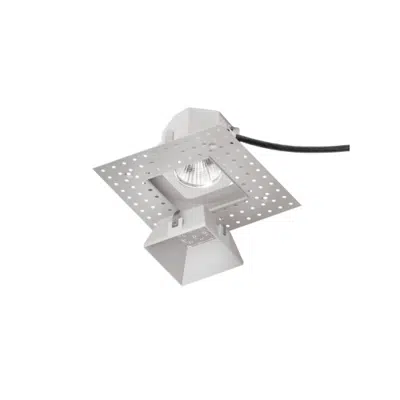

Image for Aether 3.5" Square Trimless Downlight

WAC Group (WAC Architectural, WAC Lighting, Modern Forms, & Schonbek) Aether 3.5" Square Trimless Downlight

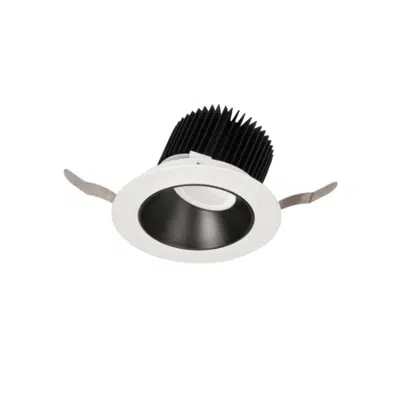

Image for Aether 3.5" Round Wall Wash Trim Downlight
