VM BUILDING SOLUTIONS

BE_VMBSO_Membrane roofing Tiplon EPDM

Tiplon is a membrane with internal reinforcement.

Available with pre-tape. Top range

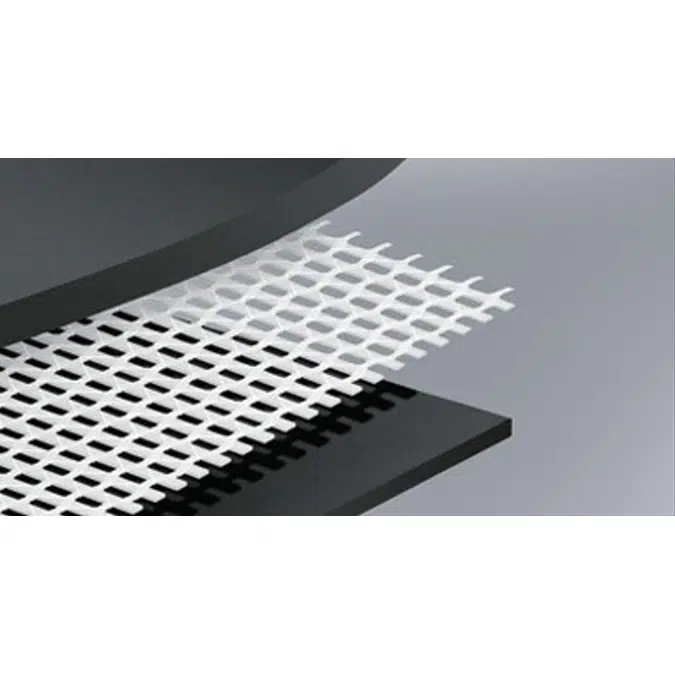

Tiplon is a highly durable EPDM membrane, available in 1.5 mm or 1.8 mm thickness, for flat roof waterproofing. The membrane consists of three layers: an EPDM top layer, a strong polyester scrim reinforcement, and a full EPDM bottom layer. This internal reinforcement ensures stability and extremely high tear resistance. It is precisely because Tiplon is so thick that it offers excellent puncture resistance

Specification

Thickness: 1,5 & 1,8 mm
Width: 3,05 m
Length: 15,25 m
Surface mass (weight/m²): For thickness 1,5mm: 1,84 kg/m² & for thickness 1,8mm: 2,09 kg/m²

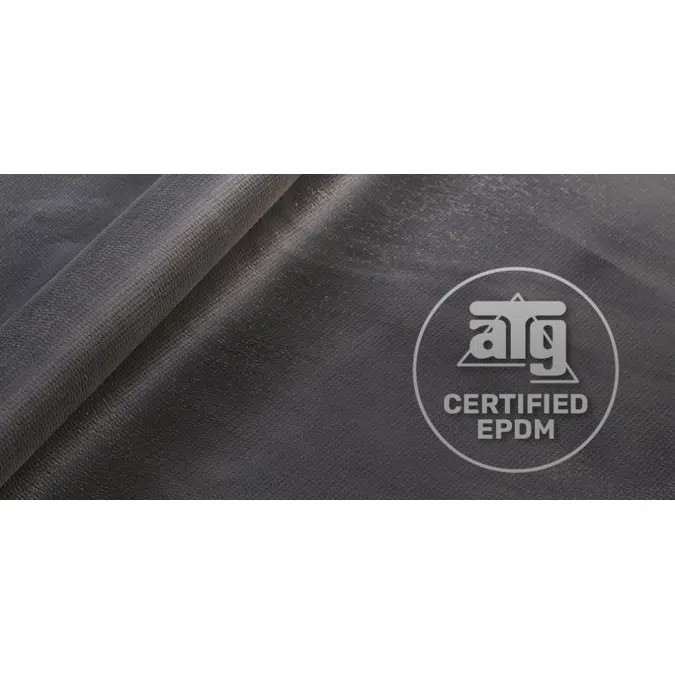

ATG 1985
Support:
*Brickwork,
*Cellular concrete,
*Wood and wood derivatives,
*Insulation (Backed PIR surfacé, Backed PUR, backed mineral wool),
*Old bitumen membranes

Technical specification

Unique ref.BE_TIPLON_EPDM
Product familyROOF INSULATION
Product groupEPDM Collection
TypeAssembly (multiple objects)
Date of publishing2026-01-27
Edition number1
Height (mm)15250
Width (mm)3050
Depth (mm)1.5

Links

Product urlhttps://www.vmbuildingsolutions.com/nl-be/epdm/tiplon-epdm
Installation instructionshttps://assets.fedrusinternational.be/gen/Z_EPDM/Tiplon/Brochures/FR-FR/Manuel%20Tiplon%202019.pdf
Product certificationhttps://assets.fedrusinternational.be/gen/Z_EPDM/Tiplon/Certifications/BE-FR/ATG1985F.pdf
Technical descriptionhttps://assets.fedrusinternational.be/gen/Z_EPDM/Tiplon/Brochures/BE-FR/Tiplon%20brochure%20FR.pdf

Related

Designed inFrance
Manufactured inUnited States

Classification

BIMobject CategoryBuilding Materials - Waterproofing & Membranes
IFC classificationRoof
UNSPSC nameRoofing membranes
UNSPSC code30151505
Uniclass 2015 CodePr_25_57_51_27
Uniclass 2015 DescriptionEthylene propylene diene monomer (EPDM) geomembranes
CSI MasterFormat 2014 Code07 50 00
CSI MasterFormat 2014 TitleMembrane Roofing
OmniClass Number23-13 39 31
OmniClass TitleRoof Membranes
CSI UniFormat II CodeB3010
CSI UniFormat II TitleRoof Coverings

Region availability

Europe
France
