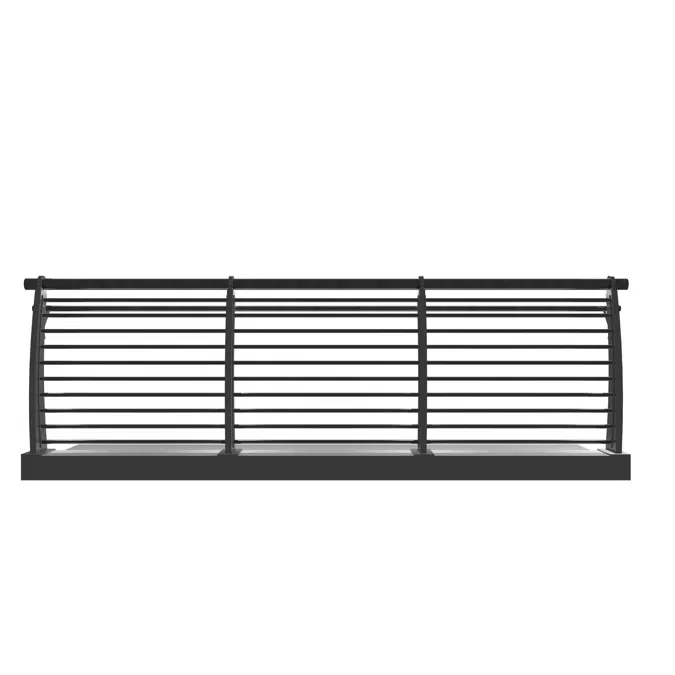

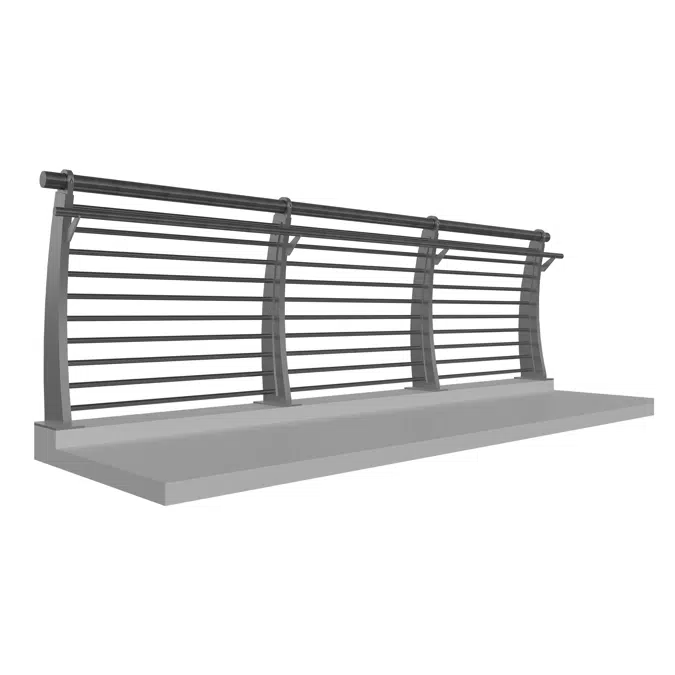

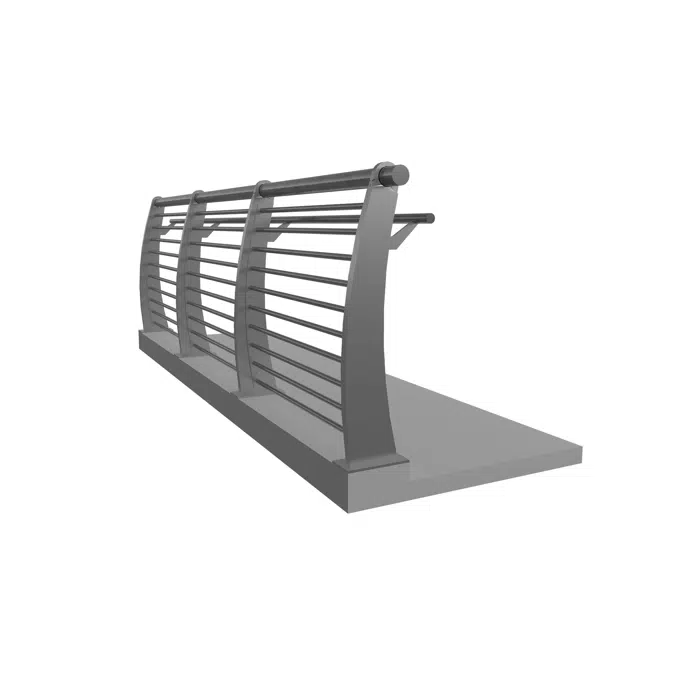

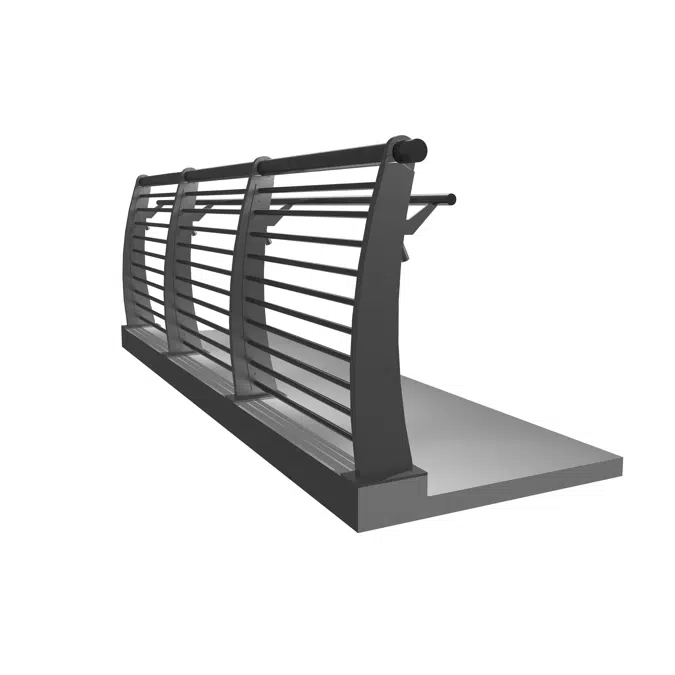

WAVE Multiline Railing System

The WAVE Railing System is purpose-built for high-traffic public spaces where durability, safety, and design must work seamlessly together. Featuring heavy-duty posts, multi-line infill, and an oversized top rail, the system is engineered beyond code requirements to withstand the demands of continuous public use. The design intentionally guides pedestrian traffic away from the edge of fall and the line of railing, enhancing safety in high-volume environments. Intentionally overbuilt for long-term performance, WAVE delivers both structural integrity and architectural presence.

Available in stainless steel or aluminum—with a stainless steel top rail for enhanced wear resistance—the system is offered in #6 satin or #8 mirror finish stainless steel, as well as AAMA 2604 or AAMA 2605 compliant powder-coated finishes. Optional Linear, Pod, or Sconce LED iRail lighting is available to elevate visibility and visual impact.

VIVA's multiline infill is a perfect choice for clean modern designs of today. Stainless steel 1/2" tubing rods form a continuous and smooth infill option. The fluid design works well with curved areas as well.

Specification

- POST MATERIAL
Stainless Steel (304 or 316) - #6 Satin
Aluminum
- POST FINISH
- #6 Satin (SS)
- CeraShield (Recommended) (Aluminum)
- Powder Coat
- PVDF
VIVA Standard: All brackets, spiders & accessories are #6 satin SS and uncoated (coated finish
available upon request).
- POST SIZE/SPACING
2X2-1/4" @ 4'-0" max. O.C.
4'-0" max. for Multiline.
Top or Core mount.
iRail Sconce option available, 25° tilt casting light off the railing path.
- MULTILINE INFILL MATERIAL
Stainless Steel (304 or 316)
Aluminum
- MULTILINE INFILL FINISH
#6 Satin (SS)
- CeraShield (Aluminum)
- Powder Coat
- PVDF
- MULTILINE INFILL SIZE/SPACING
4'-0" max. O.C.
TOP RAIL / HAND RAIL
- TOP RAIL / HAND RAIL MATERIAL
Stainless Steel Tube
Stainless Steel Tube with LED ²
Wood (Red Oak, Cherry or Maple) ³
Wood (Red Oak, Cherry or Maple) with LED
- TOP RAIL / HAND RAIL FINISH
- #6 Satin (Recommended) (SS Tube, SS Tube with LED)
- CeraShield
- Powder Coat
- PVDF
Unstained (Wood)
- TOP RAIL / HAND RAIL SIZE / SPACING
Ø1-1/2" or Ø2" for Hand Rail
Ø1-1/2", Ø2" or 2"x1" Rectangular tube for Top Rail
Ø1-1/2" with LED LINEAR, Ø1-1/2" or Ø2" with LED POD
Ø2" for Hand Rail
Ø2" with LED LINEAR

(1) IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.
(2) All LED LINEAR products are ETL certified; ETL mark is proof of product compliance. North American safety standard.
(3) Other species available upon request.
