Villa Kultur - Side hung double window

Villa Kultur - Side hung double window

Villa Kultur - Side hung double window

Villa Kultur - Side hung double window

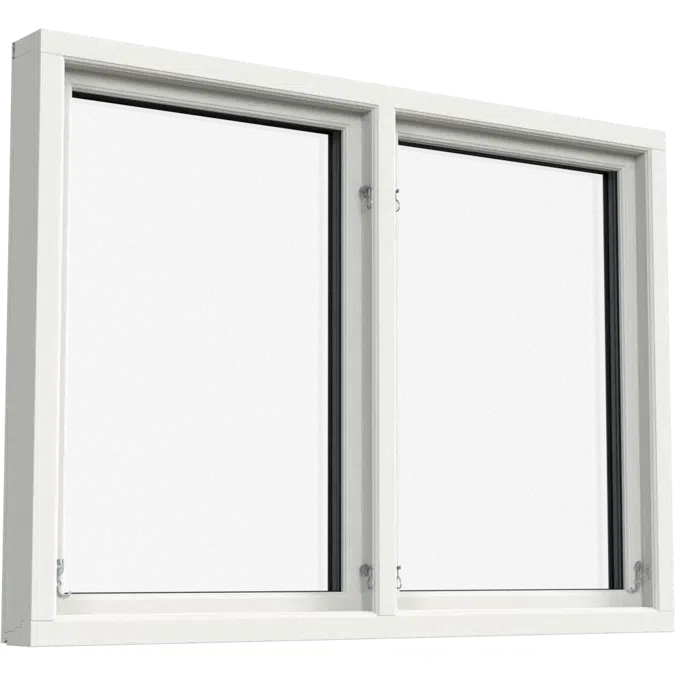

A double side-hung window with classic hinges and traditional retro profile. Double energy glazing and a frame made of finger-jointed, knot-free impregnated pine are covered with an external aluminum cladding.

Specification

- Frame: Finger-jointed knot-free impregnated pine
  Common profile on internal frame and sash
- Colour Internal: NCS-S 0502-Y (White) Gloss 25
- Color External: NCS-S 0502-Y (White) Gloss 30
- Glass: 3-glass double energy + argon + warm edge (white)
- U-Value: 1.1
- G-Value: 53%
- LT-Value: 74%
- Hardware: Window hooks and ventilation fittings in old-fashioned style
- Hinges: Electrogalvanized steel (white painted)
- Glazing strip: Part of the aluminum cladding construction
- Frame screw: Pre-drilled 14 mm (Frame screw not included)
- Frame depth: 115mm
- Frame outer dimensions: Module dimensions minus 20mm
- Rubber strip around glass cassette: Black

Technical specification

Unique ref.side-hung-double-window
TypeObject (single object)
Date of publishing2026-03-11
Edition number1
Depth (mm)115

Links

Product urlhttps://www.villafonster.se/produkt/sidohangt-2-luft-fonster/3064

Related

Material mainGlass
Material secondaryWood
Designed inSweden
Manufactured inLatvia

Classification

BIMobject CategoryWindows - Single Hung Windows
IFC classificationWindow
Uniclass 2015 CodeAc_15_50_25
Uniclass 2015 DescriptionDoors, windows and glazing surveying
CSI MasterFormat 2014 Code08 51 13
CSI MasterFormat 2014 TitleAluminum Windows

Region availability

Europe
Sweden
