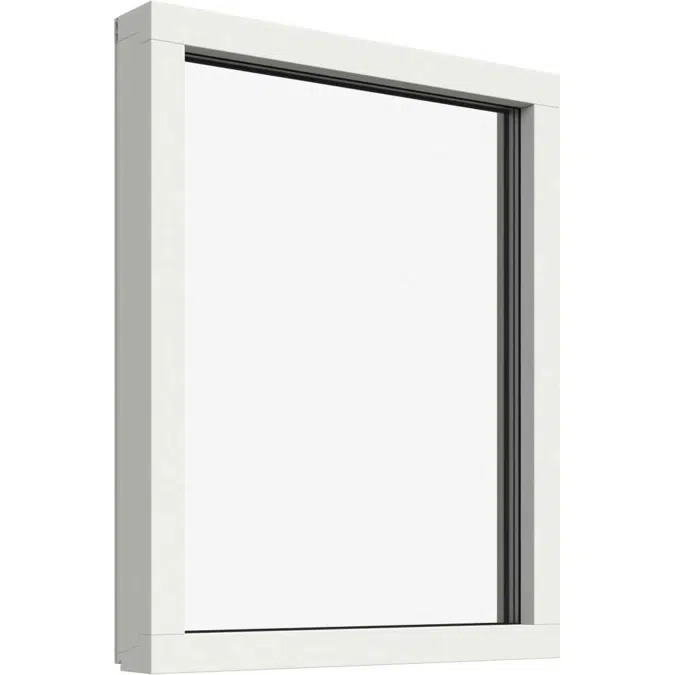

Villa Original - Fixed frame window

Villa Original - Fixed frame window

Villa Original - Fixed frame window

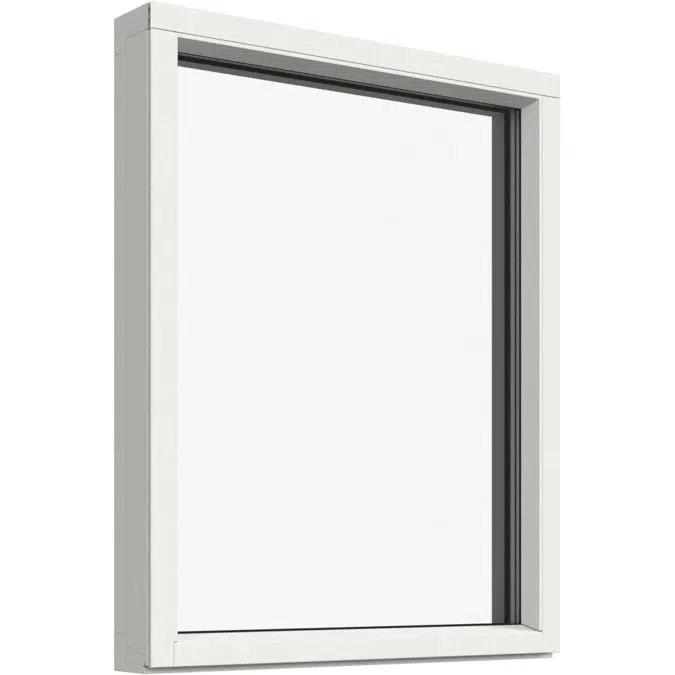

Villa Original framefast window. Double energy glazing and a frame made of finger-jointed, knot-free impregnated pine are covered with an external aluminum cladding.

Specification

- Frame: Finger jointed knot-free impregnated pine
- Color Interior: NCS-S 0502-Y (White) Gloss 25
- Color Exterior: NCS-S 0502-Y (White) Gloss 70
- Glass: 3-glass double energy + argon
- NOTE! Tempered glass on module height 16 and larger
- U-Value 1.1
- G-Value 53%
- LT-Value 74%
- Glazing strip: Part of the aluminum cladding construction
- Sound value: 31 db
- Frame screw: Pre-drilled 14 mm (Frame screw not included)
- Frame depth: 115 mm
- Frame outer dimensions: Module dimensions minus 20mm
- Rubber strip around glass cassette: Black

Technical specification

Unique ref.fixed-frame-window
TypeObject (single object)
Date of publishing2026-03-11
Edition number1
Depth (mm)115

Links

Product urlhttps://www.villafonster.se/produkt/fast-fonster-aluminiumbeklatt/3123

Related

Material mainGlass
Material secondaryWood
Designed inSweden
Manufactured inLatvia

Classification

BIMobject CategoryWindows - Fixed Frame Windows
IFC classificationWindow
Uniclass 2015 CodeAc_15_50_25
Uniclass 2015 DescriptionDoors, windows and glazing surveying
CSI MasterFormat 2014 Code08 51 13
CSI MasterFormat 2014 TitleAluminum Windows

Region availability

Europe
Sweden
