LDM136-151C 136” All-in-One Direct View LED Display

The ViewSonic LDM136-151C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance for business presentations, corporate communications, and collaborative environments. Featuring Full HD (1080p) resolution, 600 nits of brightness, a 10,000:1 contrast ratio, and dual 30W speakers, it delivers sharp visuals, vibrant color, and powerful sound for impactful presentations. Ideal for mid to large conference rooms, C-level boardrooms, and corporate lobbies, the display is built with Chip-on-Board (COB) technology for enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for corporate and educational environments.

Key Features

Expansive 136-inch display with 600 nits brightness and dual 30W speakers delivers vivid visuals and powerful sound for any space
Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
All-in-One integration simplifies installation by combining power, control, image stitching, and display
Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync

Specification

SPECIFICATION
Screen Size: 136"
Display Area (mm): 3000 (H) x 1687.5(V)
Native Resolution: 1920x1080
Panel Technology: Direct view LED
LED Package Type: Flip Chip COB
Pixel Pitch (mm): 1.56
Brightness (max.): 600 nits (100 levels adjustable)
Contrast Ratio (typ.): 10000:1
Color Temperature: 3000K -10000K
Orientation: Landscape
Viewing Angles (typ.): H = 170, V = 170
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 32GB
(26GB available storage)
Embedded OS: Android 9.0
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
Horizontal Frequency: 31K-94kHz
Vertical Scan Rate: 56-85Hz
INPUT
HDMI: 4
(HDMI 2.0/HDCP 2.2)
(internal x3, external x1)
USB Type A: 3
(USB3.0 x1, USB2.0 x2)
RJ45 Input: 3
(internet x2, control x1)
IR in (3.5mm): 1
Wi-Fi Input: 2.4G/5G Hz
USB Type C: 1
(data only)
OUTPUT
HDMI out: 1
(HDMI 2.0/HDCP 2.2)
(internal x1)
Speaker: 30Wx2
Audio out (3.5mm): 2
S/PDIF: 1
USB Type A (Power): Shared with USB A input
(USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
USB Type C (Power): Shared with USB Type C input
(5V/1A x1)
CONTROL
RJ45 (LAN control): 1(shared with internet)
USB Type A (Services): 1(shared with USB A input)
RS232 (DB 9-pin female): 1
IR Receiver: 1
OTHERS
Power Supply Voltage: 100-240V ~ 50/60Hz
(vary by country)
Power Consumption (W/unit): 400W (typ), 1095W (max) < 0.5W (Hibernate)
Operating Temperature: 0~40℃
Total LED Module Quantity: 200
Ingress Protection Rating: IP54(Front)
Impact Protection Rating: IK08(Front)
Net Weight: 372.58 lbs
(169 kg)
Gross Weight: 599.66 lbs
(272kg)

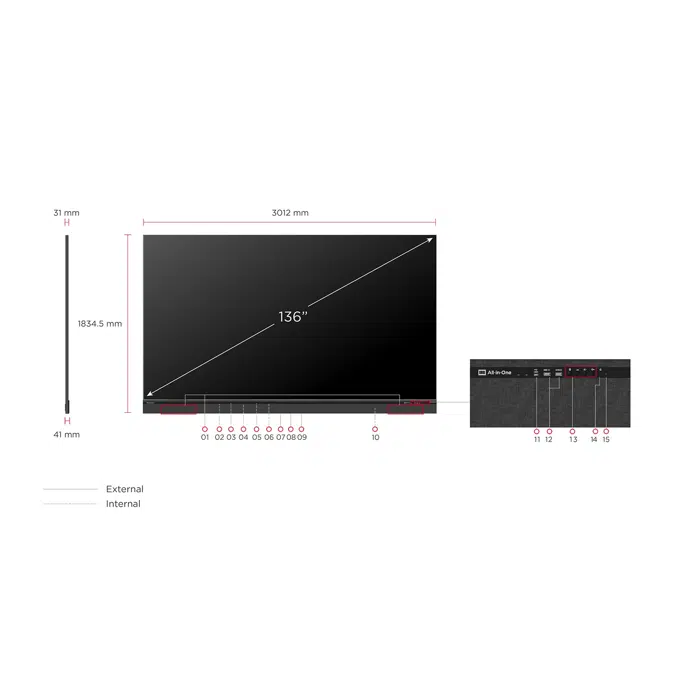

Product Dimensions (WxHxD): 118.58 x 72.22 x 1.61 inches
(3012 x 1834.5 x 41mm)
Product Dimensions (WxHxD) with wall mount: 118.58 x 72.22 x 2.35 inches
(3012 x 1834.5 x 59.8mm)
Packing Dimensions (WxHxD): 77.95 x 40.16 x 48.03 inches
(1980 x 1020 x 1220mm)
STANDARD ACCESSORIES
Power Cord: 1
LAN Cable (Cat 5E): 1
IR Extender Cable: 1
Remote Control: 1
Installation Guide: 1
Wall Mount: 1
Spare Parts: LED module x14
2 in 1 hub board x1
Receiving board x1
Maintenance Tool: LD-MK-004 x1
LD-MK-006 x1
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-004
LD-MK-006
Floor Stand: LD-STND-009

Technical specification

Unique ref.viewsonic_ldm136-151c-all-in-one-direct-view-led-display
Product familyDisplays
Product groupDirect View LED Displays
TypeObject (single object)
Date of publishing2026-03-10
Edition number1
Height (inches)71.1
Width (inches)118.9
Depth (inches)1.4

Links

Product urlhttps://www.viewsonic.com/global/products/sheet/LDM136-151C
Installation instructionshttps://www.viewsonic.com/global/products/direct-view-led/LDM136-151C#downloads
Instruction videohttps://youtu.be/yn54zbXpTAA
Technical descriptionhttps://www.viewsonic.com/global/products/sheet/LDM136-151C

Designed inTaiwan
Manufactured inChina
Weight Net (Lbs)77.3

Classification

BIMobject CategoryElectronics - Visual - TVs
IFC classificationObject
Uniclass 2015 CodePr_75_75_15_24
Uniclass 2015 DescriptionDisplay screen monitors
CSI MasterFormat 2014 Code27 41 13
CSI MasterFormat 2014 TitleArchitecturally Integrated Audio-Video Equipment
OmniClass Number23-37 19 13
OmniClass TitleLiquid Crystal Display (LCD) Video Monitors
CSI UniFormat II CodeE
CSI UniFormat II TitleEQUIPMENT & FURNISHINGS
