VELUX roof windows

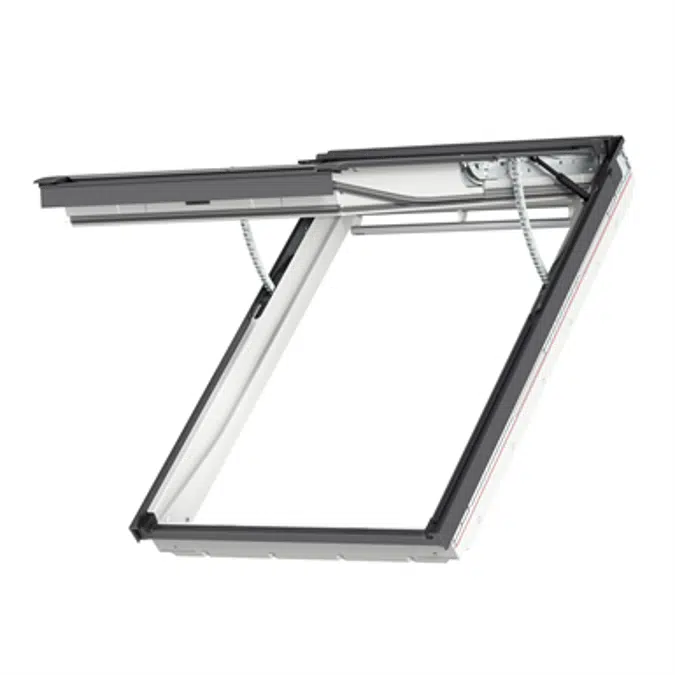

Electric roof window - tophung - GPU

Name: Electric roof window - tophung - GPU
Rating: 4.3 (7 reviews)

4.3(7 reviews)

GPU is an electrically operated top-hung roof window that can be installed on roof pitches from 15-65°. Operation is via a simple convenient wall switch, whilst a rain sensor ensures the window closes automatically in the case of rain.

• The electrical top-hung window provides a panorama view combined with convenient electrical operation.
• The wall switch is pre-paired to work with your window right out of the box.
• Entrapment control detects objects in the path of the window.
• The motors are hidden in the side frame and totally invisible from view.
• Easily open and close the roof window – even with furniture placed underneath.
• Mains-powered to allow for complete, seamless integration of your roof window into your home

Compatible with VELUX ACTIVE with NETATMO indoor climate control for a healthier home, automatically. VELUX ACTIVE also enables control via your smartphone or voice control assistant.

The frame and sash are made of high-quality moulded polyurethane around a core of thermally modified timber with a white lacquer finish. Therefore giving a maintenance free finish.

Externally the window has maintenance-free cover parts.

Window Sizes :	External frame W x H : mm	Effective daylight areas : m²	Geometric free area (manual operation ):m²	Geometric free area (remote operation ) :m²
FK06	660 x 1178	0.47	0.60	0.60
FK08	660 x 1398	0.58	0.72	0.72
MK06	780 x 1178	0.59	0.72	0.72
MK08	780 x 1398	0.72	0.87	0.87
PK06	942 x 1178	0.75	0.89	0.89
PK08	942 x 1398	0.91	1.08	1.08
SK06	1140 x 1178	0.95	1.09	1.09
SK08	1140 x1398	1.14	1.32	1.32

VELUX roofwindows roofwindow roof windows roof window skylight skylights

Specification

Background Ventilation (via Ventilation Flap - based on double glazed windows):

Ventilation Capacity:	at 4Pa :	at 8Pa :	at 10Pa :	at 20Pa :
FK06	4.8 l/s	6.9 l/s	7.8 l/s	11.3 l/s
FK08	4.8 l/s	6.9 l/s	7.8 l/s	11.3 l/s
MK06	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
MK08	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
PK06	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
PK08	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
SK06	8.5 l/s	12.3 l/s	13.9 l/s	20.1 l/s
SK08	8.5 l/s	12.3 l/s	13.9 l/s	20.1 l/s

Ventilation :	Equivalent Area : mm²	Geometrical Free Area : mm²
FK**	3700	3100
MK**	3700	3600
PK**	4600	5800
SK**	5600	9100

Finishes:

Interior - White maintenance-free
Finished with polyurethane lacquer (NCS standard colour: S 0500-N, nearest RAL standard colour: 9003).

Exterior - Maintenance-free cover parts.
Aluminium, dark grey (NCS standard colour: S 7500-N, nearest RAL standard colour: 7043).

Technical specification

Unique ref.GPU-INTEGRA
Product familyTop hung
Product groupRemote operation
TypeObject (single object)
Date of publishing2020-01-30
Edition number2

Links

As builthttps://installationdetail.velux.com/
Product urlhttps://www.velux.co.uk/technical-library/sloped-roof-windows/standard-windows/solar-and-electric/gpuelectric
Installation instructionshttps://contenthub.velux.com/api/public/content/product-guide_454412?v=1e7b0665
Instruction videohttps://www.youtube.com/@VELUXsimulationtools
Product certificationhttps://www.velux.com/ce-marking
Technical descriptionhttps://contenthub.velux.com/api/public/content/fd5f1-3416f-b7448_downloadOriginal?v=6e0541b0

Material mainPolyurethane
Material secondaryAluminium
Designed inDenmark
