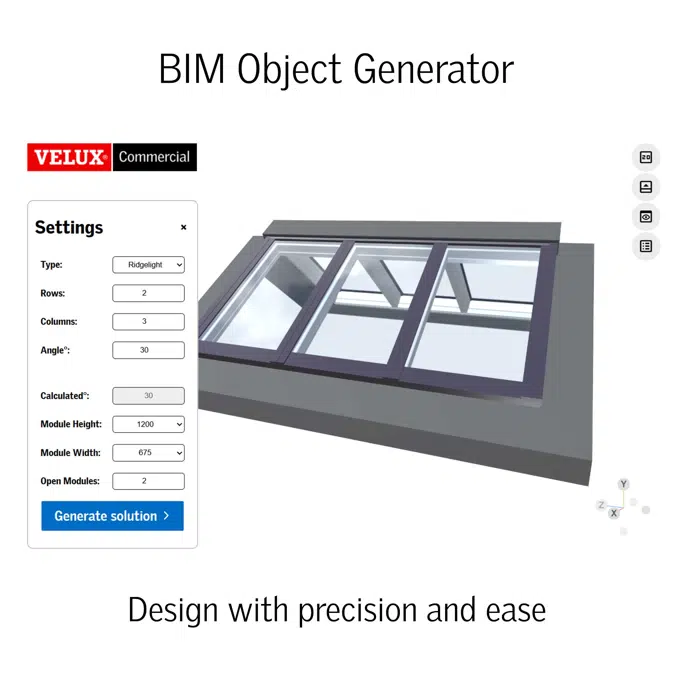

BIM Object Generator for Modular Skylights

OPEN THE LINKS SECTION BELOW TO ACCESS THE TOOL ONLNE!

Our BIM Object Generator is a powerful, user-friendly tool that simplifies your design process. With just a few clicks, you can customise Modular Skylight objects to match your exact project specifications.

Key Benefits

Instant 3D view: View your configured model in 3D, without the need to generate a BIM file.

BIM objects: Download ready-to-use BIM models by instantly generating a Revit file, for seamless integration into your project workflow.

Precision and detail: Each BIM object comes with accurate data and detailed section drawings, giving you all the technical information you need at your fingertips.

Intuitive interface: A clean, simple design ensures a smooth user experience from first click to final file.

Revit Plug-in
Our easy-to-install Revit Plug-in adds a new "VELUX Commercial" tab to your toolbar, giving you direct access to the Modular Skylights (VMS) BIM object generator. With just a click on your desired product's icon, you can access the BIM generator directly from Revit. See installation steps in the Specification section.

Explore the possibilities with our BIM Object Generator and bring your designs to life!

Specification

The Revit plug-in adds a ribbon button that links directly to a product configurator, enabling fast and intuitive BIM object generation (and more) within a user-friendly environment.
Installation steps:
1. Download the setup file and run the installer. Follow the on-screen instructions to complete the installation.
2. After installation, open Autodesk Revit.
3. In the Revit ribbon, a new tab called VELUX will appear.
4. Click the button on the new ribbon tab to open the product configurator (Modular Rooflights or Modular Skylights) and start generating BIM objects quickly and easily.
